SIEMENS 3RV2021-1AA10 MOTOR PROTECTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV2021-1AA10
IMS Product Code: 2176634
Packaging: Sold Individually
Description:

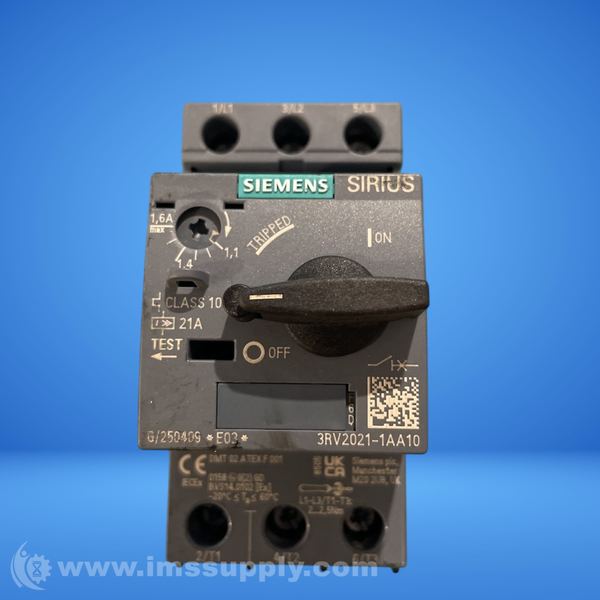

Siemens 3RV2021-1AA10 Motor Protector
A motor protection circuit breaker with adjustable current setting from 1.1 to 1.6 A, Class 10 overload trip characteristics, and thermomagnetic trip type.
Specifications
- AMP range: 1.1A to 1.6A
- Protection Class: 10
- Terminals: Screw
- Phase loss sensitive: Yes
- Mounting style: DIN Rail
- Type: Circuit Breaker / Motor Protector
- Frame Size: S0
- Setting Range for Thermal Overload Releases: 1.1 - 1.6
- Dimensions (HxWxD): 1.929 x 4.016 x 4.016 inches
- Weight: 0.705 lb
- Voltage: 690 VAC
- Current: 1.6 A
- Interrupt Rating: 100 kA
- Number of Poles: 3
- Trip Type: Thermomagnetic Trip
- Frequency: 50/60 Hz
- Connection Type: Screw Connection
- Wire Size: 16 to 12 AWG, 14 to 8 AWG
- Enclosure Rating: IP20
- Mounting Type: DIN Rail/Snap-On/Threaded Mounting
- Operating Temperature: -20 to 60 degrees C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
