SIEMENS 3RV2021-4BA40 MOTOR PROTECTION CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV2021-4BA40
IMS Product Code: 1903281
Packaging: Sold Individually
Description:

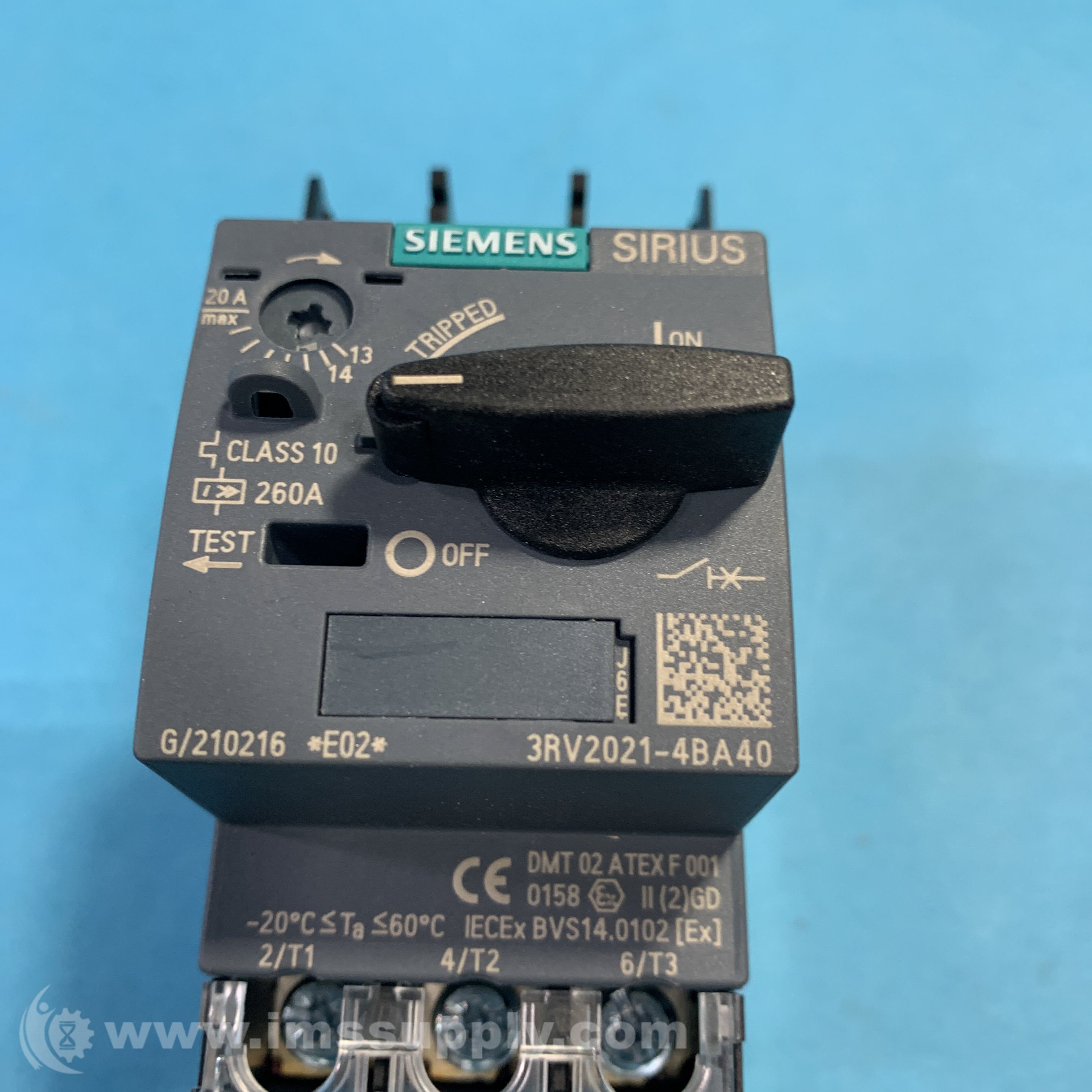

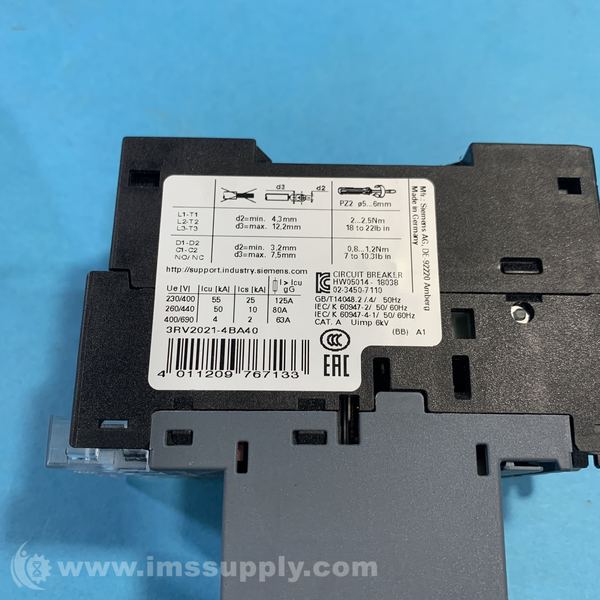

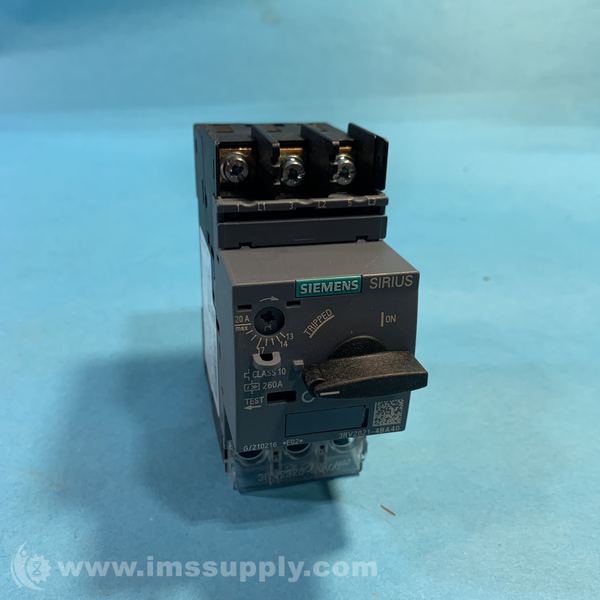

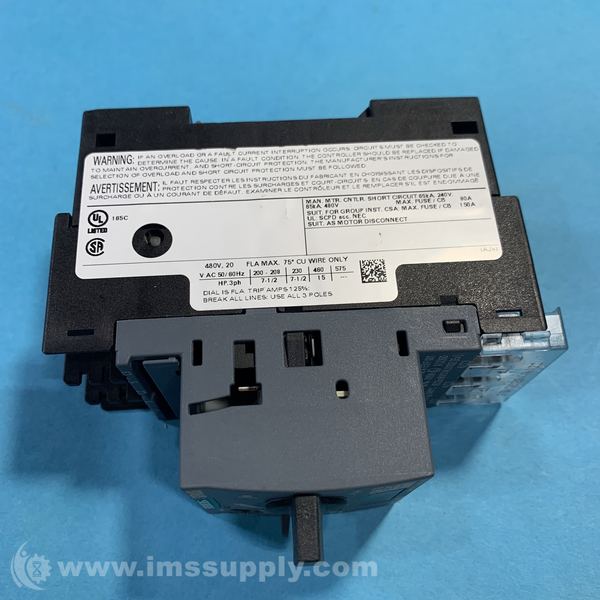

Siemens 3RV2021-4BA40 Motor Protection Circuit Breaker
Circuit breaker size S0 for motor protection, CLASS 10 A-release 13...20 A N-release 260 A ring cable lug connection Standard switching capacity
Specifications
- Manufacturer: Siemens
- Part Number: 3RV2021-4BA40
- Type: Circuit Breaker
- Size: S0
- Trip Class: CLASS 10
- Adjustable Current Range: 13 ... 20 A
- Instantaneous Short-Circuit Trip: 260 A
- Operating Voltage: 20 ... 690 V
- Operating Frequency: 50 ... 60 Hz
- Number of Poles: 3
- Power Loss: 10.5 W
- Insulation Voltage: 690 V
- Surge Voltage Resistance: 6 kV
- Mechanical Service Life: 100,000 cycles
- Electrical Endurance: 100,000 cycles
- Ambient Temperature: -20 ... +60 degrees C
- Relative Humidity: 10 ... 95%
- Mounting: Screw and snap-on mounting onto 35 mm DIN rail
- Dimensions: 97 mm x 45 mm x 97 mm
- Connection Type: Ring cable lug connection, screw-type terminals
- Tightening Torque: 2 ... 2.5 N.m
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
