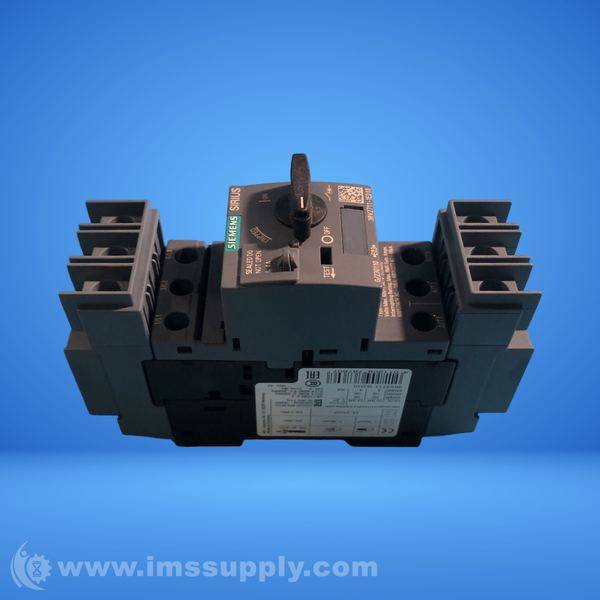

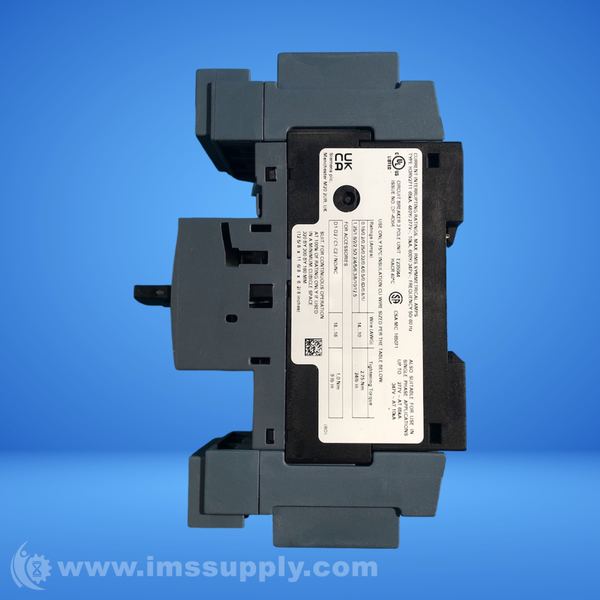

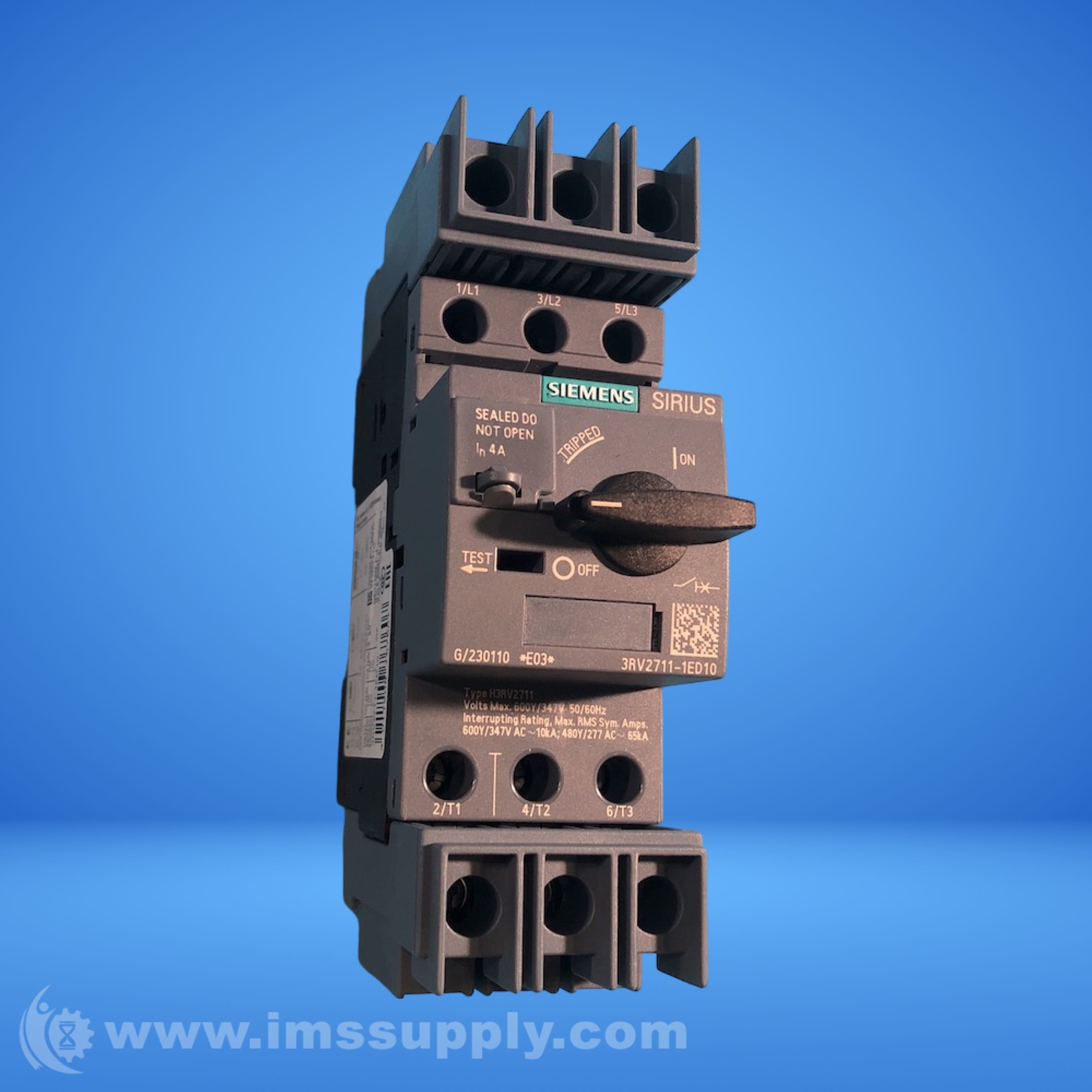

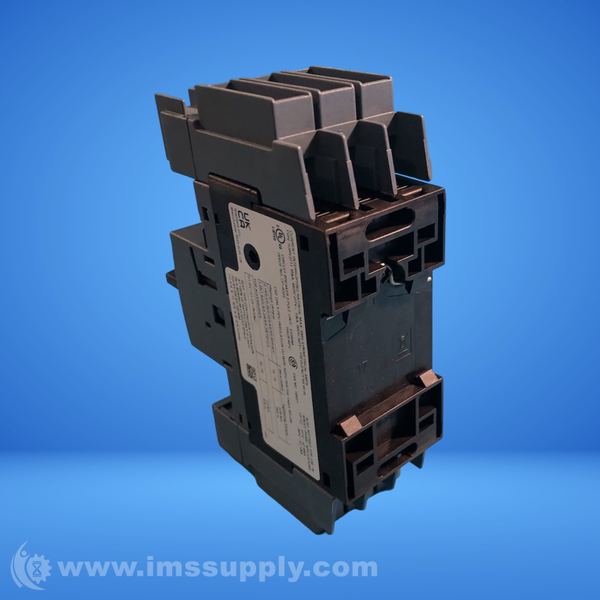

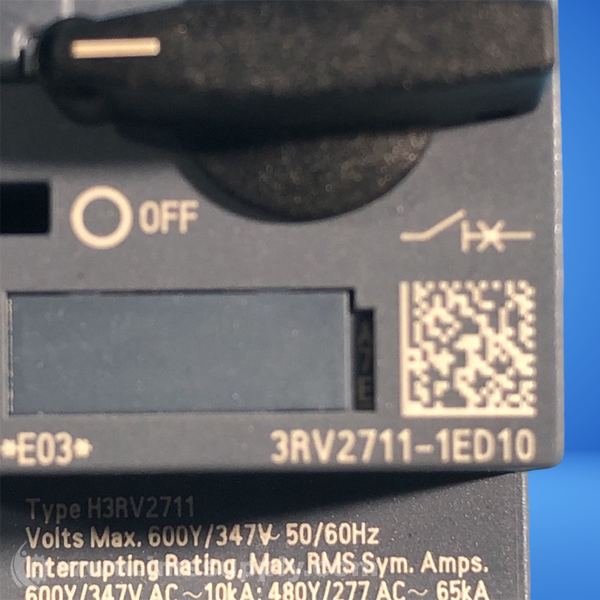

SIEMENS 3RV2711-1ED10 MOTOR PROTECTION CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV2711-1ED10
IMS Product Code: 2044838
Packaging: Sold Individually
Description:
Siemens 3RV2711-1ED10 Motor Protection Circuit Breaker
SIRIUS Motor Protection Circuit Breaker, 3 Pole, 3 Phase, Magnetic Trip, Screw Connection, DIN Rail Mounting
Specifications
- rated operational voltage: 690V
- rated current: 16A
- actuator type: Selector Switch
- amperage rating: 4
- connection type: Screw
- dimensions: 144 mm H x 45 mm W x 97 mm D
- enclosure type: IP20
- frame: S00
- frequency rating: 50 to 60
- interrupt rating: 4
- mounting type: DIN Rail
- number of poles: 3
- phase: 3
- power rating: 3
- series: 3RV2
- temperature rating: -20 to 60
- trip range: 52
- trip type: Magnetic
- voltage rating: 690
- wire size: 14
- country of manufacture: DE

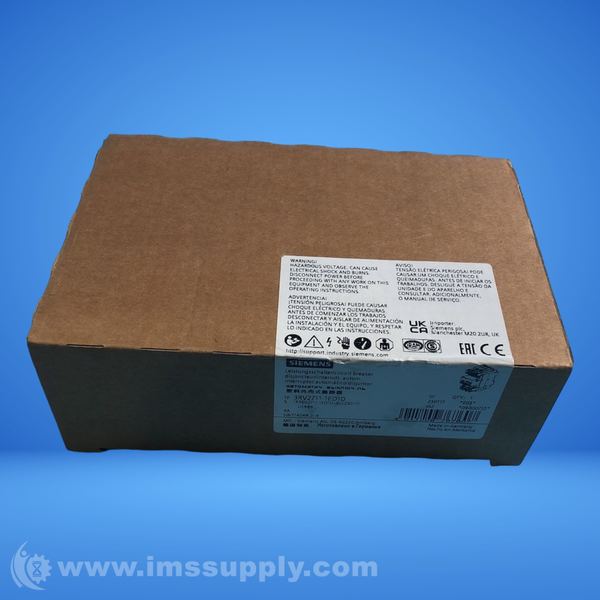

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 9 hours and 24 minutes.
