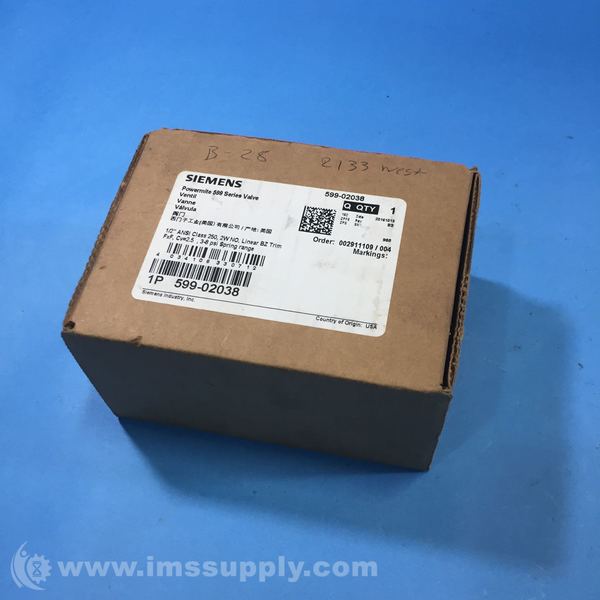

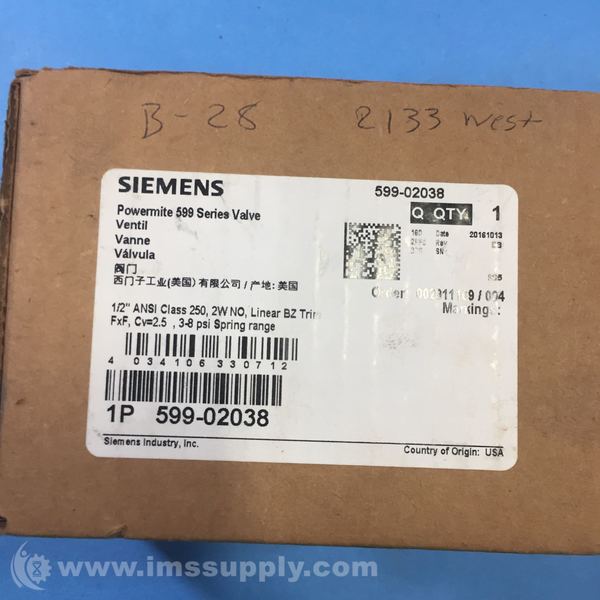

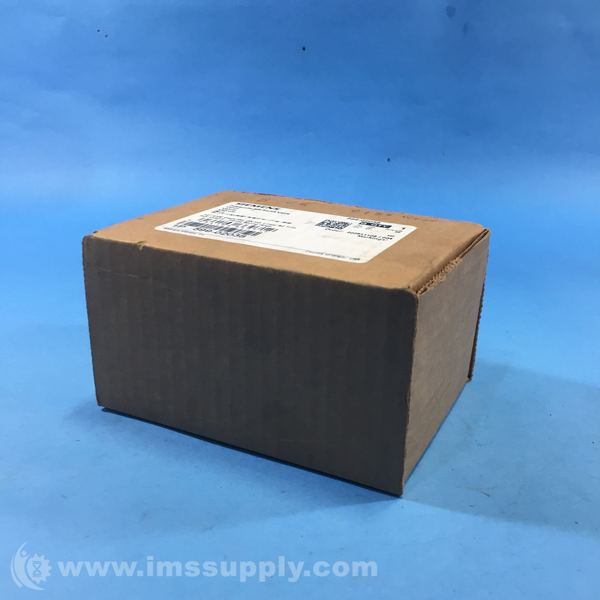

SIEMENS 599-02038 2-WAY VALVE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 599-02038
IMS Product Code: 1878446
Packaging: Sold Individually
Description:
Siemens 599-02038 2-Way Valve
2-Way Normally Open Valve with 1/2" NPT Connection, 2.5 Cv, Brass Trim
Specifications
- Connection: NPT
- Cv: 2.5
- Trim Material: Brass
- Pattern: 2-way
- Size: 1/2 in
- Supply Voltage: 24 VAC ±20%, 120 VAC ±20%, 50/60 Hz
- Supply VA: Two-position actuators: 9.8 VA, Three-position (floating) actuators: 0.8 VA, Proportional (0-10 VDC) actuators: 2.5 VA
- Signal Input: Two-position, three-position (floating), and 0-10 VDC proportional
- Stroke Time: Two-position actuators: 35 seconds, Three-position (floating) actuators: 150 seconds, Proportional (0-10 VDC) actuators: 34 seconds
- Operating Temperature: 41° to 122°F (5° to 50°C)
- Operating Humidity: 0 to 90% RH non-condensing
- Enclosure Rating: NEMA 1 (indoor only)
- Dimensions: SFA/P: 3.3"W x 3.4"H x 2.3"D (11.2 x 8.5 x 5.8 cm), SSA/P: 3.3"W x 3.3"H x 1.9"D (8.3 x 8.3 x 4.8 cm)
- Weight: Two-position actuators: 1.2 lb (0.54 Kg), Three-position (floating) actuators: 0.5 lb (0.25 Kg), Proportional (0-10 VDC) actuators: 0.5 lb (0.25 Kg)
- Approvals: CE, EMC directive 89/336/EEC, 73/23/EEC low voltage; UL File #E220114
