SIEMENS 599-03199 3-WAY MIXING VALVE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 599-03199
IMS Product Code: 1878205
Packaging: Sold Individually
Description:

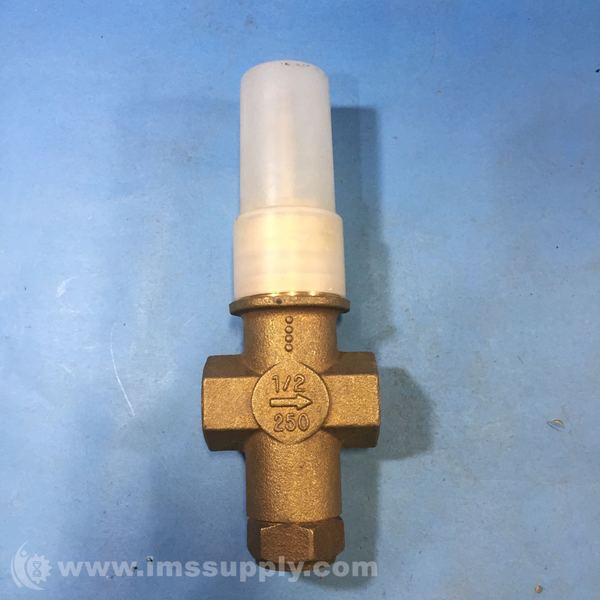

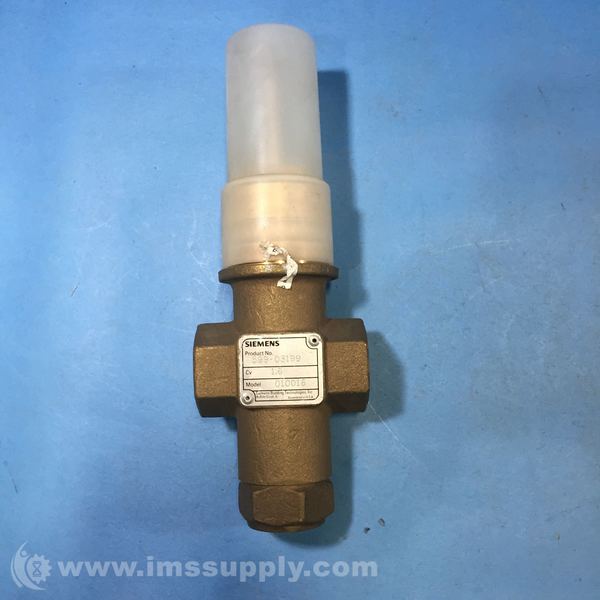

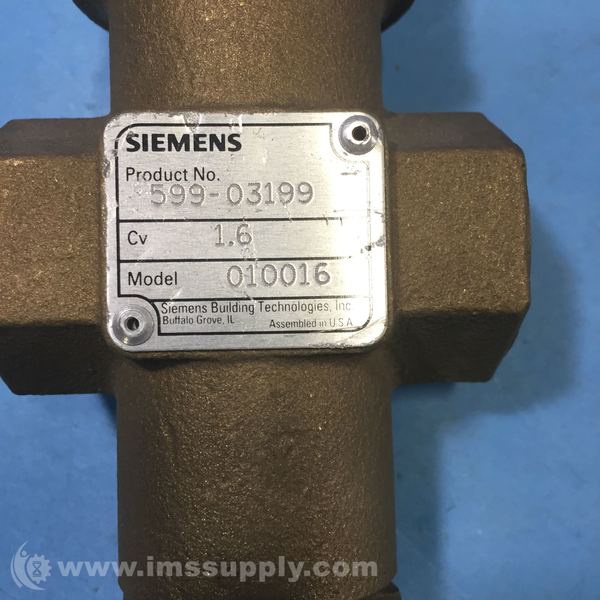

Siemens 599-03199 3-Way Mixing Valve
Three-way mixing valve with bronze trim, 1/2 inch line size, 1.6 Cv flow rate, female x female threaded connections, ANSI Class 250 rating
Specifications
- Cv: 1.6
- Trim Material: Bronze
- Connection Type: F x F
- Pipe Size: 0.5 "
- Max Close-Off Pressure: 25 psi
- Body Pattern: Three-Way Mixing
- Valve Style: Globe
- Medium Temperature Range: 20-250 degrees F
- Flow Characteristic: Equal Percentage NC, Linear NO
- Body Rating: 250
- Max Temp: 250
- Weight: 3.00 LBS
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 37 minutes.
