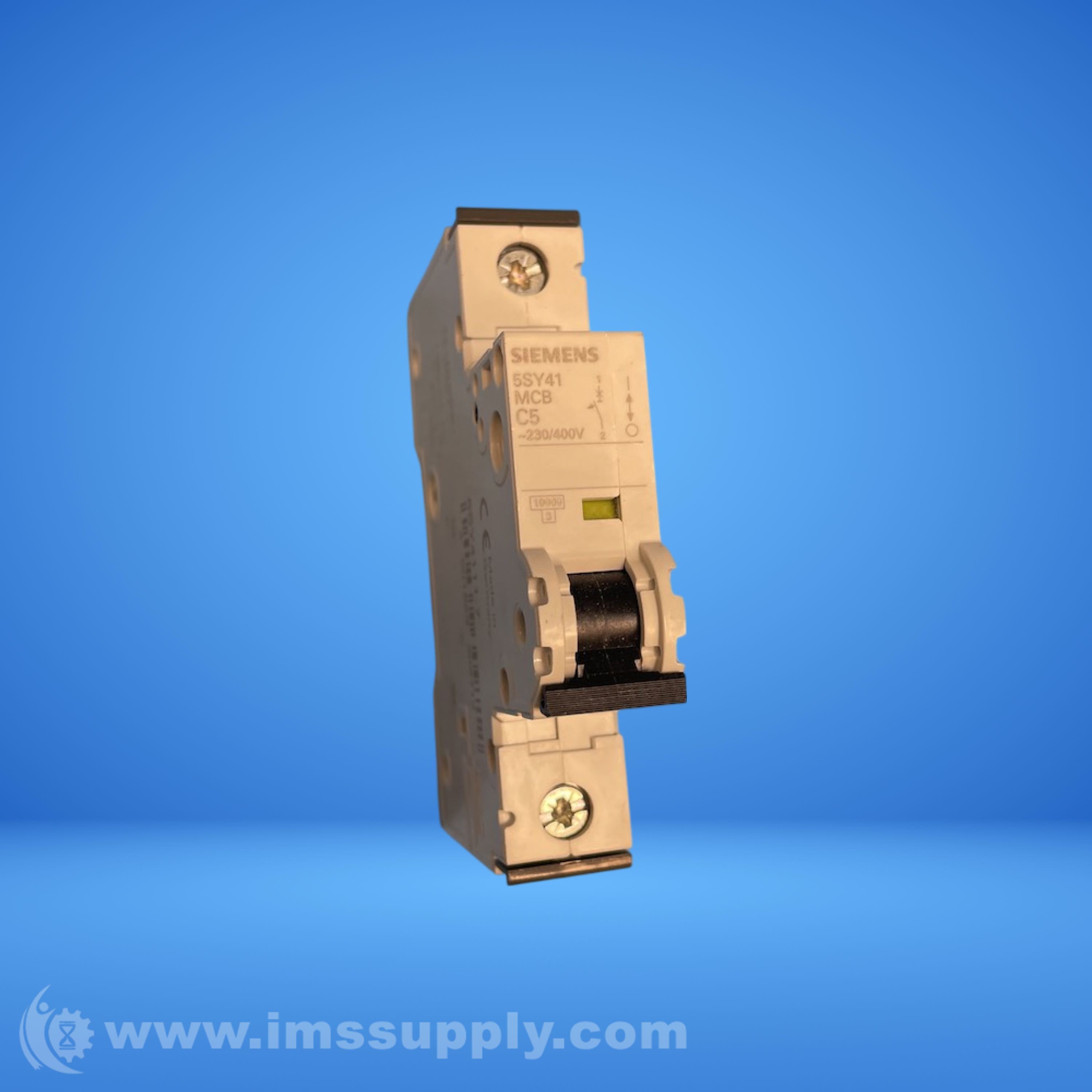

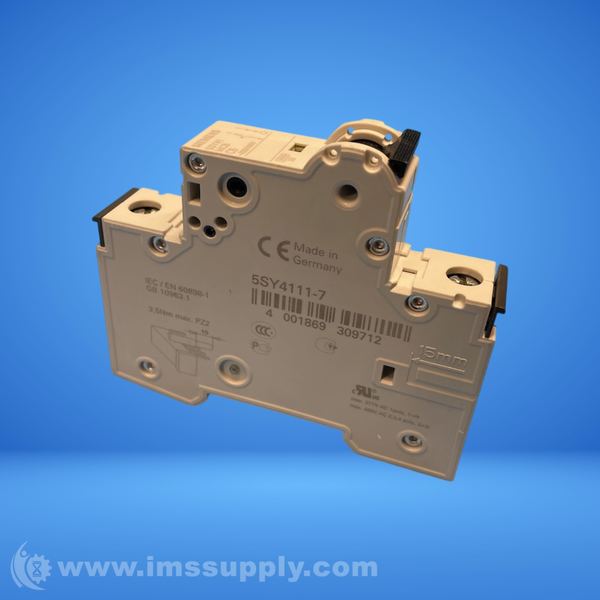

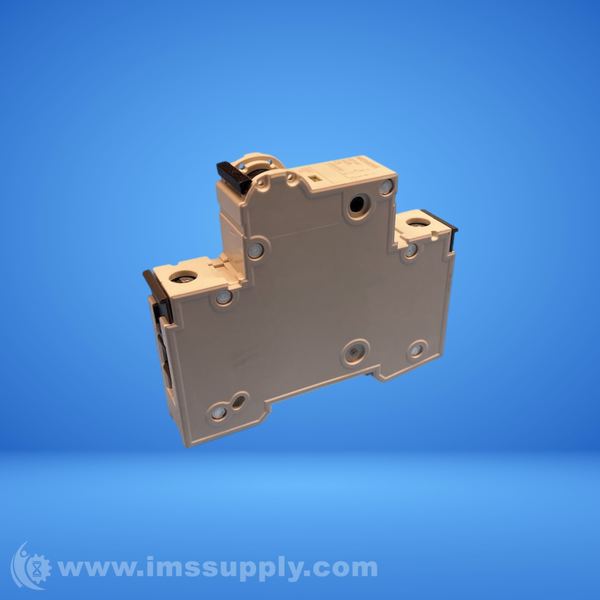

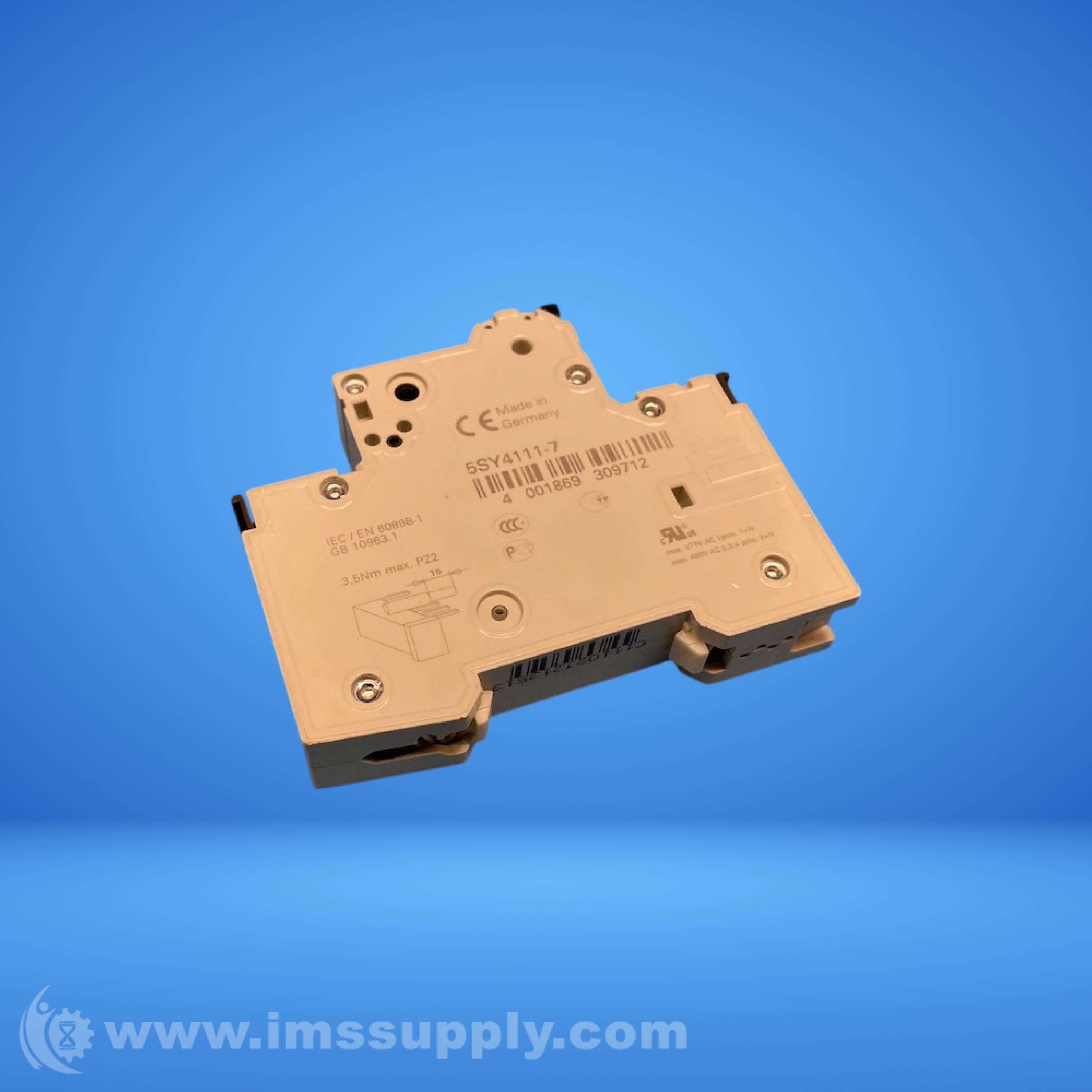

SIEMENS 5SY4111-7 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 5SY4-111-7
IMS Product Code: 1206367
Packaging: Sold Individually
Description:
Siemens 5SY4111-7 Miniature Circuit Breaker
Miniature circuit breaker 230/400 V 10kA, 1-pole, C, 5A, D=70 mm
Specifications
- Voltage: 230/400 V
- Poles: 1-pole
- Tripping Curve: C
- Current Rating: 5A
- Breaking Capacity: 10kA
- Width: 70 mm
- Actuator Type: Toggle
- Mounting Type: DIN Rail Mount
- Number of Poles: 1 Pole
- Overload: Thermal/Magnetic
- Series: 5SY Series
- product brand name: SENTRON
- number of poles: 1
- design of pole: 1P
- tripping characteristic class: C
- mechanical service life (switching cycles) / typical: 10 000
- overvoltage category: III
- degree of pollution: 3
- type of voltage / of the operating voltage: AC
- with single-phase operation / at AC / rated value: 440 V
- with multi-phase operation / at AC / rated value: 440 V
- supply voltage / with single-phase operation / at AC / rated value: 230 V
- operating voltage / at DC / rated value / maximum: 72 V
- protection class IP: IP20, with connected conductors
- at DC / acc. to IEC 60947-2 / rated value: 15 kA
- acc. to EN 60898 / rated value: 10 kA
- acc. to IEC 60947-2 / rated value: 35 kA
- energy limitation class: 3
- power loss [W] / for rated value of the current / at AC / in hot operating state / per pole: 2.2 W
- at 35 °C / rated value: 5 A
- at 45 °C / rated value: 4.54 A
- at 50 °C / rated value: 4.37 A
- at 55 °C / rated value: 4.2 A
- at 60 °C / rated value: 4.02 A
- at AC / rated value: 5 A
- suitability for operation: Mechanical engineering / industry
- product component / neutral conductor switching: No
- product feature / touch protection: Yes
- combined terminal top: Yes
- combined terminal bottom: Yes
- properties for main switches in accordance with EN 60204-1: Yes
- halogen-free: Yes
- sealable: Yes
- silicon-free: Yes
- product extension / installable / supplementary devices: Yes
- at AC / acc. to UL 1077 and CSA C22.2 No.235: 5 kA
- position / of power supply cord: Any
- installation depth: 70 mm
- number of modular width units: 1
- fastening method: Quick assembly system
- mounting position: any
- influence of the surrounding temperature: max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
- vibration resistance / acc. to IEC 60068-2-6: ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz
- minimum: -40 °C
- maximum: 75 °C
- number of test cycles / for environmental testing / acc. to IEC 60068-2-30: 6
- acc. to DIN EN 61346-2: F
- acc. to IEC 81346-2: F
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
