SIEMENS 6AV6 643-0CD01-1AX1 MP277 TOUCH PANEL
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 6AV6 643-0CD01-1AX1
IMS Product Code: 1740313
Packaging: Sold Individually
Description:

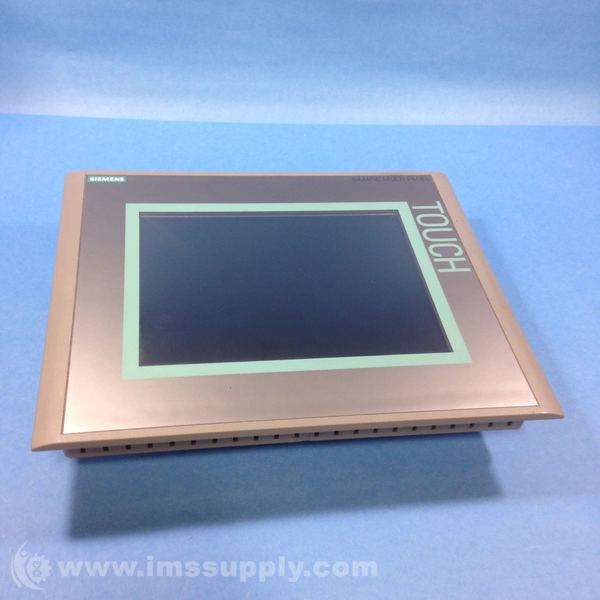

Siemens 6AV6 643-0CD01-1AX1 MP277 Touch Panel
Siemens SIMATIC MP277 10-inch Touch Multi Panel with 10.4-inch TFT display, 6MB configuration memory, and various communication interfaces.
Specifications
- Display Size: 10.4 inches
- Display Type: TFT Multi-Touch
- Display Resolution: 640 x 480 pixels
- Colors Supported: 65,000
- Configuration Memory: 6 MB
- Supply Voltage: 24 VDC
- Current: 0.8 A
- Communication Ports: RS422/RS485/RJ45/Industrial Ethernet/USB/PROFINET IO/PROFIBUS
- Dimensions: 275 mm H x 335 mm W x 61 mm D
- Weight: 3.24 kgs
- Temperature Rating: 0 to 50 degrees C
- Standard & Approvals: CE Certified, FM Approved, UL/cULus Listed
