SIEMENS 6SL3130-7TE31-2AA3 ACTIVE LINE MODULE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 6SL3130-7TE31-2AA3
IMS Product Code: 2125871
Packaging: Sold Individually
Description:

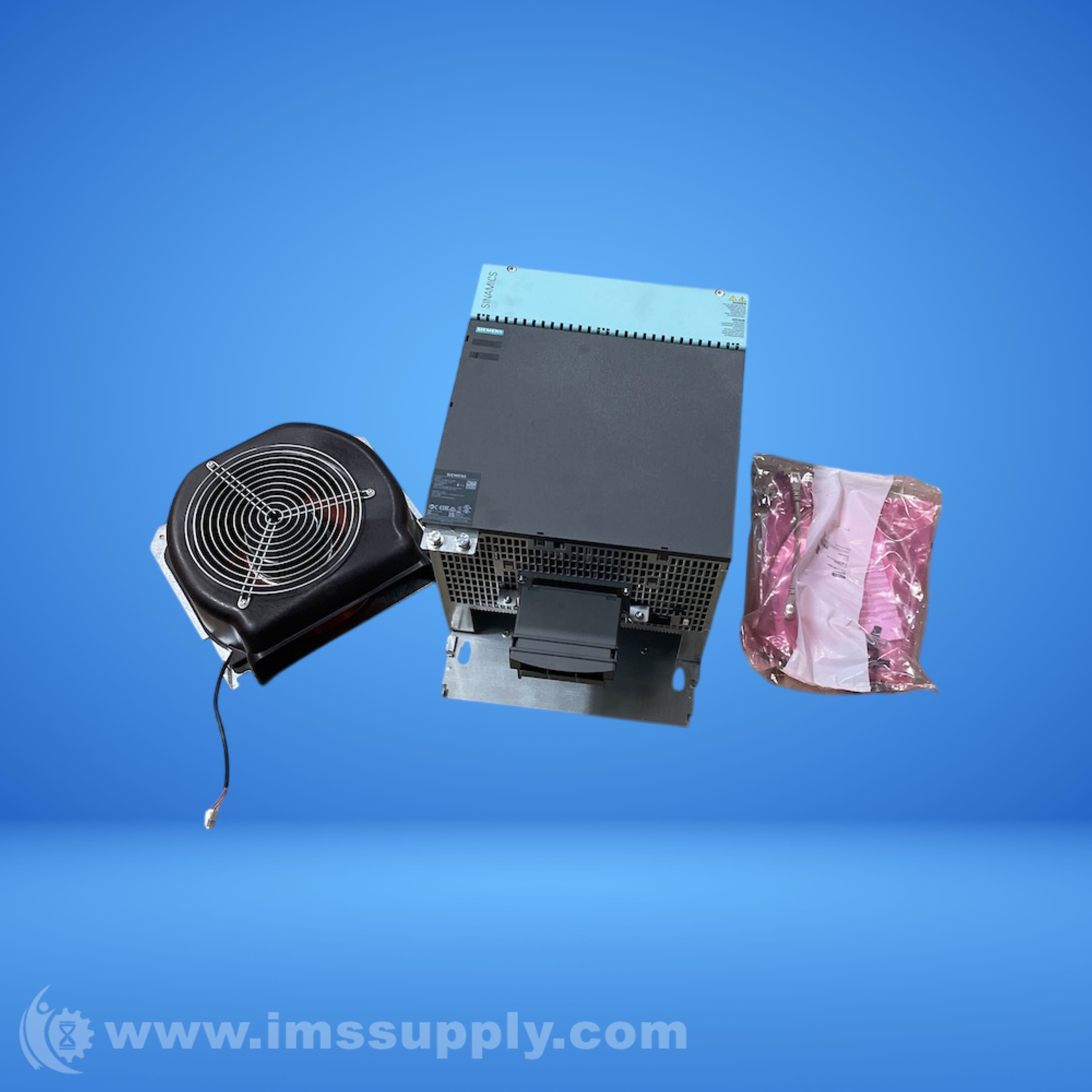

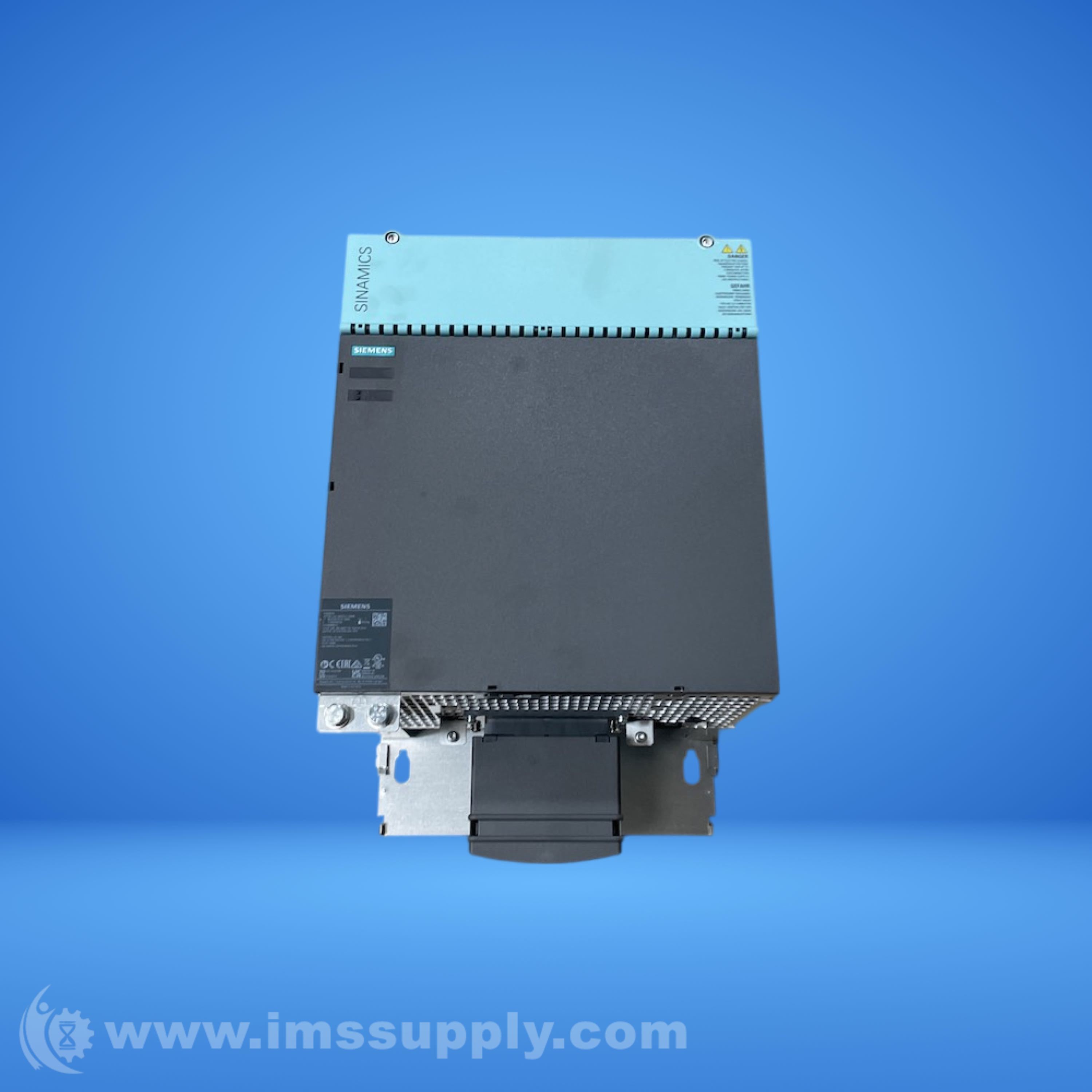

Siemens 6SL3130-7TE31-2AA3 Active Line Module
Siemens SINAMICS S120 Active Line Module, 3-Phase, 380 to 480 VAC Input, 600 VDC Output, 267 A Input Current, Booksize format with forced cooling AF (1 fan).
Specifications
- input voltage: 380 to 480 VAC
- output voltage: 600 VDC
- connection type: 3-Phase
- frequency rating: 50/60 Hz
- input current: 267 A
- ip rating: IP20
- overall depth: 10.63 in
- overall height: 24.76 in
- overall width: 11.81 in
- phase: 3 Phase
- power dissipation: 2.24 kW
- series: SINAMICS S120
- line voltage: 342 ... 528 V
- line frequency: 47 ... 63 Hz
- rated infeed power: 120 kW (150 hp)
- infeed power for S6 duty: 145 kW
- max infeed power: 175 kW
- regen, feedback power: 120 kW (150 hp)
- dc-link current at 600 V DC: 200 A
- dc-link current for S6 duty: 244 A
- max DC-link current: 292 A
- input current at 380 V AC 3-phase: 192 A
- input current at 400V AC 3-phase: 182 A
- input current at 480V AC 3-phase: 152 A
- input current at 400 V S6 duty: 220 A
- input current at 400 V, maximum: 267 A
- degree of protection: IP20 / UL open type
- construction: Booksize
- weight: 23 kg
- dimensions (W x H x D): 300 x 380 (629 with fan) x 270 mm

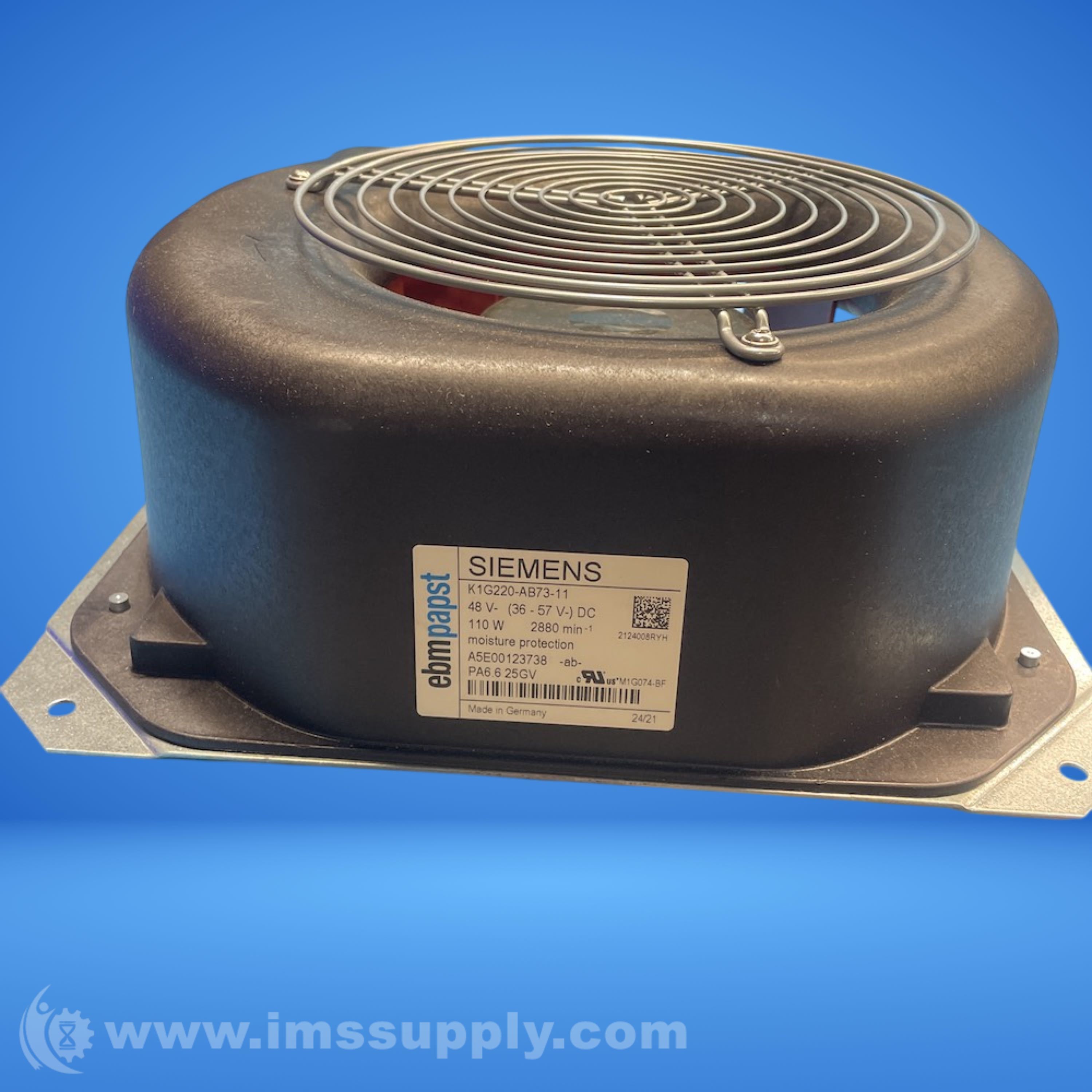

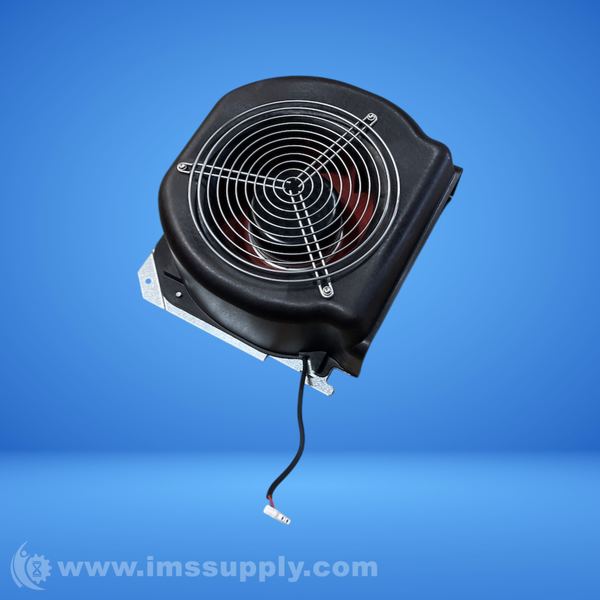

- cooling type: Internal air cooling with integrated fan
- efficiency: 0.98

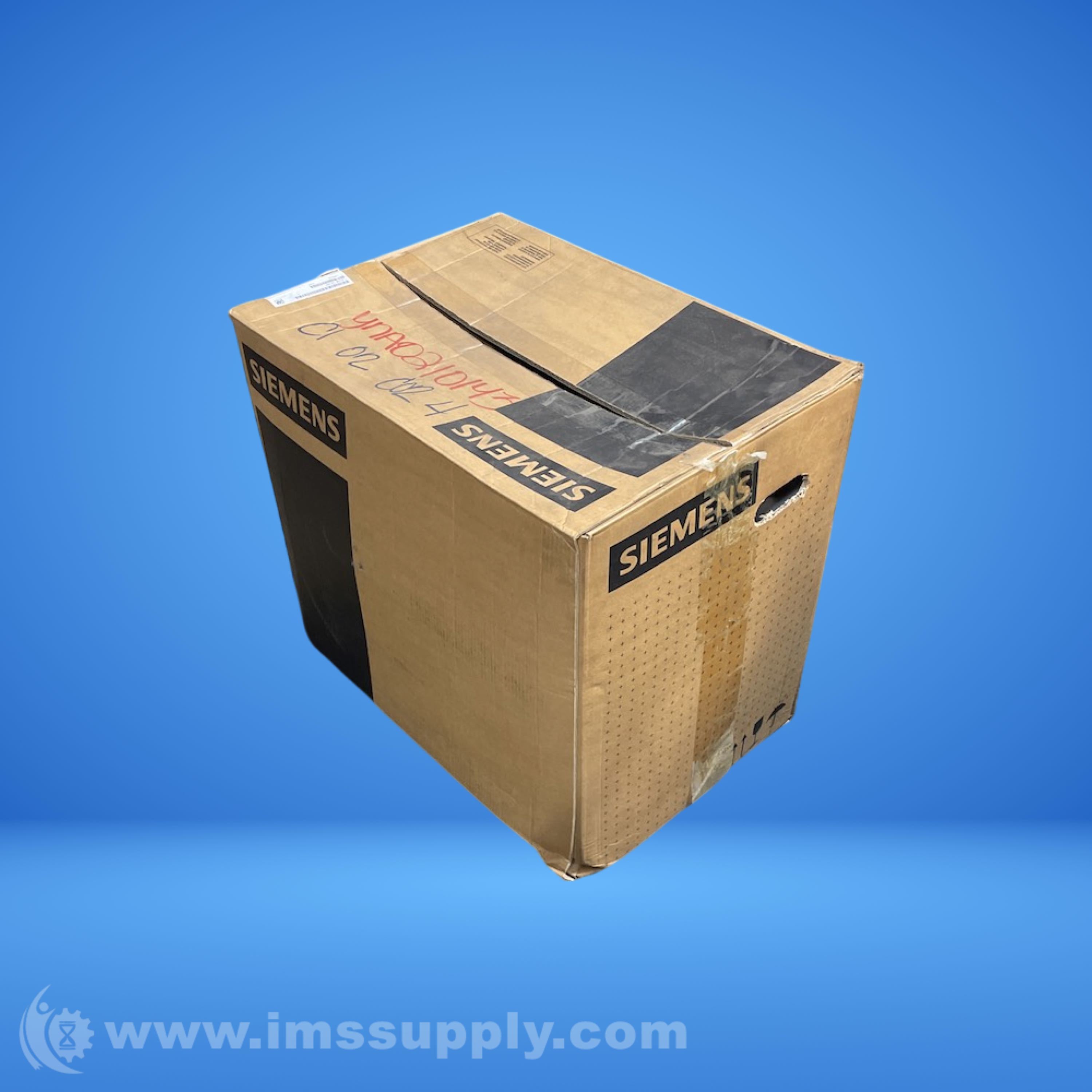

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
