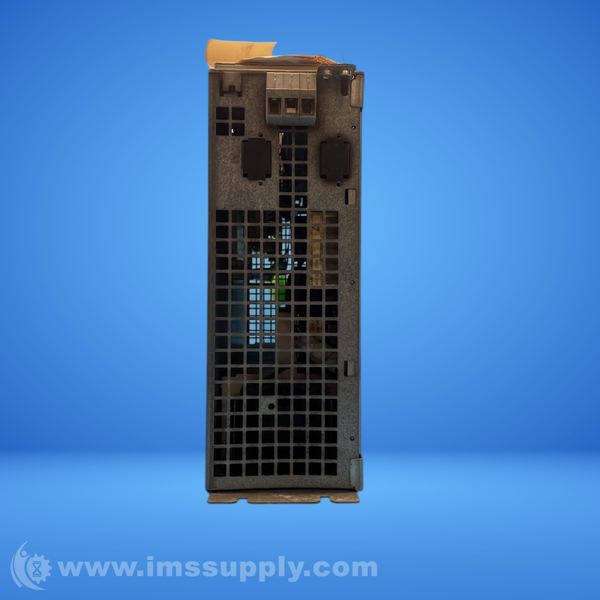

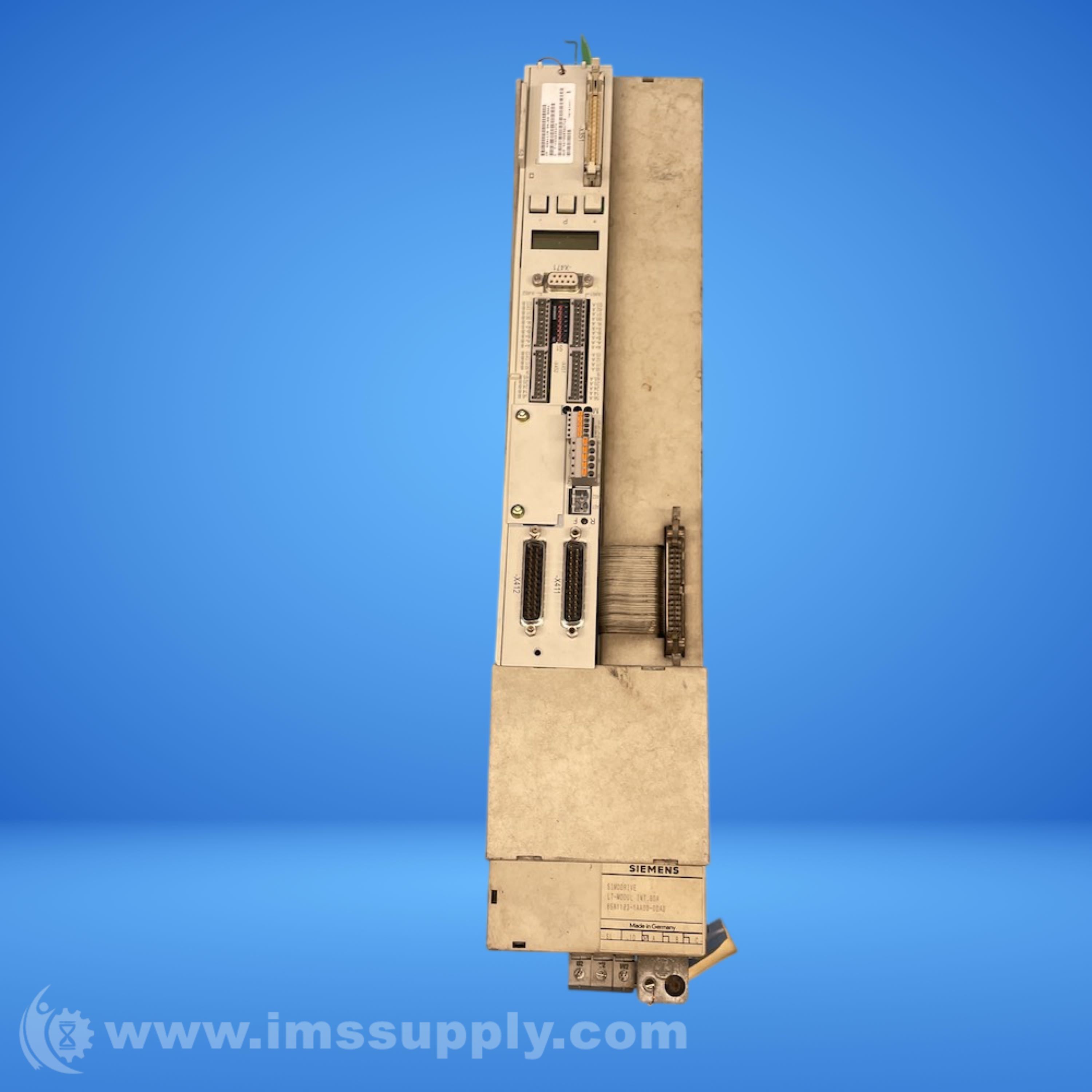

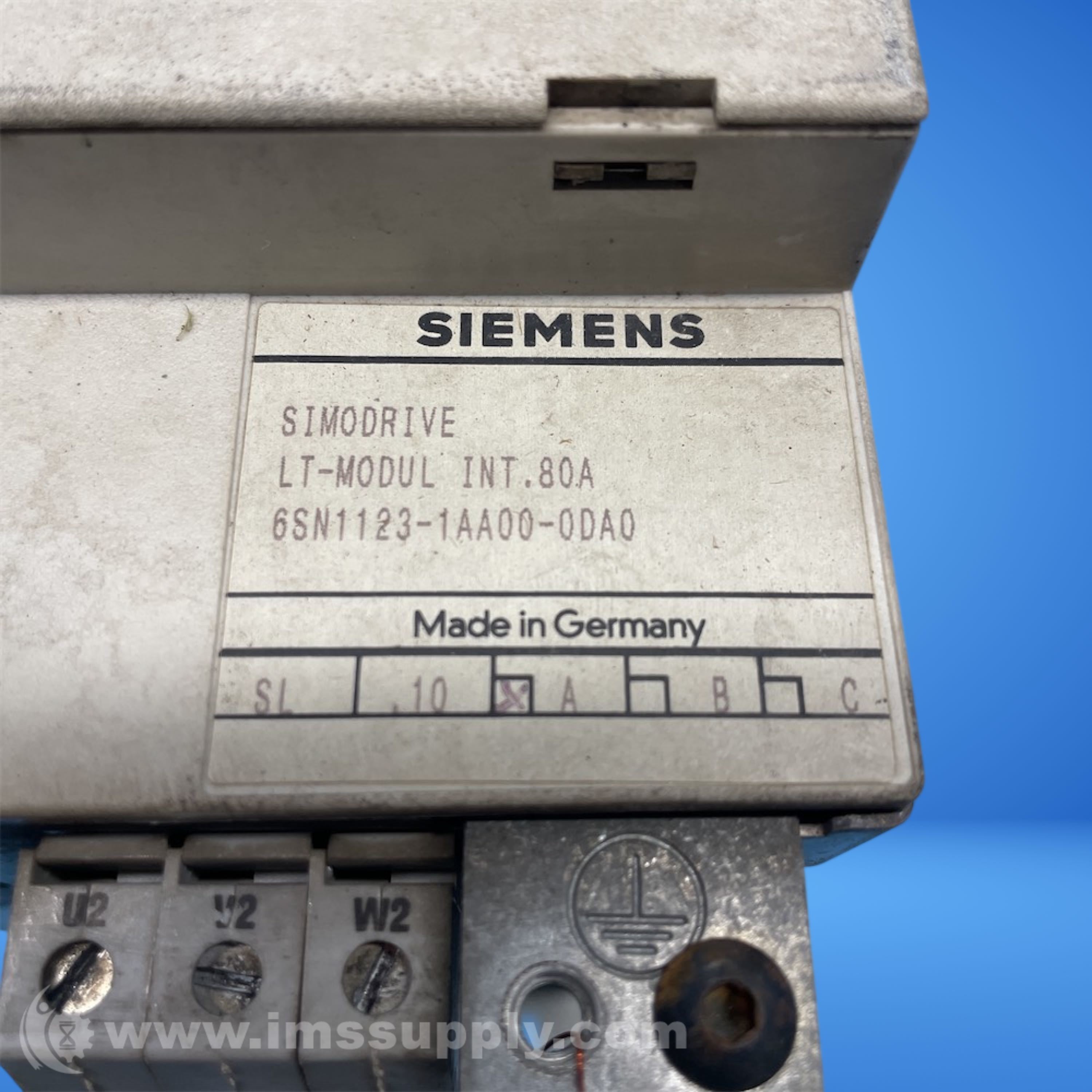

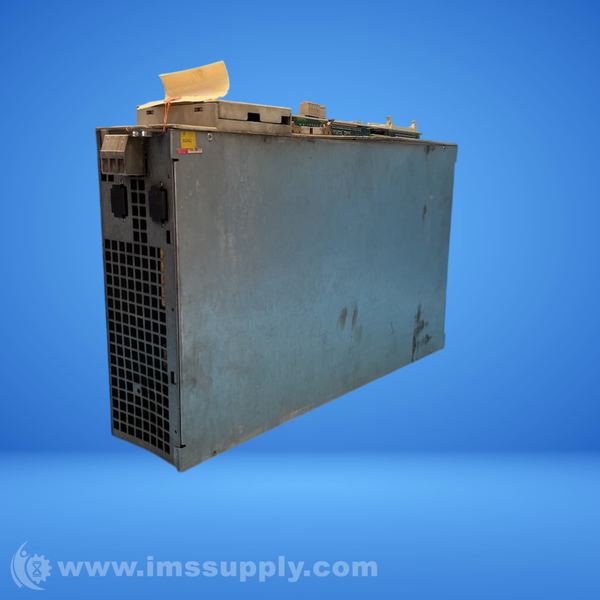

SIEMENS 6SN1123-1AA00-0DA0 POWER MODULE
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 6SN1123-1AA00-0DA0
IMS Product Code: 2161813
Packaging: Sold Individually
Description:
Siemens 6SN1123-1AA00-0DA0 Power Module
Siemens SIMODRIVE 611 power module with internal heat dissipation, rated for 80 Amps, supporting single-axis control for various motor types including 1FT5, 1TF6, and asynchronous motors.
Specifications
- Product Line: SIMODRIVE
- Part Number: 6SN1123-1AA00-0DA0
- Product Type: Power Module
- Number of Axes: 1 Axis
- Rated Power Module Current: 80 Amps
- Rated Asynchronous Motor Current: 30 Amps
- Rated 1FT5 Motor Current: 40 Amps
- Rated 1TF6 Motor Current: 28 Amps
- Input Voltage: 380 VAC
- Phase: 1 Phase
- Output Current: 30 A
- Operating Temperature Range: 0 to 55 degrees Celsius
- Storage Temperature Range: -25 to 55 degrees Celsius
- Weight: 15.00 lbs (6.80 kg)
- Dimensions: 0.0 in x 4.0 in x 7.0 in (0.0 cm x 10.2 cm x 17.8 cm)
- Country of Manufacture: Germany
- Mounting Type: Panel Mount
- IP Rating: IP20
- Efficiency: Above 95%
- Shape: Rectangular
- Connector Type: Screw Terminal
- Power Factor: 0.98
- Color: Grey
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 10 minutes.
