SIEMENS HFD63F250 CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: HFD63F250
IMS Product Code: 2037380
Packaging: Sold Individually
Description:

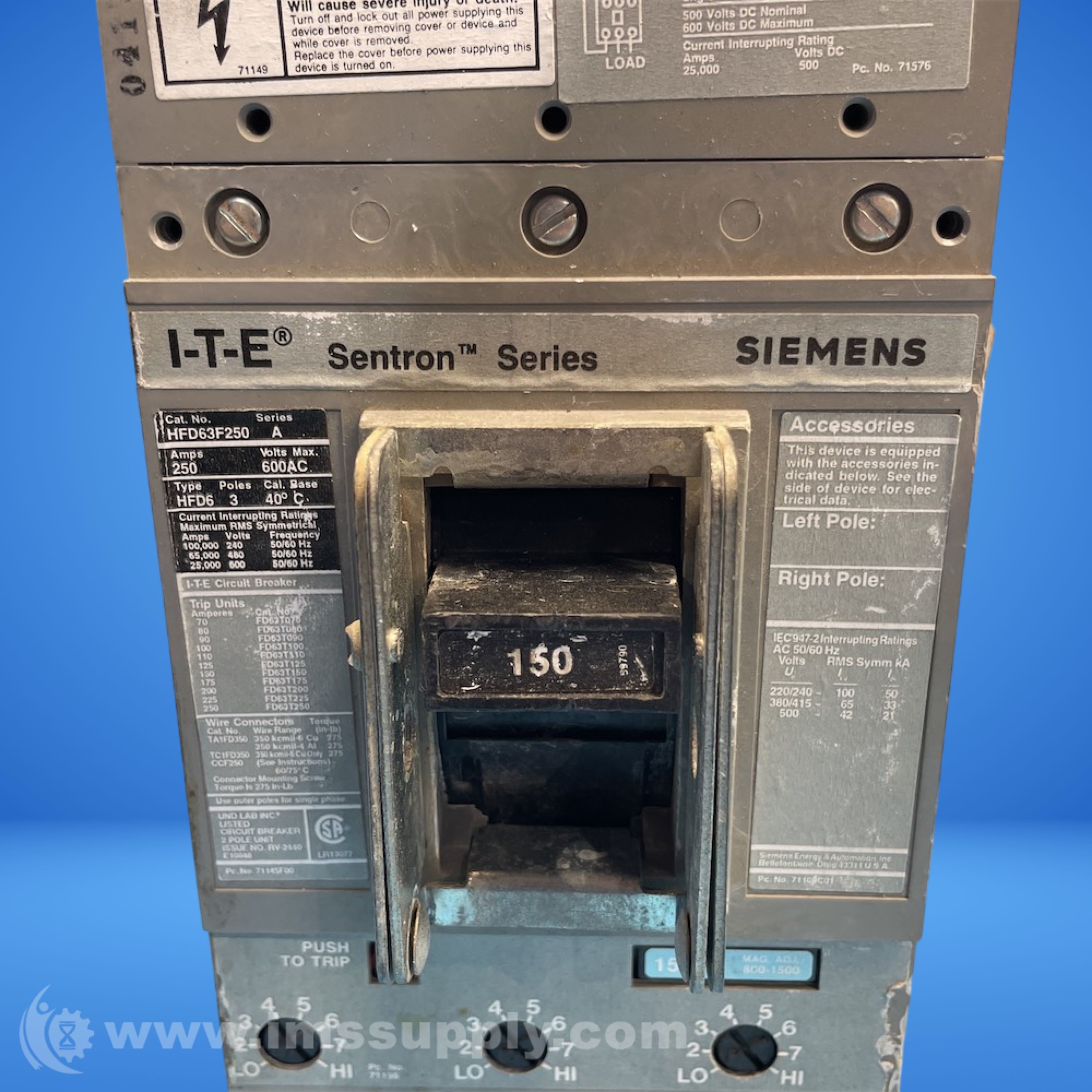

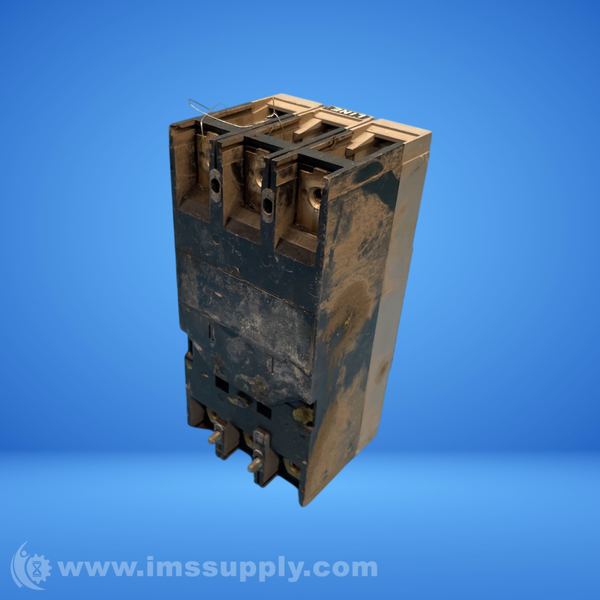

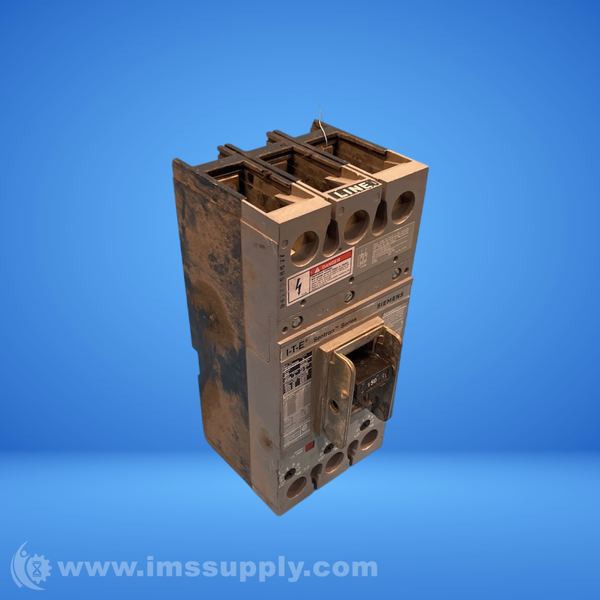

Siemens HFD63F250 Circuit Breaker
Siemens Sentron Series, type HFD, 3P, 3PH, 250A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, bolt-on, frame only, thermal magnetic, molded case circuit breaker.
Specifications
- AIC Ratings: 65kA@480V
- Amp: 250
- Brand: Siemens
- Category: Molded Case
- Connection: Bolt-On
- Contactor Type: Magnetic
- Current Rating: 70-250 Amps
- Dimensions (HxWxD): 9.5" x 4.5" x 4"
- Family: Sentron Series
- Frame: FD or FXD
- Interrupting Rating: 100kA at 240VAC, 65kA at 480VAC, 25kA at 600VAC/500VDC
- Manufacturer: Siemens
- Model: HFD63F250
- Mounting Type: Bolt-On
- MPN: HFD63F250
- Number of Poles: 3
- Phase: 3
- Pole: 3
- Protection: Thermal Magnetic
- Series: HFD
- Type: HFD6
- Volt: 600
- Voltage Rating: 600VAC, 500VDC
- Weight: 7.5 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
