SIEMENS HLD63F600 CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: HLD63F600
IMS Product Code: 2153746
Packaging: Sold Individually
Description:

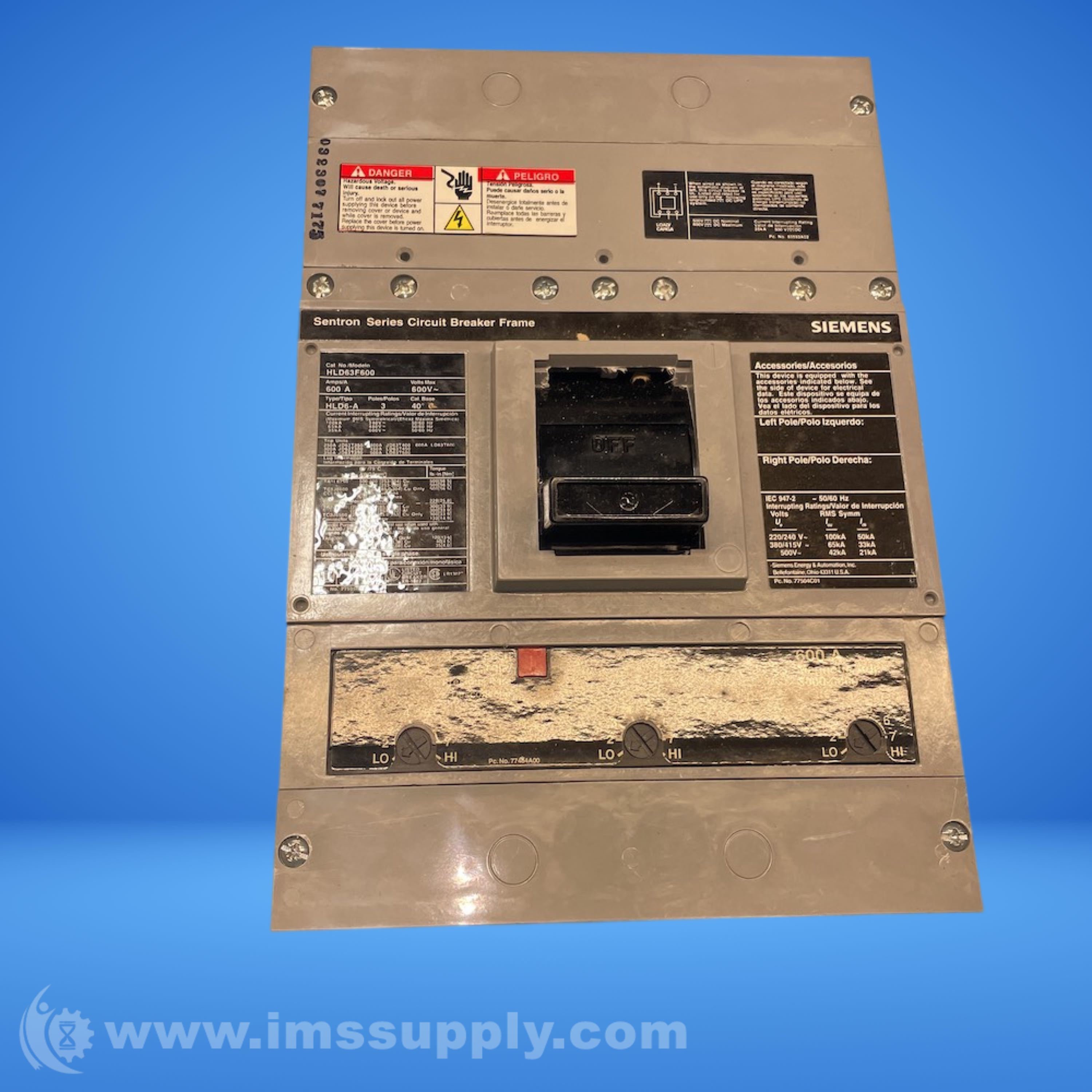

Siemens HLD63F600 Circuit Breaker
Siemens Sentron Series, type HLD, 3P, 3PH, 600A, 600V, 65kA@480V, high interrupting capacity, bolt-on, 40 degree C, frame only, thermal magnetic, molded case circuit breaker.
Specifications
- Amperage: 600
- Voltage: 600VAC
- Poles: 3
- Phase: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 35kAIC at 600V, 65kAIC at 480V
- Frame Type: HLD
- Connection Type: Bolt-On
- Protection: Thermal Magnetic
- Functions: Long Time and Instantaneous Trip
- Terminal Connection: Line and Load Side Lug
- Dimensions: 7.5" x 11" x 4"
- Wire Gauge: AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al

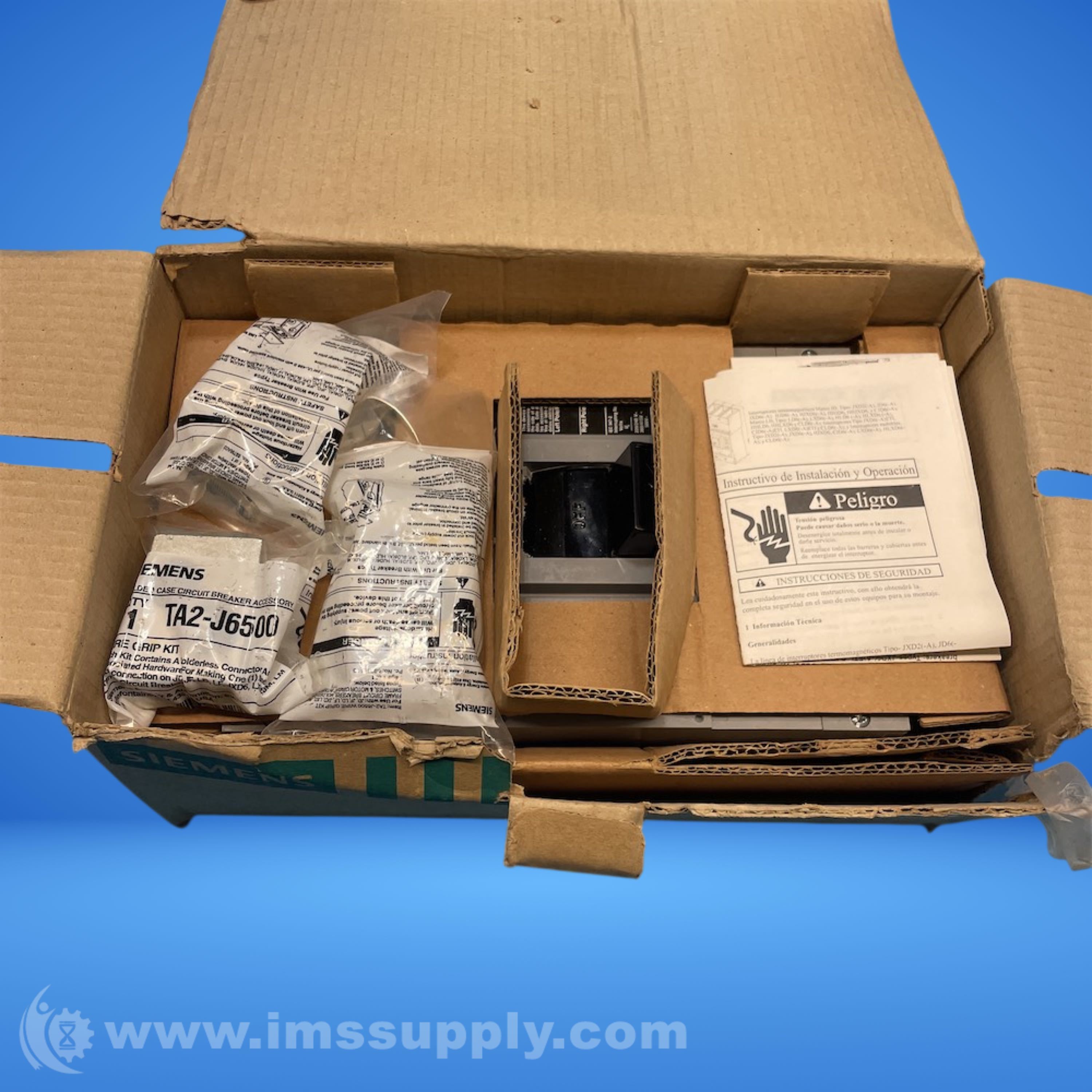

New - Open Box:
