SIMPLEX 06501205 ADDRESSABLE MANUAL PULL STATION
Quick Overview
Manufactured By: SIMPLEX
Manufacturer Part Number: 06501205
IMS Product Code: 2041255
Packaging: Sold Individually
Description:

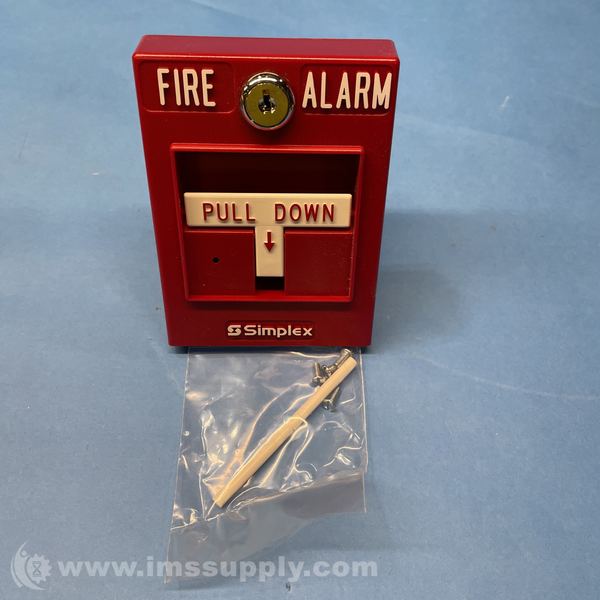

Simplex 06501205 Addressable Manual Pull Station
The Simplex 06501205 is an addressable manual pull station used in fire alarm systems. It features IDNet or MAPNET II communications, a single address, and is housed in a red Lexan polycarbonate casing with white lettering. The device is designed for single-action activation and includes a break rod.
Specifications
- Power and communications: IDNet or MAPNET II communications, 1 address for each station
- Address means: DIP switch, 8 position
- Wire connections: Screw terminal for in/out wiring, for 18 AWG to 14 AWG wire (0.82 mm² to 2.08 mm²)
- UL listed temperature range: 32°F to 120°F (0°C to 49°C)
- Humidity range: Up to 93% RH at 100°F (38°C)
- Housing color: Red with white raised lettering
- Material: Lexan polycarbonate
- Pull lever color: White with red raised lettering
- Housing dimensions: 5 in. H x 3 3/4 in. W x 1 in. D (127 mm x 95 mm x 25 mm)
- Weight: 2 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 20 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 20 minutes.
