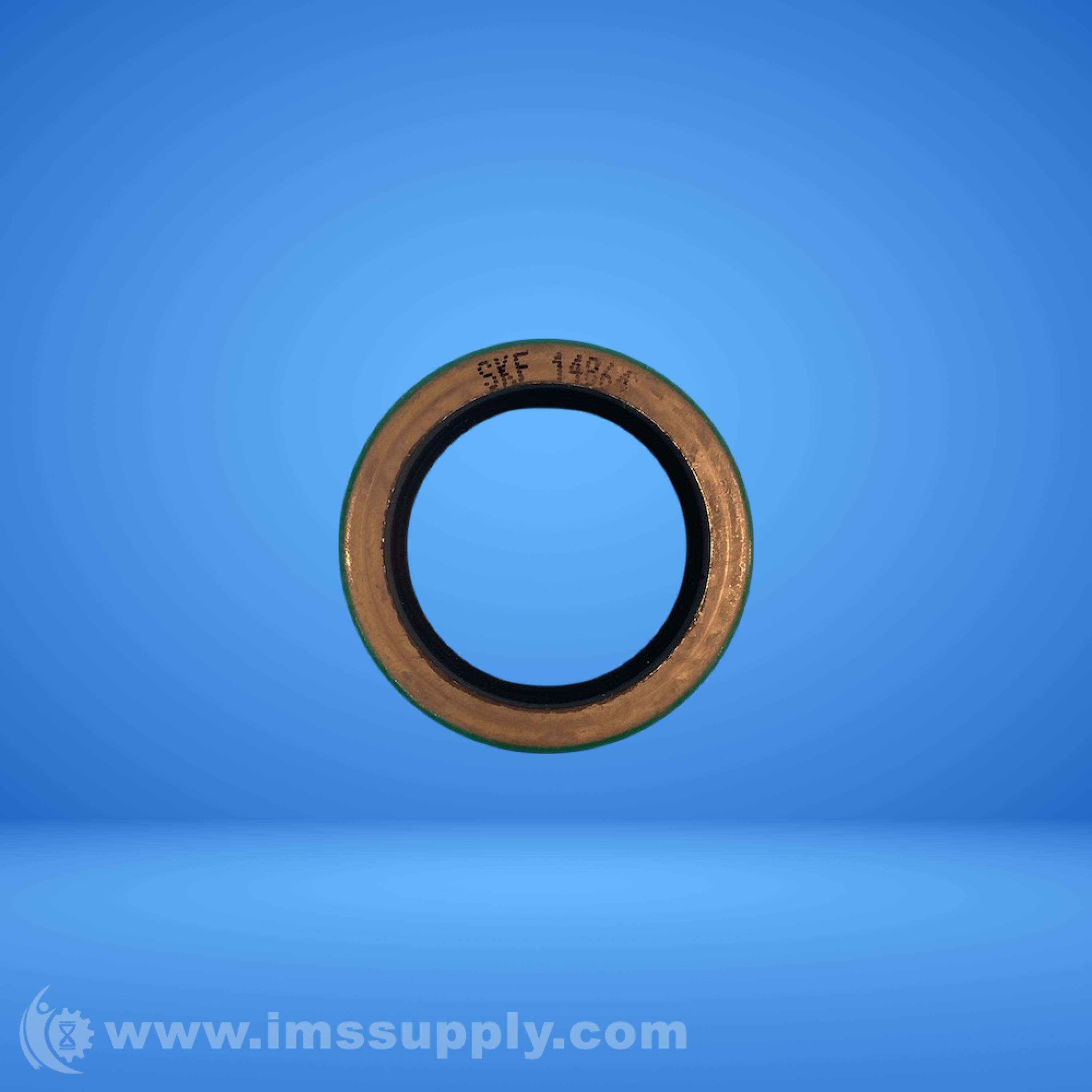

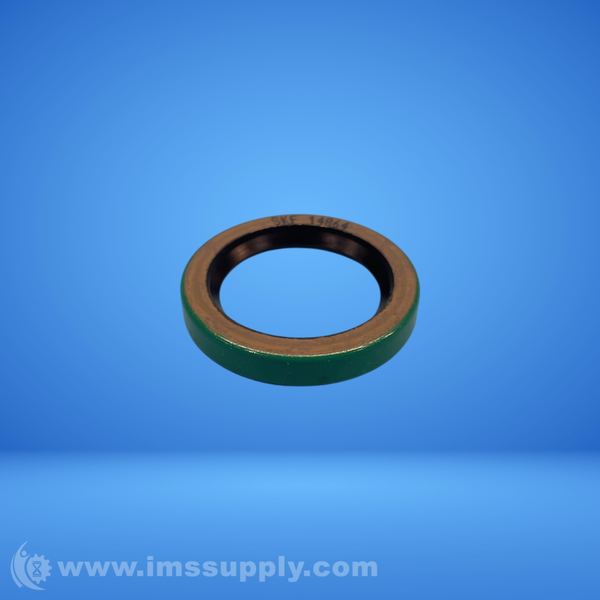

SKF 14864 RADIAL SHAFT SEAL
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 14864
IMS Product Code: 2145161
Packaging: Sold Individually
Description:
SKF 14864 Radial Shaft Seal
Radial shaft seal with metal case and SKF Wave lip, for oil or grease
Specifications
- Type: Type CRW1
- Inside Diameter: 1-1/2 in
- Outside Diameter: 2.061 in
- Width: 0.313 in
- Cross Section Shape: R
- Temperature Rating: -40 to 212 deg F
- Lip Material: Nitrile
- Finish: Bore Tite Coating
- Color: Green
- Solid / Split: Solid
- Seal Type: Rotary shaft seal/Radial shaft seal
- Casing: Steel
- Case Design: Metal case
- Operating Temperature Range: -40 to 210 degrees F
- Pressure Tolerance: 10 psi
- Spring Type: Garter Spring
- Spring Material: Carbon Steel
- Lubricant Type: Oil or Grease
- Installation Method: Housing press fit
- Typical Application: Gearboxes, speed reducers, transmissions, motors, pumps, wheel ends, rollers
- Weight: 0.04 lbs
- Auxiliary lip: No
- Maximum operating temperature: 212.0 degrees F
- Minimum operating temperature: -40.0 degrees F
- Permissible circumferential speed: 6.74 m/s
- Rotational speed: 3360.0 r/min
- Type of outside diameter: Metal-cased with sealant coating on the outside diameter
- Unit system: Inch
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 10 hours and 40 minutes.
