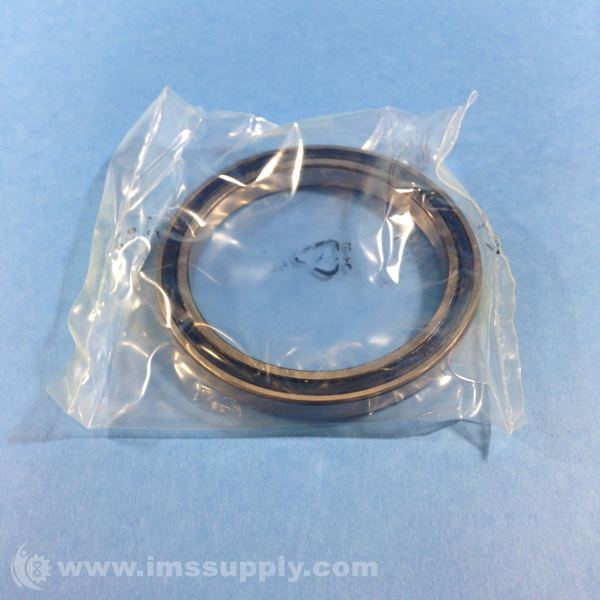

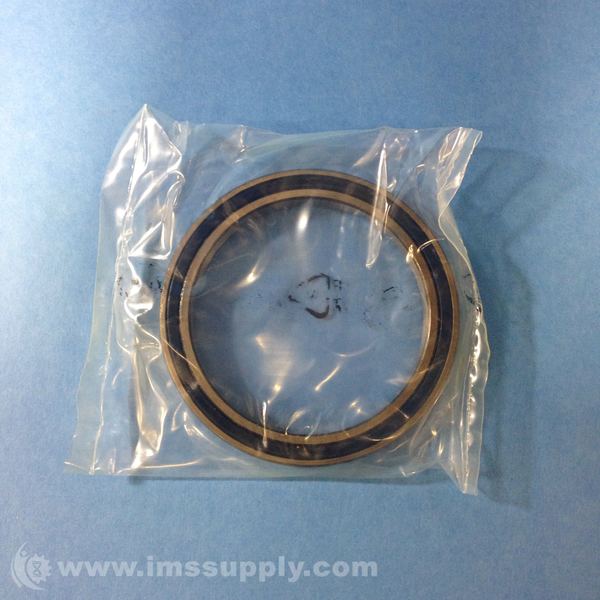

SKF 61815-2RZ DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 61815-2RZ
IMS Product Code: 1733993
Packaging: Sold Individually
Description:
SKF 61815-2RZ Deep Groove Ball Bearing
Double sealed, straight bore, without snap ring, 75 mm ID, 95 mm OD, 10 mm width
Specifications
- Bore Type: Straight
- Bore Diameter: 75 mm
- Outside Diameter: 95 mm
- Overall Width: 10 mm
- Closure Type: Double Sealed
- Snap Ring Included: Without Snap Ring
- Internal Clearance: CN
- Cage Type: Sheet metal
- Precision Rating: ABEC 1
- Bearing Material: Bearing steel
- Cage Material: Bearing steel
- Seal Material: Nitrile Rubber
- Max Rpm: 7000 rpm
- Series: 618
- Radial Dynamic Load Capacity: 2810 lbf
- Radial Static Load Capacity: 2430 lbf
- Weight: 0.37 lbs
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
