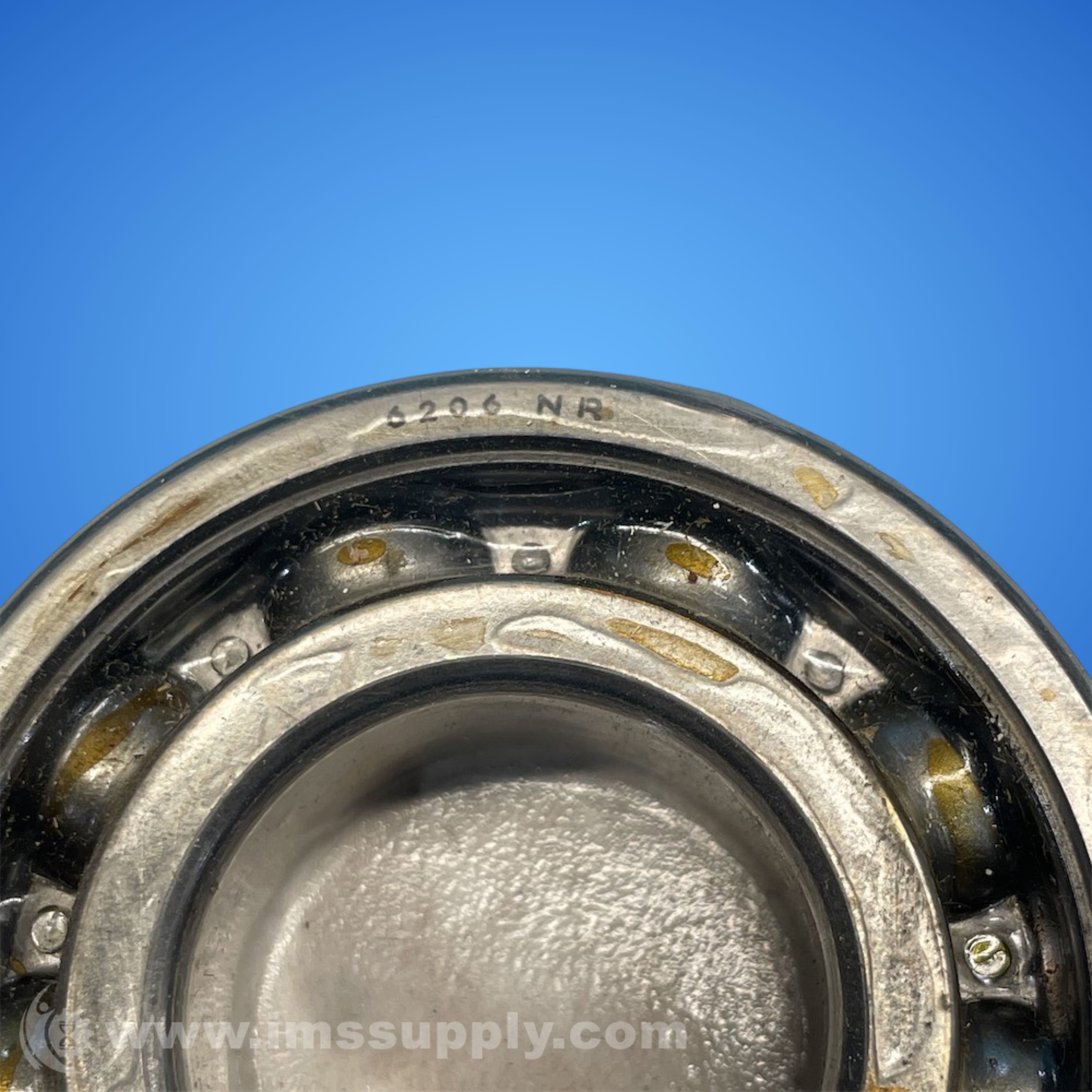

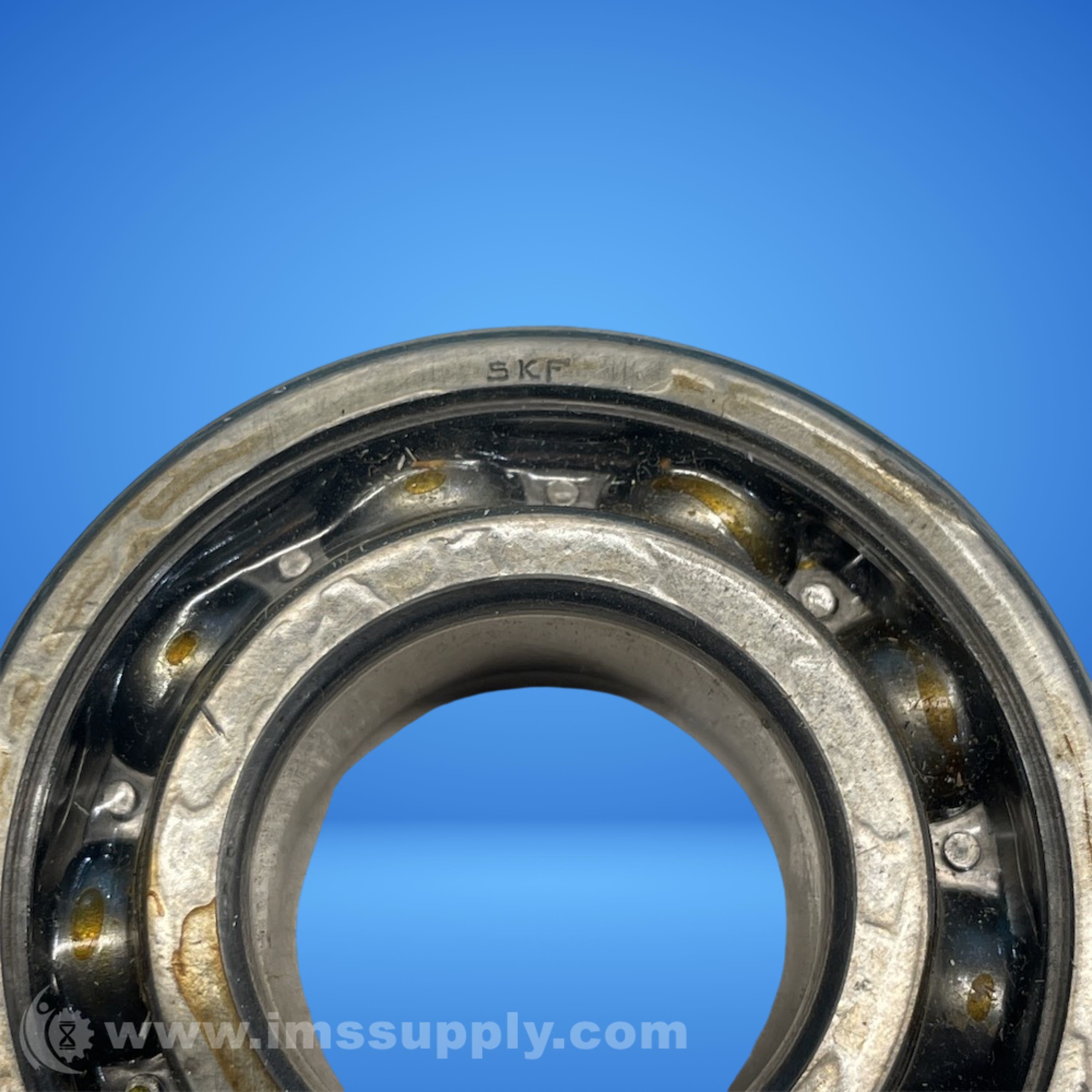

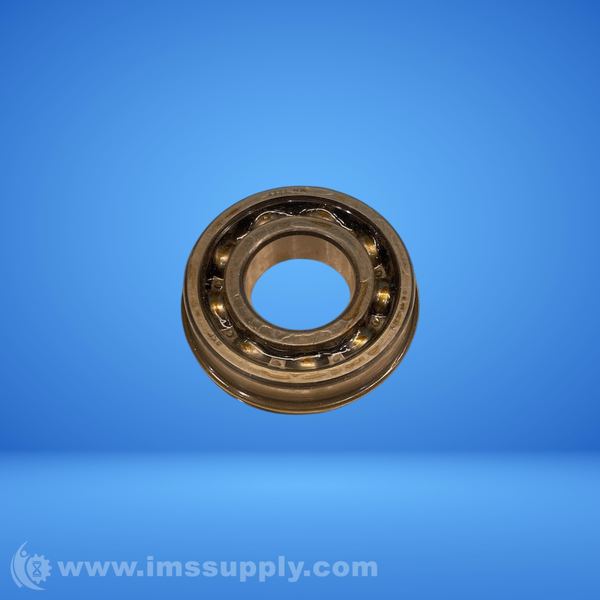

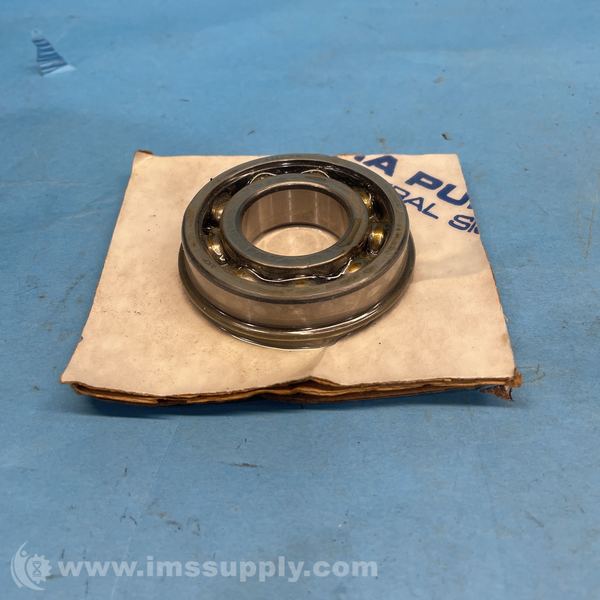

SKF 6206NR DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 6206NR
IMS Product Code: 2148493
Packaging: Sold Individually
Description:
SKF 6206NR Deep Groove Ball Bearing
Deep groove ball bearing with snap ring groove
Specifications
- Bore Diameter: 30 mm
- Outer Diameter: 62 mm
- Width: 16 mm
- Inner Diameter: 30mm
- Height: 16mm
- Weight: 190g
- Width of snap ring: 1.70 mm
- Width of snap ring groove: 1.90 mm
- Diameter of snap ring groove: 59.61 mm
- Shoulder diameter: ˜40.36
- Outside diameter of snap ring: 67.70 mm
- Recess diameter: ˜54.06
- Distance outer ring from side face to snap ring groove: 3.28 mm
- Bottom radius of snap ring groove: max.0.6
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 25 minutes.
