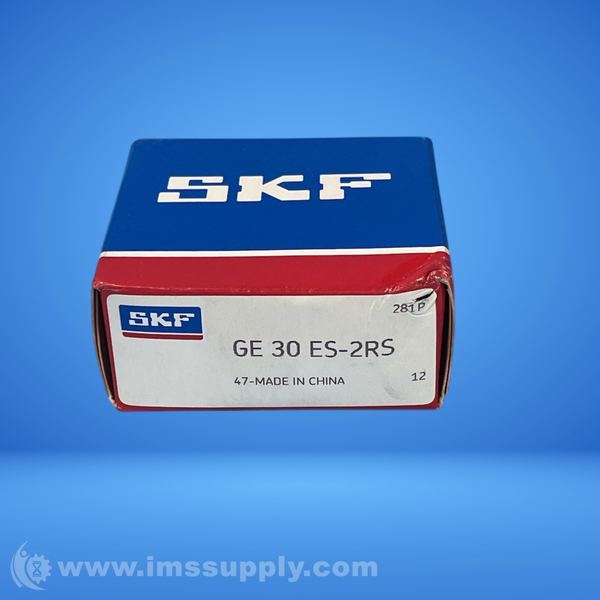

SKF GE 30 ES-2RS RADIAL SPHERICAL PLAIN BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: GE 30 ES-2RS
IMS Product Code: 2153480
Packaging: Sold Individually
Description:
SKF GE 30 ES-2RS Radial Spherical Plain Bearing
Radial spherical plain bearing requiring lubrication, double sealed, with relubrication feature, steel/steel sliding surfaces, 30 mm bore diameter, 47 mm outer diameter, 22 mm width
Specifications
- Bearing Type: Radial
- Radial Internal Clearance: Group N
- Outer Race Material: Chrome Steel
- Self-Lubricating: No
- Outer Ring Width: 18 mm
- Inner Ring Width: 22 mm
- Sealing: With seals
- I.D.: 30 mm
- O.D.: 47 mm
- Enclosure: Double Sealed
- Weight: 0.326 lb
- Lubrication Type: Requires Lubrication
- Closure Type: Sealed
- Misalignment Angle: 6 degrees
- Operating Temperature Range: -30 to +130 degrees C
- Radial Static Load Capacity: 310 kN
- Radial Dynamic Load Capacity: 62 kN
- Sliding Material - Contacting Surfaces: Steel / Steel
- Diameter lubrication hole (outer ring): 2 mm
- Width annular lubrication groove at outer ring: 3.1 mm
- Width annular lubrication groove at inner ring: 3.2 mm
- Relubrication Feature: With
- Chamfer dimension outer ring: min. 0.6
- Chamfer dimension bore: min. 0.6
- Raceway diameter inner ring: 40.7 mm
