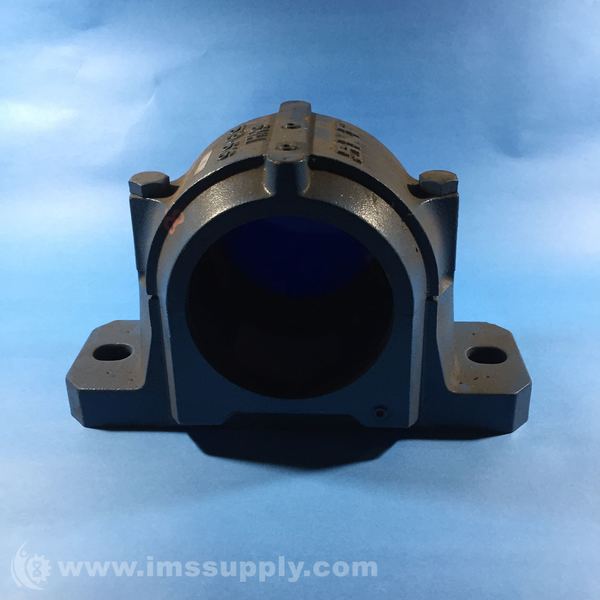

SKF SNH-519-616 PILLOW BLOCK HOUSING - TWO-BOLT BASE
Starting At: $172.50
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: SNH-519-616
IMS Product Code: 1809996
Packaging: Sold Individually
Description:
Skf SNH-519-616 Pillow Block Housing - Two-Bolt Base, Split Pillow Block, Cast Iron
Specifications:
- Inside diameter: 85 mm, 80 mm, 70 mm, 2.6875 in, 2.7500 in
- Housing material: Cast Iron
- Base to bore centerline: 112 mm
- Compatible bearing type: Spherical Roller
- Overall length: 13.6250 in
- Finish/coating: Uncoated
- Overall height: 8.7500 in
- Compatible bearing series/part number: 1316 K, 1316, 22316 E, 22316 EK, 21316 E, 21316 EK, 2316, 2316 K, C2316, C2316 K, 1219 K, 2219 K, 22219 EK
- Overall width: 5.7500 in
- Bolt center-to-center length: 11-7/16 in
- Mounting: Two-Bolt Base
- Base width: 3-15/16 in
- Housing construction: Split Pillow Block
- Series: SNL
- Compatible bore diameter: 85 mm, 80 mm, 70 mm, 2.6875 in, 2.7500 in
- Standards met: ISO/DIS 185 Grade 200
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 10 minutes.
