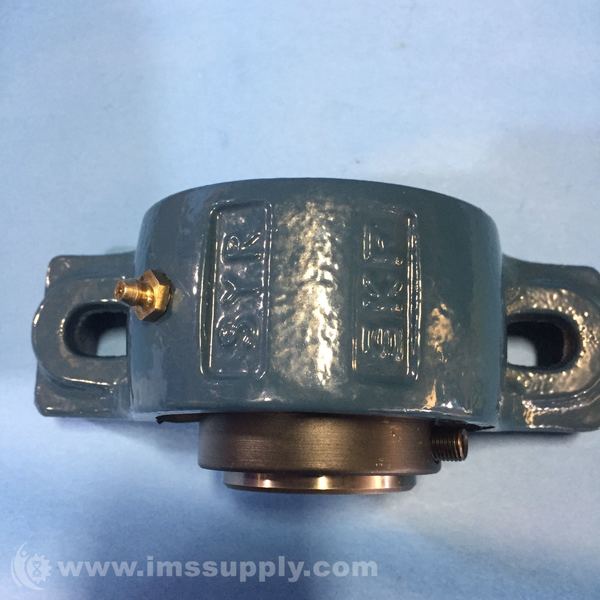

SKF SYR 1.11/16 SPHERICAL ROLLER BEARING UNIT
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: SYR 1.11/16
IMS Product Code: 1826610
Packaging: Sold Individually
Description:
SKF SYR 1.11/16 Spherical Roller Bearing Unit
Spherical roller bearing unit with two-bolt base mounting, round bore, grip-tight adapter mounted locking device, and tri-guard seal.
Specifications
- Bore: 1-11/16 in
- Bolt Center-to-Center Length: 5-3/16 to 6 in
- Base to Bore Centerline: 2-1/8 in
- Overall Length: 7-3/8 in
- Overall Width: 2-15/16 in
- Overall Height: 4-5/16 in
- Mounting: Two-Bolt Base
- Bore Type: Round
- Base Width: 2-1/16 in
- Locking Device: Grip-Tight Adapter Mounted
- Seal: Tri-Guard
- Expansion Type: Expansion
- Dynamic Load: 17300 lbf
- Maximum Temperature: 200 deg F
- Maximum RPM: 4500 rpm
- Material: Cast Iron
- Coating: Uncoated
- Dimension Type: Inch
- Bearing Arrangement: Through shaft
- Bolt Hole Type: Cast holes
- Bearing Insert: Spherical roller bearing
- Bearing Configuration: Bearing mounted directly on the shaft
- Housing Material: Cast iron
- Seal Type (Housing): Trigard seal
- Weight: 8.047 lb

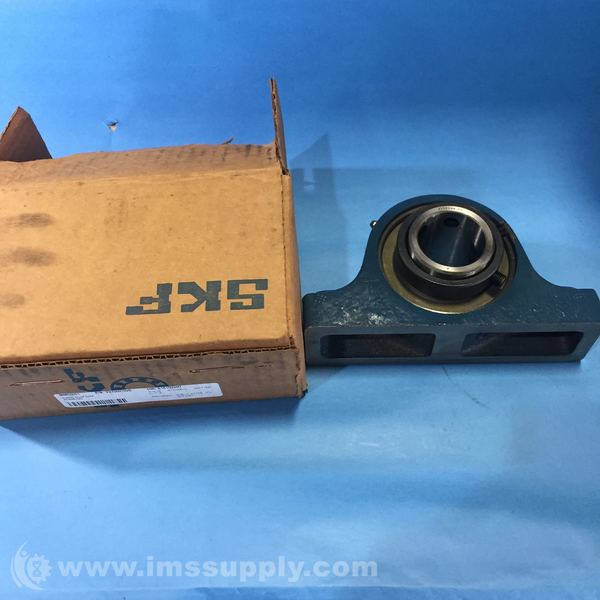

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 30 minutes.
