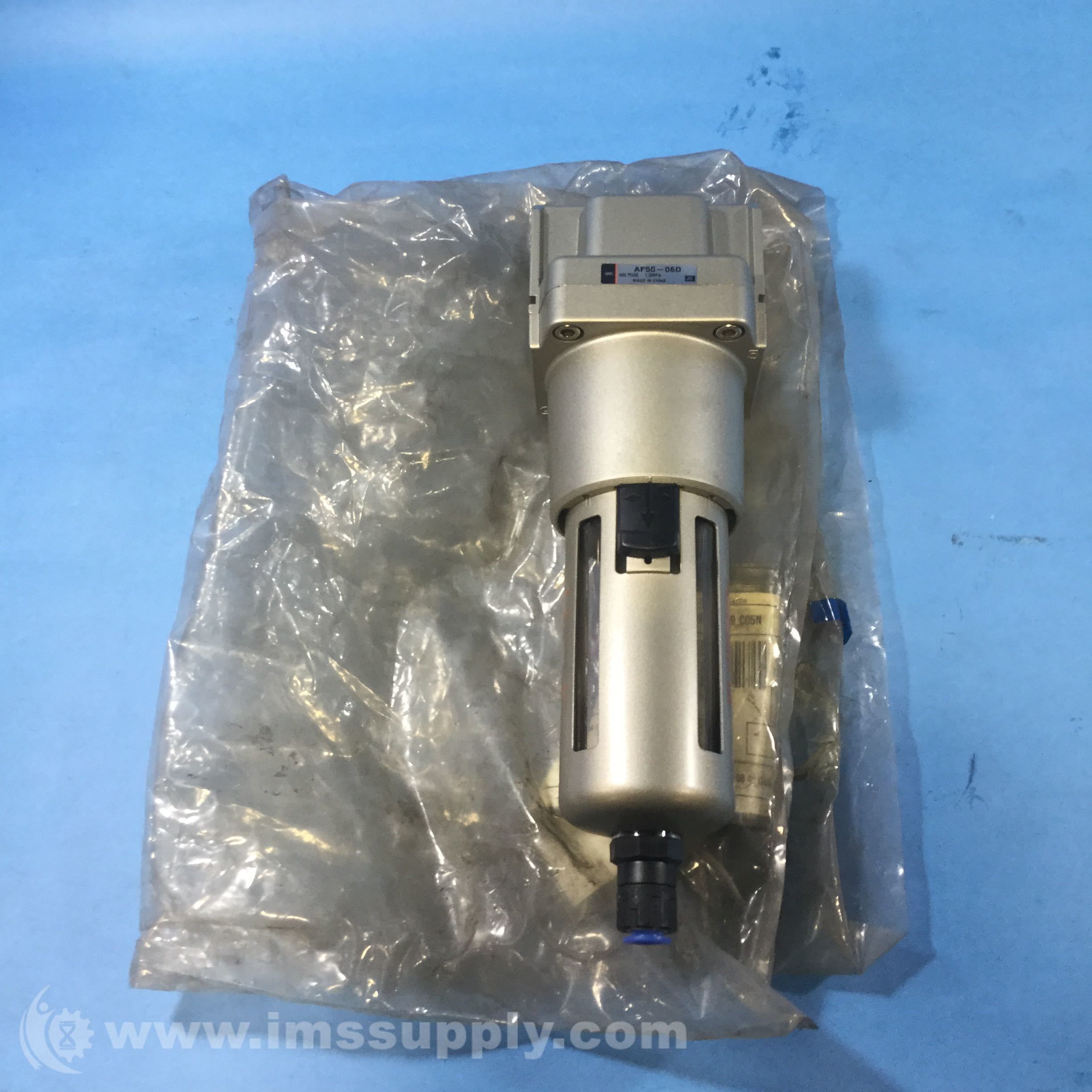

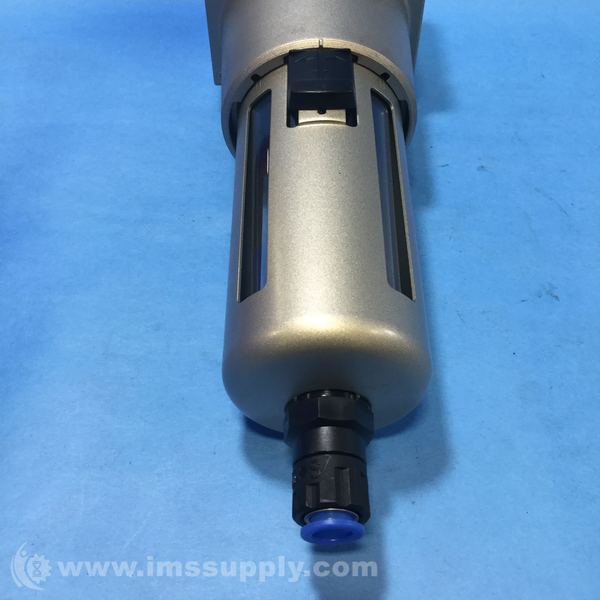

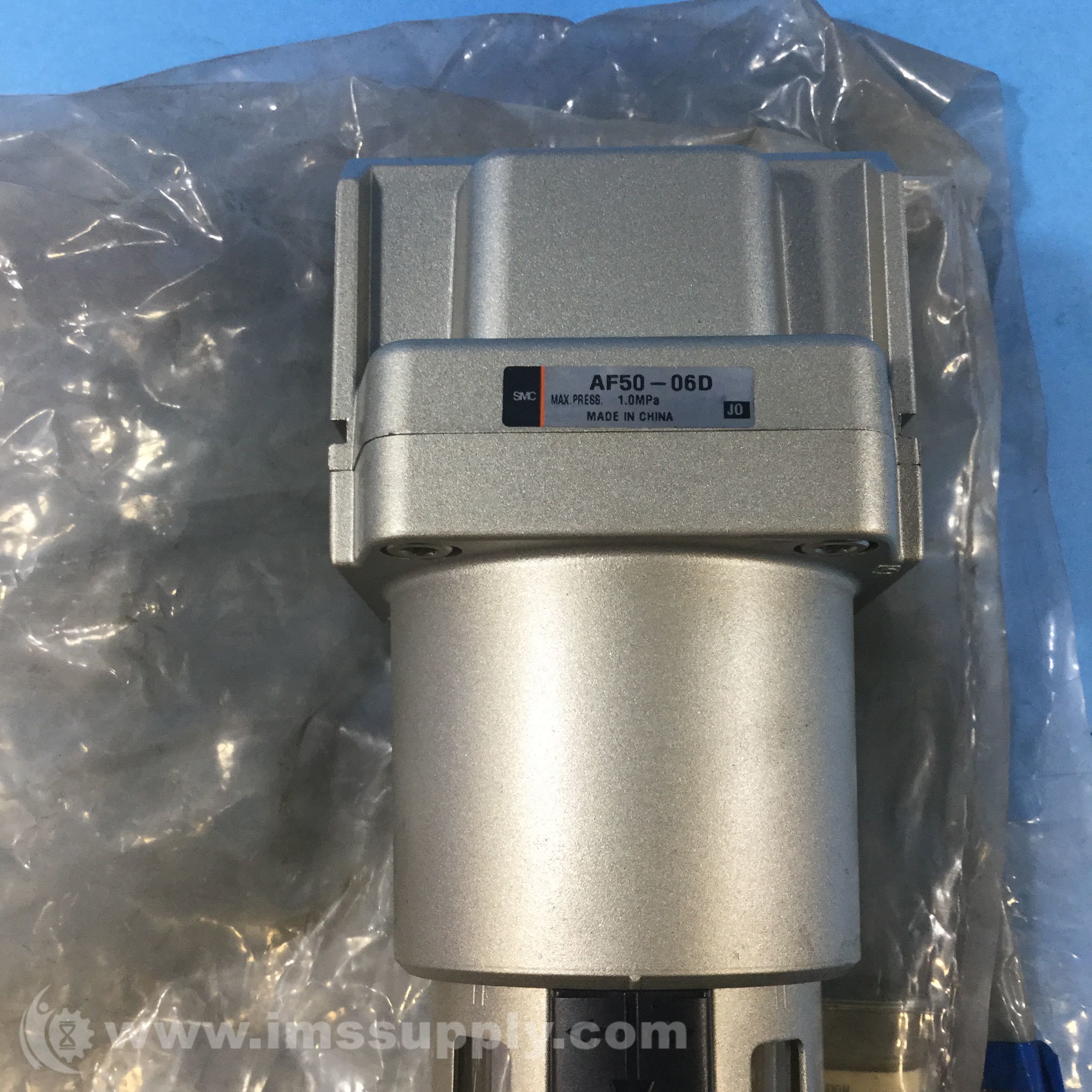

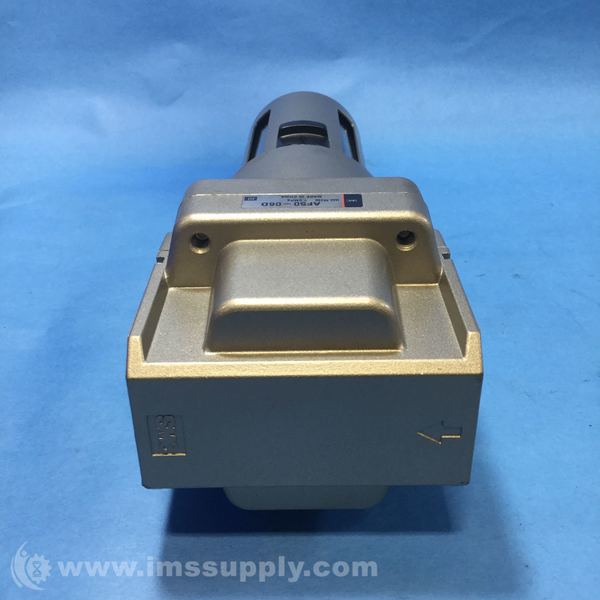

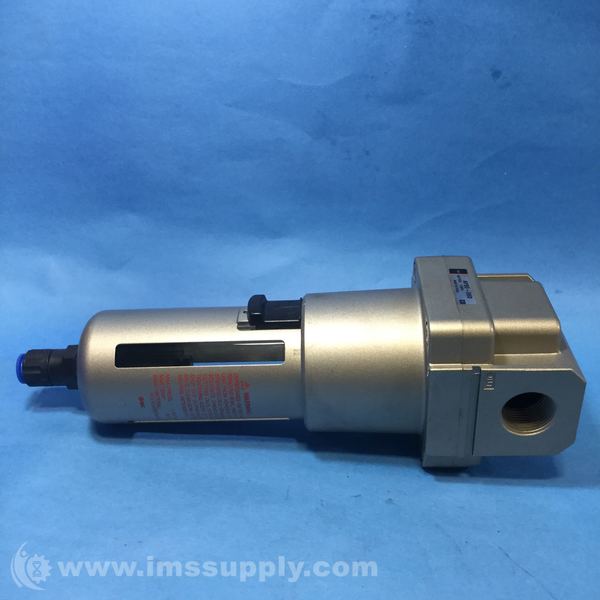

SMC AF50-06D MODULAR STYLE AIR FILTER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AF50-06D
IMS Product Code: 1800504
Packaging: Sold Individually
Description:
SMC AF50-06D Modular Style Air Filter
Modular style air filter with 5 micron filtration, 3/4 BSPT ports, polycarbonate bowl, and automatic normally open drain.
Specifications
- Filter Type: Modular Style Filter
- Micron Rating: 5 micron
- Port Size: 3/4 BSPT
- Bowl Material: Polycarbonate Bowl
- Drain Type: Automatic (Normally Open)
- Body Size: 50
- Drain Method: Automatic
- Filter Rating: 5 µm
- Element Life: 2 yr
- Bowl Capacity: 1.52 oz
- Fluid Compatibility: Air
- Overall Length: 284 mm
- Overall Width: 90 mm
- Overall Height: 90 mm
- Maximum Operating Pressure: 145 psi
- Proof Pressure: 218 psi
- Max Operating Temperature: 140 degrees F
- Port Gender: Female
- Thread Standard: BSPT
- Standards Met: ASTM B117-07a
- Weight: 2.78 lbs
