SMC AKH12 CHECK VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AKH12
IMS Product Code: 2152750
Packaging: Sold Individually
Description:

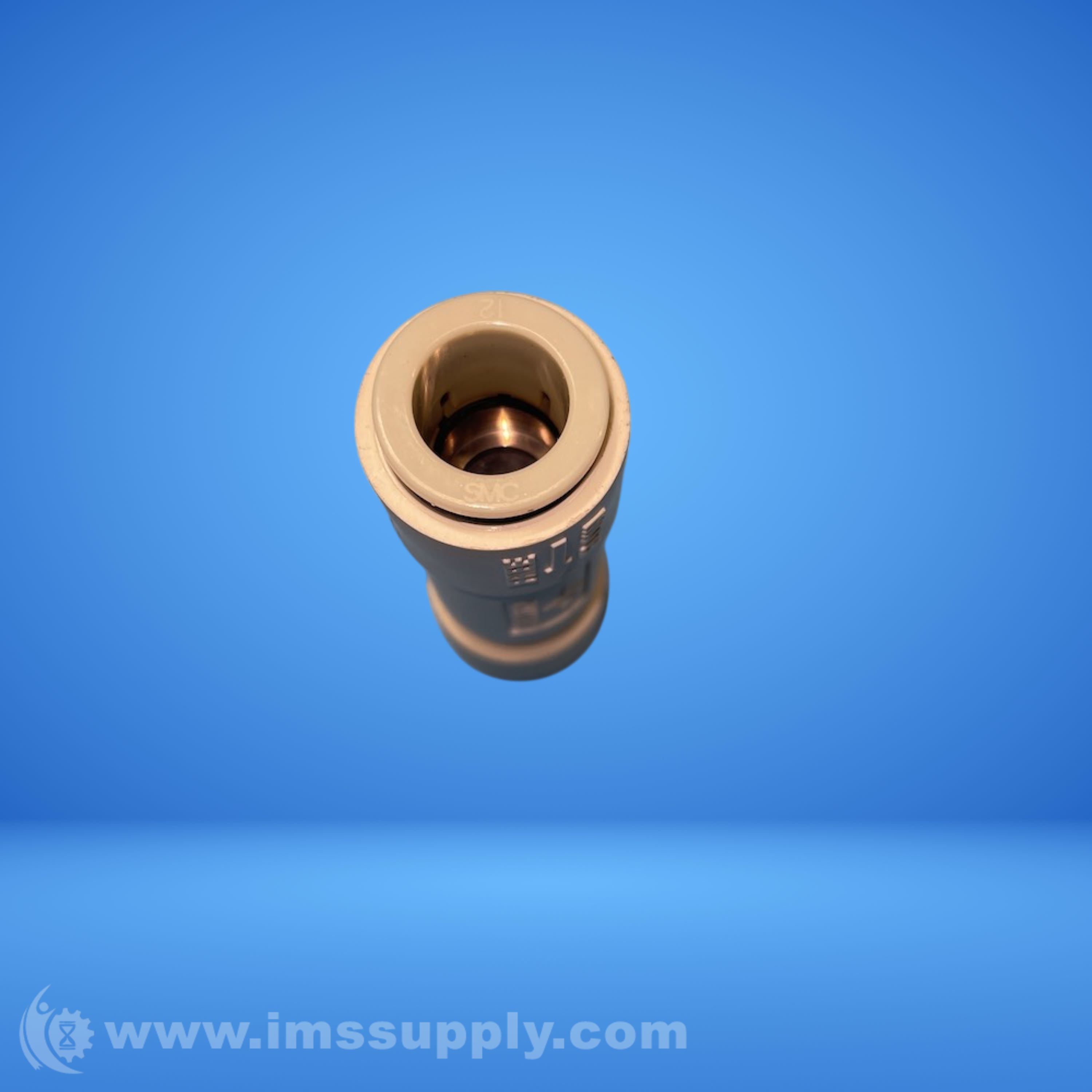

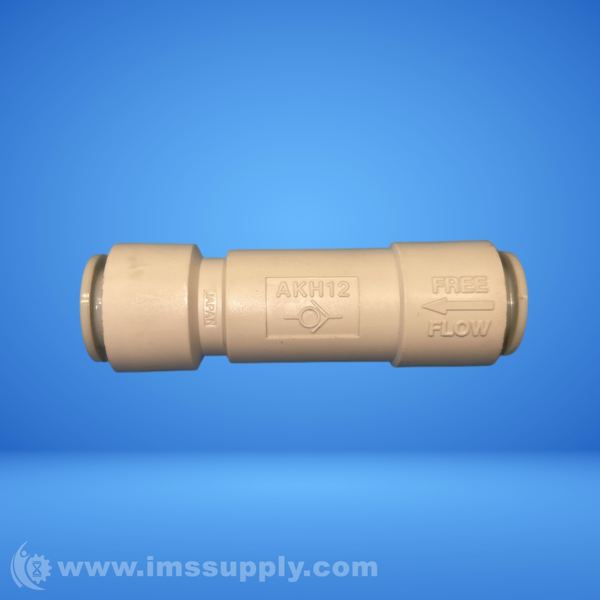

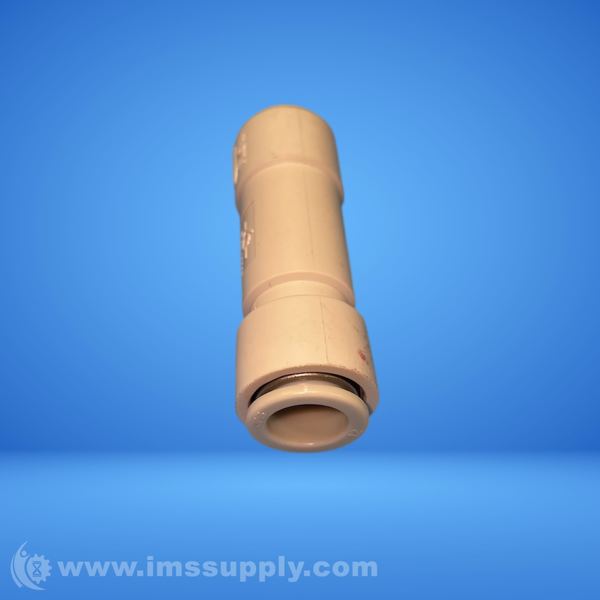

SMC AKH12 Check Valve
Straight type check valve with one-touch fitting, compact and lightweight design, suitable for various pneumatic applications.
Specifications
- Series: AK/AKH/AKB
- Type: Check Valve
- Body Material: PBT
- Seal Material: Nitrile
- Port Connection Type: Push To Connect
- Applicable Tube O.D.: 12 mm
- Cracking Pressure: 0.005 MPa
- Operating Pressure Range: -100 kPa to +1 MPa
- Operating Temperature Range: -5 to +60 degrees C
- Overall Length: 70.2 mm
- Overall Width: 21.7 mm
- Flow Coefficient Cv Flow Factor Kv: 34 mm˛
- Number Of Ports: 2
- Port Gender: Female
- Piping Type: Inline
- Proof Pressure: +1.5 MPa
- Vacuum: -100 kPa
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
