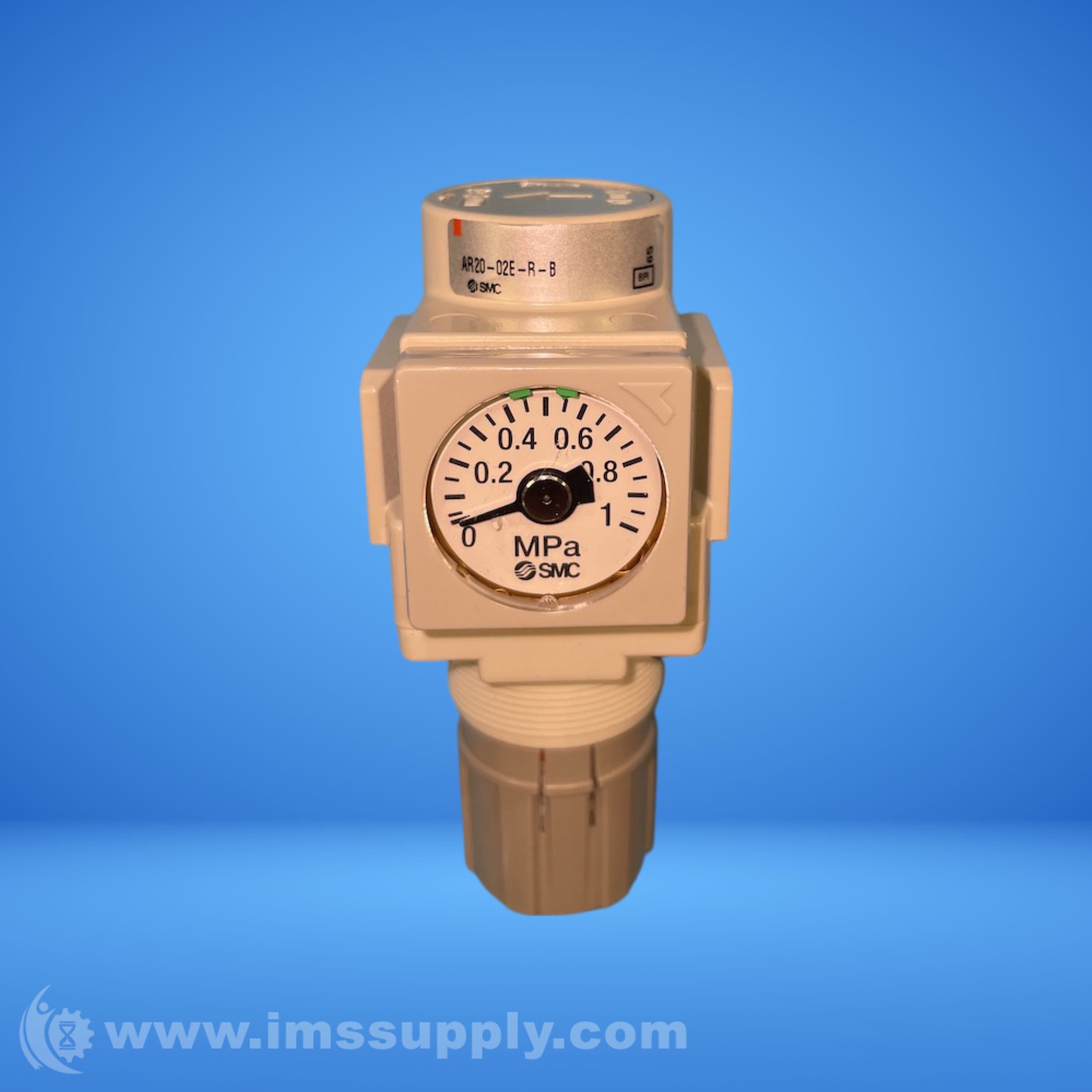

SMC AR20-02E-R-B MODULAR AIR REGULATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AR20-02E-R-B
IMS Product Code: 2141346
Packaging: Sold Individually
Description:
SMC AR20-02E-R-B Modular Air Regulator
Modular Air Regulator - 1/4 in Inlet Port, Rc Inlet Thread, Straight, 1/4 in Outlet Port, Rc Outlet Thread, Straight, 7 to 125 psi
Specifications
- Set Pressure Range: 7 to 125 psi
- Knob Type: Downward Knob
- Body Size: 20
- Maximum Operating Pressure: 145 psi
- Inlet Port Size: 1/4 in
- Inlet Port Type: Straight
- Series/System: AR-B
- Pressure Gauge Included: Square Embedded Type Pressure Gauge (with Limit Indicator)
- Mounting Type: Without mounting option
- Outlet Port Size: 1/4 in
- Outlet Port Type: Straight
- Weight: 0.26 kg
- Product Type: Standard Air Regulators
- Backflow Function: Without Backflow Function
- Pressure Unit: Name Plate and Pressure Guage in SI Units: MPa
- Outlet Port Thread Type: Rc
- Thread Type: Rc
- Port Size: 1/4
- Option a: Without Mounting Option
- Option b: Square Embedded Type Pressure Gauge (With Limit Indicator),Without Set Nut (For Panel Mount)
- Semi-Standard a: 0.05 To 0.85 Mpa Setting
- Semi-Standard b: Relieving Type,Flow Direction: Right to Left,Downward,Name Plate And Pressure Gauge In Imperial Units: MPa
- Made To Order: Standard
