SMC AR40-N04H-Z PNEUMATIC REGULATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AR40-N04H-Z
IMS Product Code: 1212976
Packaging: Sold Individually
Description:

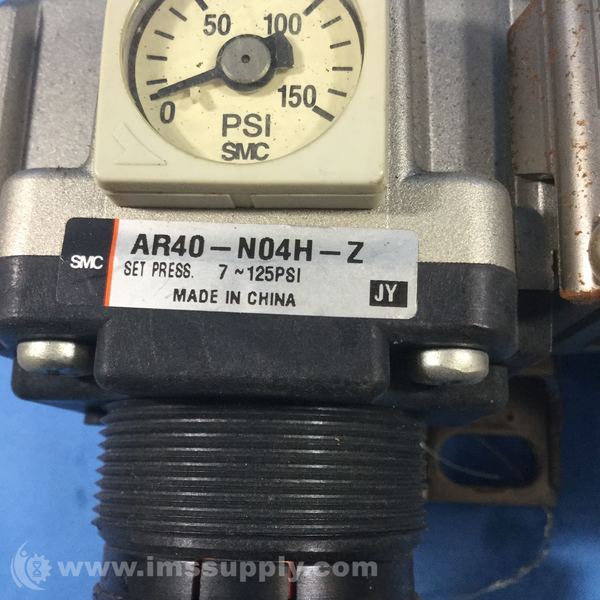

SMC AR40-N04H-Z Pneumatic Regulator
Standard Air Regulator - 215 scfm, NPT 0.5000 Port, 7.30 to 123 psi
Specifications
- Series: AR MASS PRO
- Weight: 1.19 lbs
- Brand: SMC
- MPN: AR40-N04H-Z
- Pressure Range: 7-125PSI
- Port Size: 1/2 NPT
- Maximum Air Flow: 215 scfm
- Set Pressure Range: 7 to 125 psi
- Maximum Set Pressure: 123 psi
- Pressure Control Type: Relief Valve
- Knob Type: Downward Knob
- Included Options: Name Plate, Panel Mount Nut, Pressure Gauge - psi, °F
- Operating Temperature Range: 23 To 140 °F
- Fluid Comp: Air
- Standards Met: ASTM B117-07a, JIS Z 2371
- Proof Pressure: 217 psi
- Overall Length: 128 mm
- Overall Width: 68 mm
- Overall Height: 70 mm
- Max Operating Temperature: 140 °F
- Minimum Set Pressure: 7.3 psi
- Body Size: 40
- Thread Standard: NPT
- Maximum Operating Pressure: 145 psi
- Port Gender: Female
- Inlet Port Type: Straight
- Min Operating Temperature: 23 °F
- Series/System: AR
- Pressure Gauge Included: Without Pressure Gauge
- Mounting Type: With Set Nut (For Panel Mount)
- Outlet Port Size: 1/2 in
- Outlet Port Type: Straight
Used (Special):

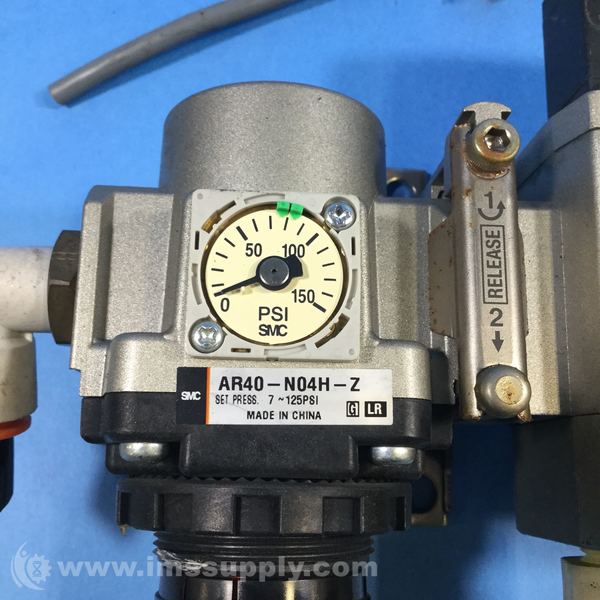

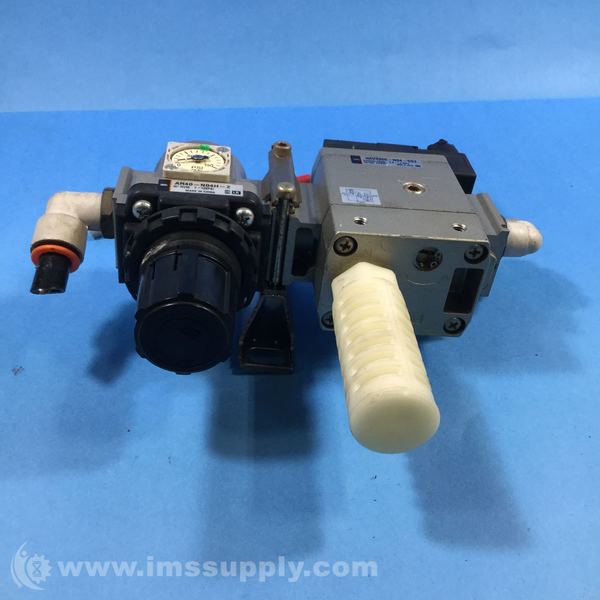

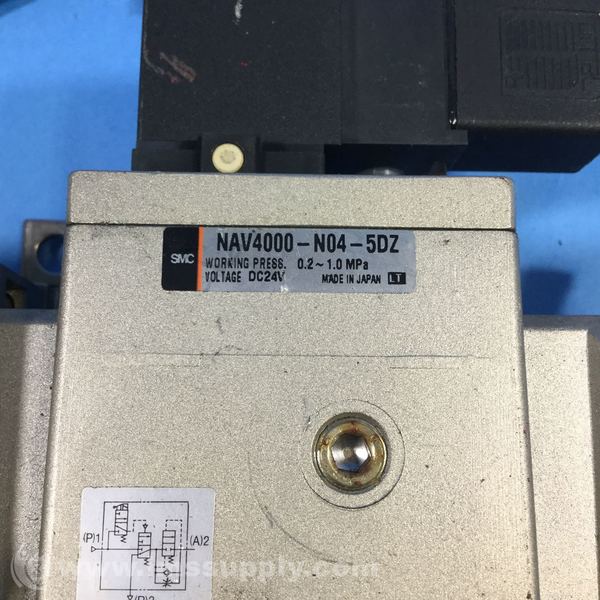

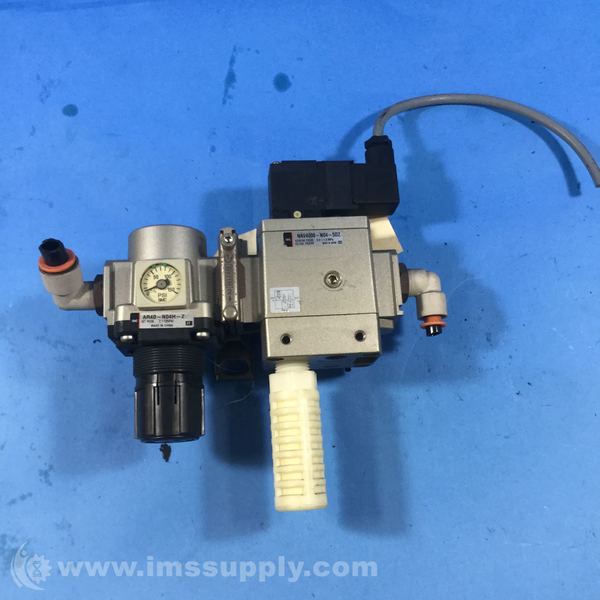

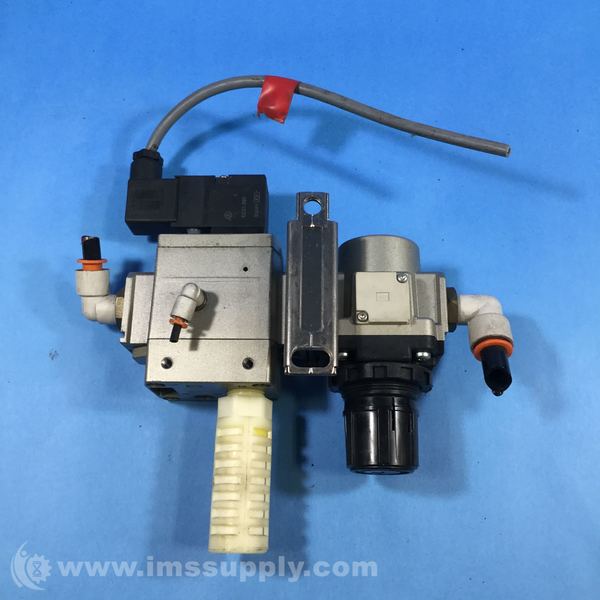

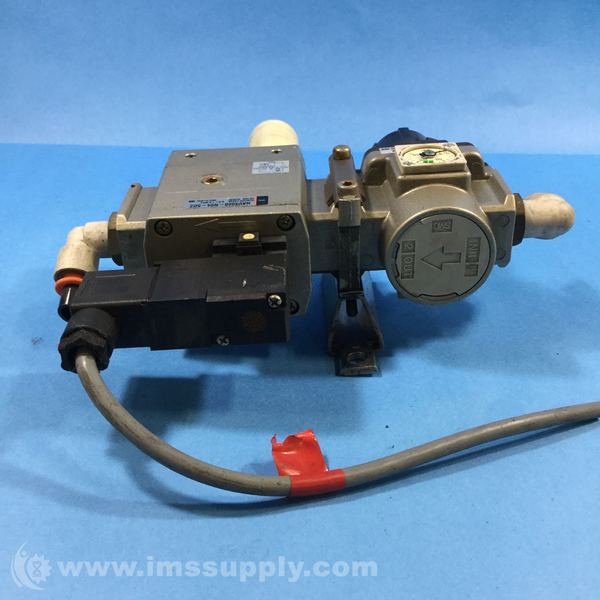

Attached SMC NAV4000-N04-5DZ and fittings.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
ATTACHED TO SMC NAV4000-N04-5DZ AND ADDITIONAL PERIPHERAL PARTS
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
