SMC ARB250-00-A INTERFACE REGULATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ARB250-00-A
IMS Product Code: 1918760
Packaging: Sold Individually
Description:

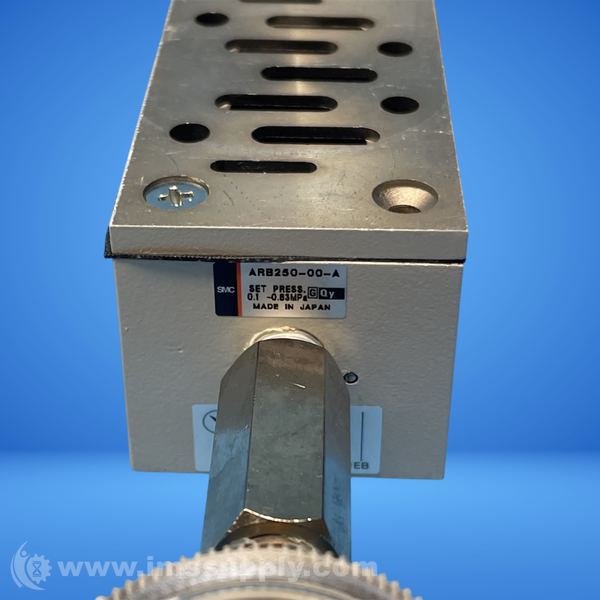

SMC ARB250-00-A Interface Regulator
SMC ARB250-00-A interface regulator for air systems, compatible with VS7-6 solenoid valves, with a regulation port on side A.
Specifications
- Interface Regulator Model: ARB250
- Applicable Solenoid Valve: VS7-6
- Regulation Port: A
- Proof Pressure: 1.5 MPa
- Max Operating Pressure: 1.0 MPa
- Set Pressure Range: 0.1 to 0.83 MPa
- Ambient and Fluid Temperature: 5 to 60 degrees C
- Pressure Gauge Port Size: 1/8
- Weight: 0.55 kg
- Air Supply Side Effective Area: 25 mm2 (at P=0.7MPa, P1=0.5MPa)
- Air Exhaust Side Effective Area: 18 mm2 (at P2=0.5MPa)
- Country of Origin: Japan

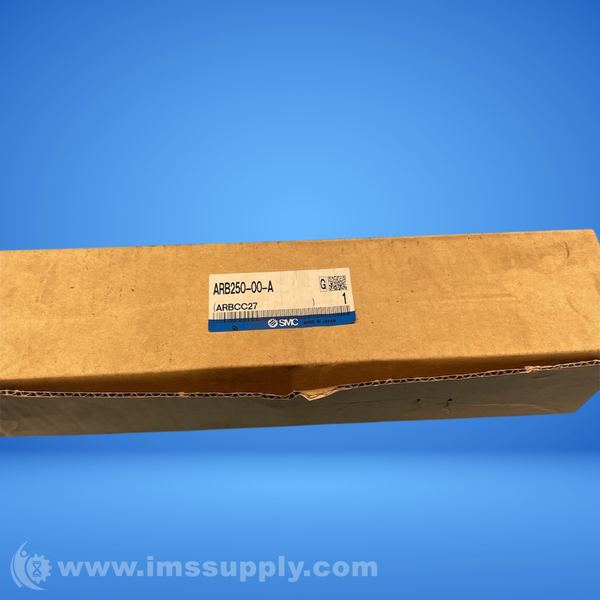

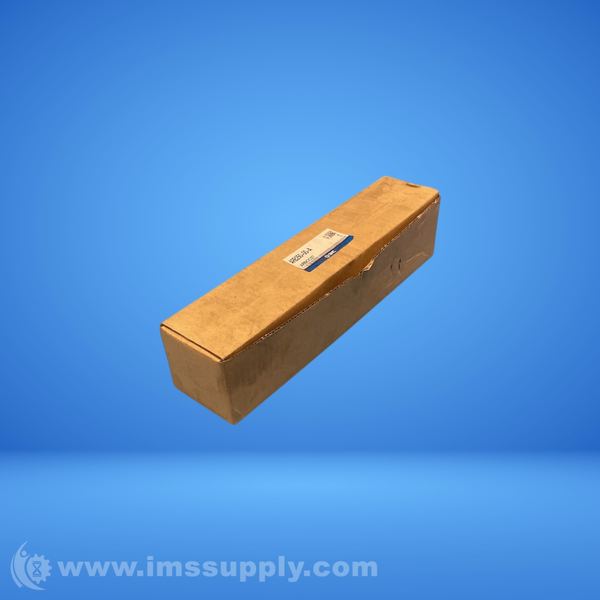

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):

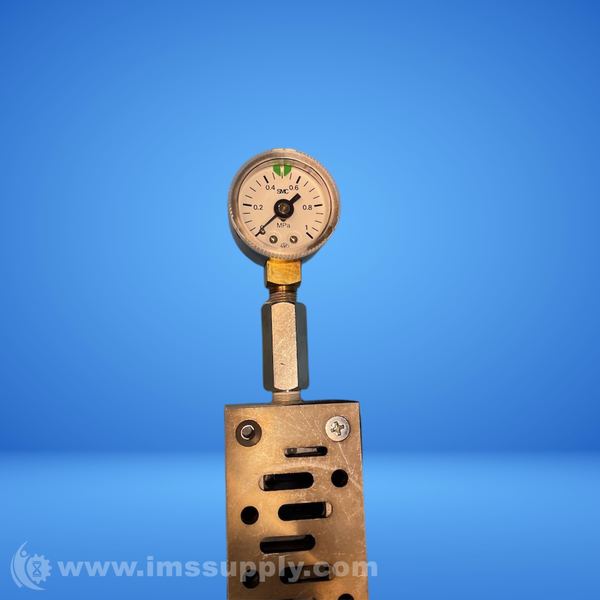

Fittings and gauge attached.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
