SMC ARP30-02BG, PRECISION REGULATOR - 0.04 SCFM, 1/4 BSPT
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ARP30-02BG
IMS Product Code: 1789056
Packaging: Sold Individually
Description:
SMC ARP30-02BG, Precision Regulator - 0.04 scfm, 1/4 BSPT, 0.73 to 58 psi
Specifications:
- Air flow capacity: 0.04 scfm
- Operating temperature range: -5 to 60 °C
- Port type: 1/4 BSPT
- Overall length: 117 mm
- Maximum set pressure: 58 psi
- Overall width: 108 mm
- Set pressure range: 0.73 to 58 psi
- Overall height: 53 mm
- Knob type: Rising
- Maximum operating pressure: 101 psi
- Included options: Mounting Bracket, Round Threaded Gauge
- Maximum operating temperature: 60 °C
- Fluid compatibility: Air
- Thread standard: Rc
- Standards met: CE, UL, CSA, ISO, JIS, EN
- Port gender: Female
- Proof pressure: 174 psi
- Minimum set pressure: 0.73 psi
New - Open Box (Special):

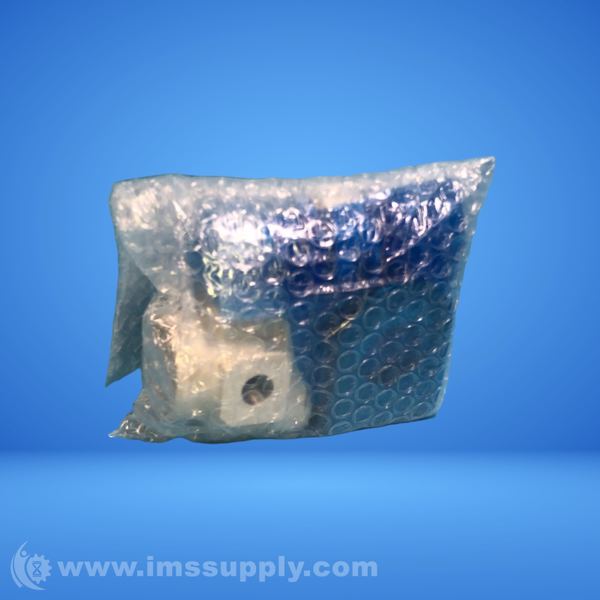

Comes with an SMC G36-4-01 and additional hardware
