SMC AS2201F-02-06S FLOW CONTROL VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AS2201F-02-06S
IMS Product Code: 1834944
Packaging: Sold Individually
Description:

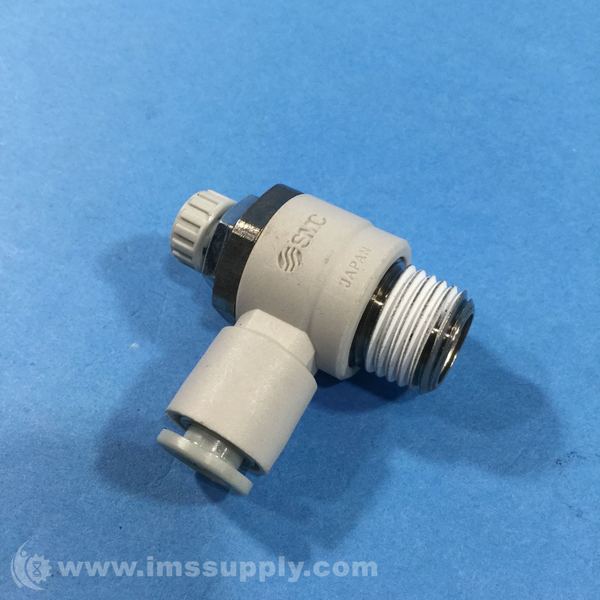

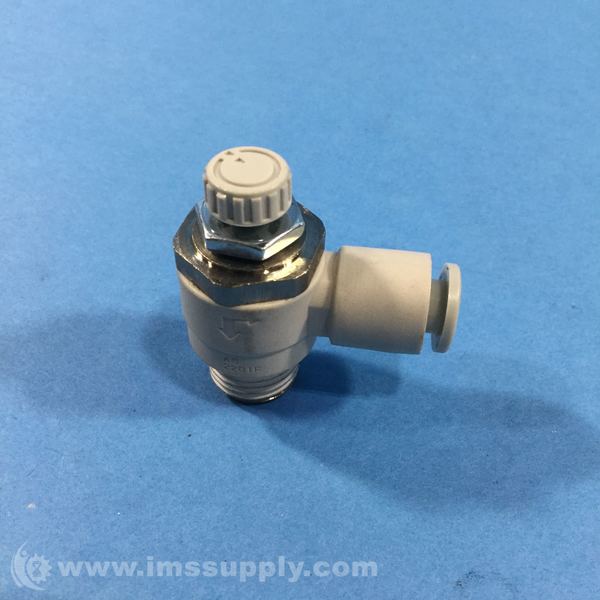

SMC AS2201F-02-06S Flow Control Valve
Elbow flow control valve with push-to-connect fittings, meter-out control, and 1/4 BSPT threaded ports.
Specifications
- Series: AS***F
- Port Size: 1/4 inch
- Thread Standard: BSPT
- Weight: 0.07665 lb
- Piping Type: Elbow
- Metering: Meter Out
- Tube Size: 6 mm
- Operating Medium: Air
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.1 to +1 MPa
- Operating Temperature Range: -5 to +60 degrees C
- Valve Function: Needle
- Port Connection Type: Push To Connect
- Output Port Type: 1/4 Female BSPT Threaded
- Body Material: Brass, PBT
- Overall Width: 18.5 mm
- Overall Height: 34.4 mm
- Flow Coefficient: 6 mm˛
- Seal Material: Nitrile
- Standards Met: JIS
- Overall Length: 39.9 mm
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Body Size: 1/8, 1/4 standard
- Type: Speed Controller
- Inlet Port Type: Threaded
- Threaded Inlet Port: R 1/4 Male
- Tube Outlet Port: 6mm
- Manufacturer Series: AS
- Outlet Port Type: Threaded, Tube
- Threaded Outlet Port: R 1/4 Male
- Threaded Outlet Thread Standard: R
- Threaded Outlet Thread Gender: Male
- Threaded Inlet Thread Gender: Male
- Threaded Inlet Thread Standard: R
- Threaded Inlet Thread Size: 1/4 in
- Threaded Outlet Thread Size: 1/4 in
- Country of Origin: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
