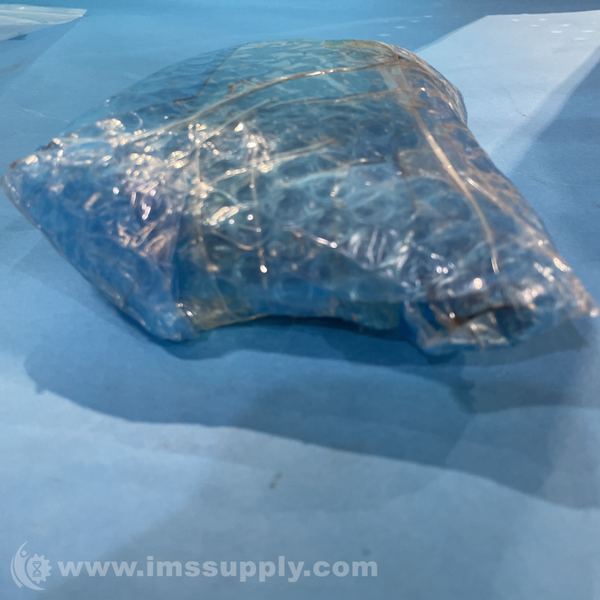

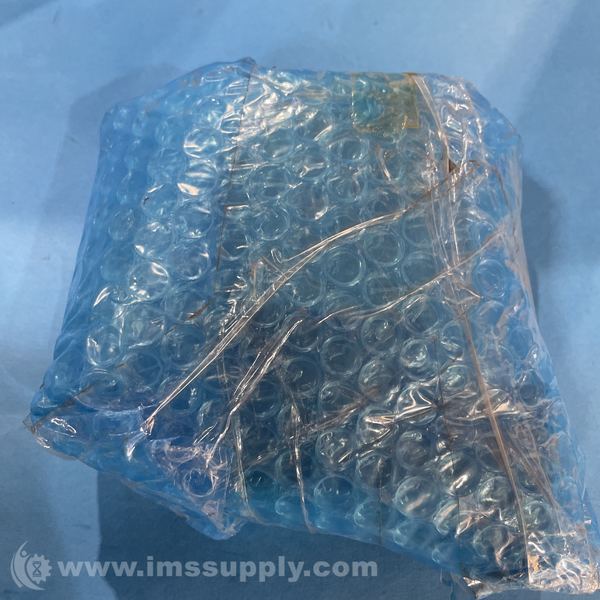

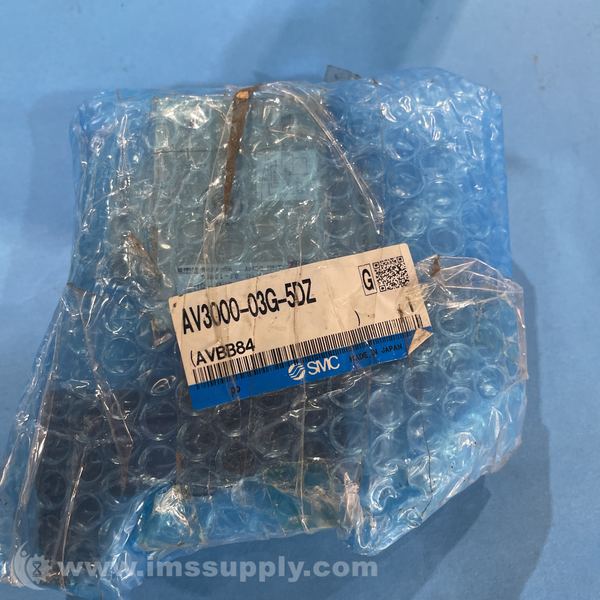

SMC AV3000-03G-5DZ SOFT START-UP VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AV3000-03G-5DZ
IMS Product Code: 2136045
Packaging: Sold Individually
Description:
SMC AV3000-03G-5DZ Soft Start-Up Valve
Soft start-up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply.
Specifications
- Port size: 3/8
- Proof pressure: 1.5 MPa
- Operating pressure range: 0.2 to 1 MPa
- Pressure gauge port size: 1/8
- Ambient and fluid temperature: 0 to 60C
- Effective area (mm2): 37
- Mass (kg): 0.48
- Electrical specifications: 100, 200, 110 to 120, 220 VAC (50/60 Hz), 240 VAC (50/60 Hz) 12, 24 VDC
- Pilot valve manual override: Non-locking push type (Flush), Locking type (Tool required), Locking type (Lever)
- Allowable voltage fluctuation: -15 to +10% of rated voltage
- Coil insulation type: Equivalent to B type (130C)
- Apparent power AC (Current consumption): 5.6 VA (50 Hz), 5.0 VA (60 Hz)
- Current consumption DC: 3.4 VA (2.1 W)/50 Hz, 2.3 VA (1.5 W)/60 Hz
- Electrical entry: Grommet, Type D DIN terminal, Type Y DIN terminal
- Option specifications: Indicator light/Surge voltage suppressor (2)
- Modular connectivity: FRL components
- Available voltages: 12, 24VDC; 100, 110~120, 200, 220VAC
- Effective flow area: Large
- Port sizes: 1/4, 3/8, 1/2, 3/4
- Country/Region of Manufacture: Japan
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
