SMC AVL4000-N04-5DZM SOFT START LOCK-OUT VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AVL4000-N04-5DZM
IMS Product Code: 1779149
Packaging: Sold Individually
Description:

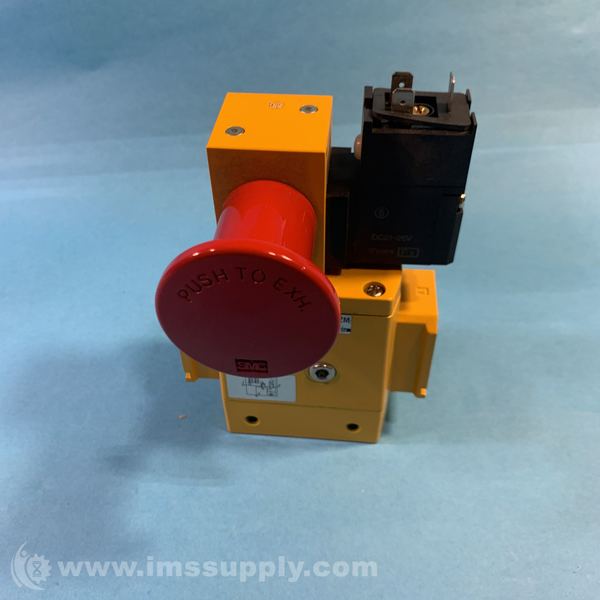

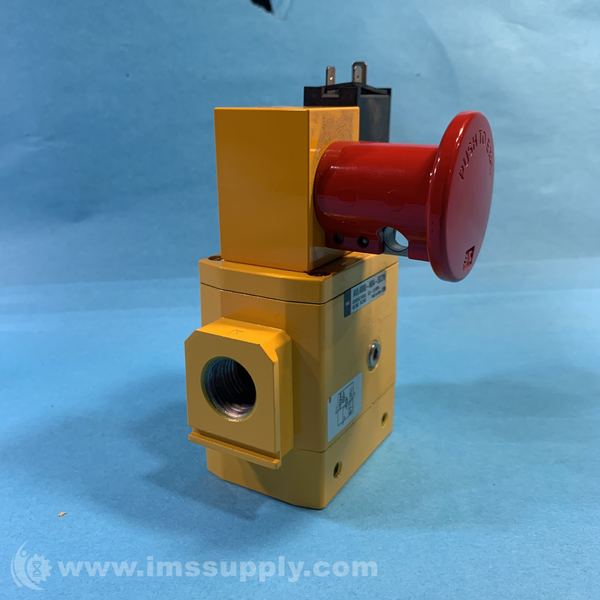

SMC AVL4000-N04-5DZM Soft Start Lock-Out Valve
Solenoid-operated soft start lock-out valve with 1/2 NPT ports, 24V DC supply voltage, and OSHA compliance.
Specifications
- Series: AV
- Type: Soft Start Lock-Out Valve
- Body Port: 1/2 NPT
- Nominal Size: 1/2 in
- End Style: NPT
- Pressure Range: 30 to 150 psi
- Operating Pressure Range: +0.2 to +1 MPa
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Manual Override Type: Non-Locking Push Type (Flush)
- Surge Suppression Included: Surge Suppressor With Light
- Operating Temperature Range: 0 to +60 degrees C
- Overall Length: 167 mm
- Overall Width: 52 mm
- Overall Height: 98 mm
- Flow Coefficient Cv Flow Factor Kv: 61 (1 (P) to 2 (A)) mm, 76 (2 (A) to 3 (R)) mm
- Solenoid Power Consumption: 1.8 W
- Flow Direction: Left-to-Right
- Standards Met: OSHA
Used (Special):
Attached parts: SMC ISE30A-N01-P, SMC DC21-26V, unknown brass fitting x2, mounting brackets. Second component: SMC AF40-N04-Z, SMC VHS40-N04-Z, SMC AN300, SMC gauge, unknown brass fitting x2, mounting brackets. Both components connected by yellow hose, mounted on black metal plate.
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Attached: SMC DC21-26V. Mounted on metal plate
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
SMC solenoid valve part number DC21-26V attached.
