SMC AW30-02BD-B MODULAR FILTER REGULATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AW30-02BD-B
IMS Product Code: 1940669
Packaging: Sold Individually
Description:

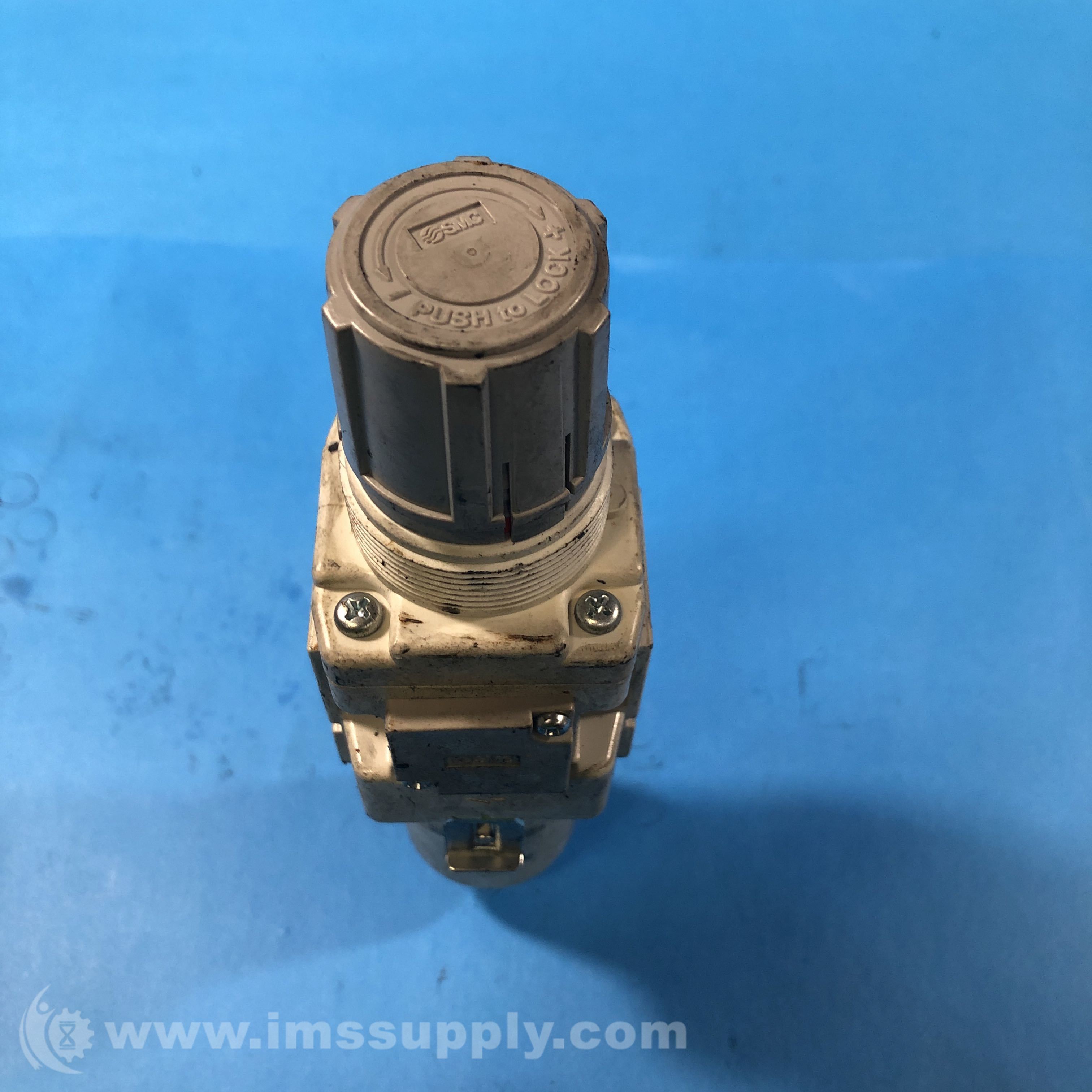

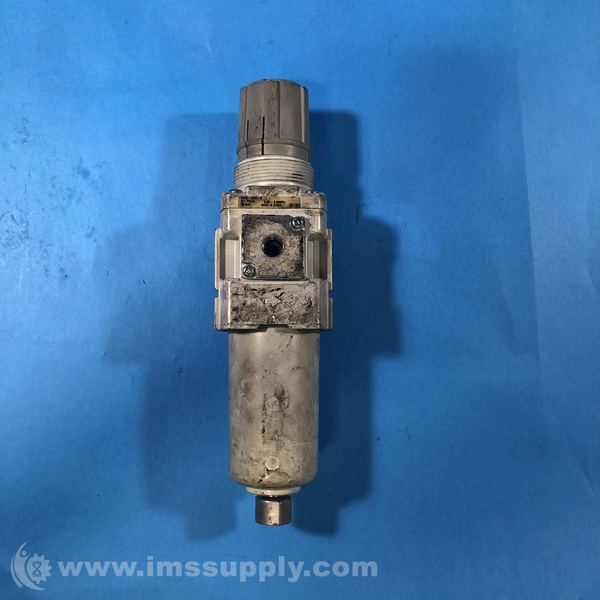

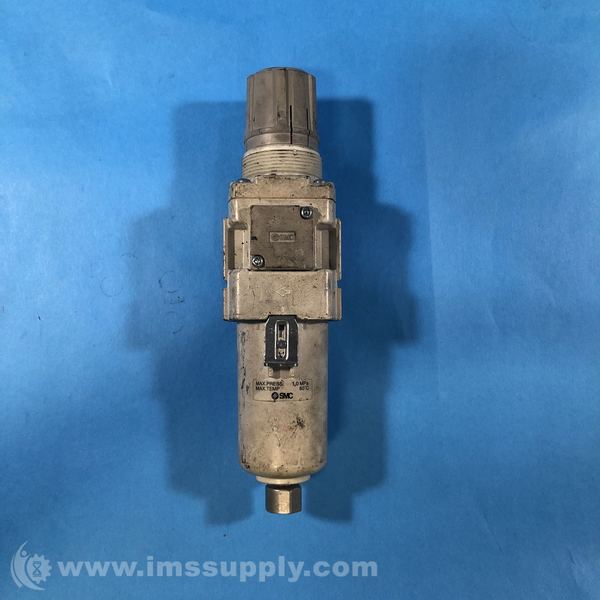

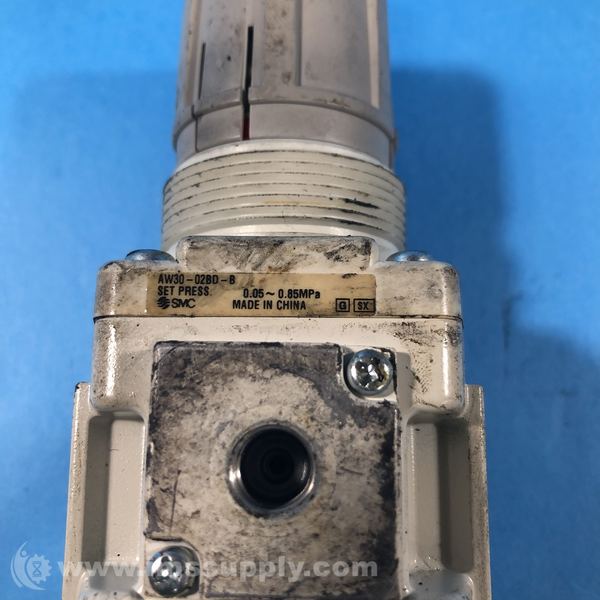

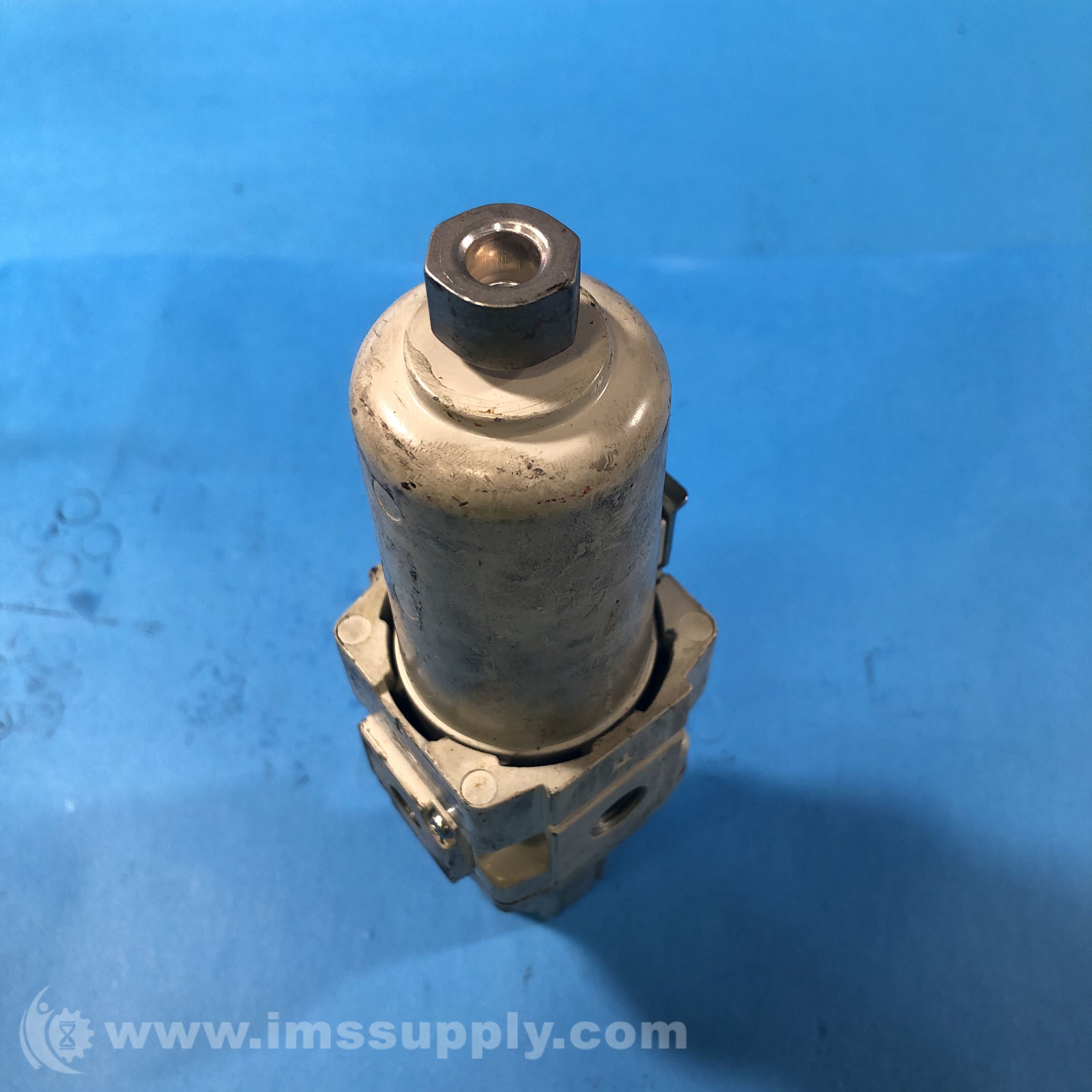

SMC AW30-02BD-B Modular Filter Regulator
This is a combination filter/regulator that minimizes space and piping by integrating two units into one. It features a relieving regulator with a maximum set pressure of 100 psi. The unit is part of the modular air preparation units family and can be combined with other similar sized products.
Specifications
- Series: AW-A
- Body Size: 30
- Port Size: 1/4
- Thread Type: Rc
- Thread Standard: Rc
- Maximum Set Pressure: 100 psi
- Weight: 0.36 kg
- Rated Filtration: 2, 10, 20, 40, 70 or 100 m
- Semi-Standard: 0.05 to 0.85 MPa Setting, Polycarbonate Bowl
- Option: With Bracket, Float Type Auto Drain N.O., Without Pressure Gauge
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
