SMC CEU1P COUNTER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CEU1P
IMS Product Code: 2086387
Packaging: Sold Individually
Description:

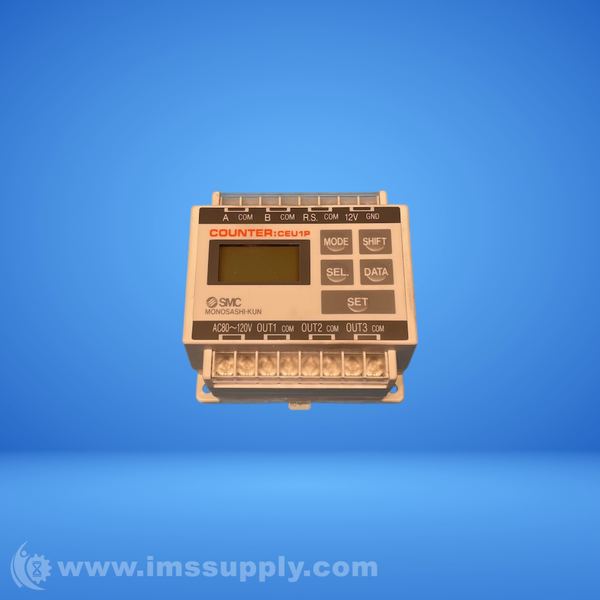

SMC CEU1P Counter
3-point preset counter
Specifications
- Model: CEU1P
- Type: 3-point preset counter
- Mounting: Surface mounting (DIN rail or Screw stop)
- Operating System: Adding - subtracting type
- Operation Modes: Operating mode, Data setting mode
- Reset System: External reset terminal
- Display System: LCD (With back light)
- Number of Digits: 5 digits display (-9999.9 to 9999.9)
- Memory Holding: Preset data (always held) {E2ROM}
- Input Signal Type: Count input, Reset input
- Count Input: No-voltage pulse input
- Pulse Signal System: 90 phase difference input
- Counting Speed: 20 kHz
- Reset Input: R.S. and COM terminals are shorted for 10 ms or more (Pulse input)
- Sensor Power Supply: 10.8 to 13.2 VDC, 60 mA
- Output Signal Type: Preset output
- Preset Output Configuration: Compare/Hold/One-shot (100 ms fixed pulse)
- Output Delay Time: 5 ms or less
- Output Transistor Mode: PNP open collector Max. 30 VDC, 50 mA
- Power Supply Voltage: 80 to 120 VAC 50/60 Hz
- Power Consumption: 10 VA or less
- Withstand Voltage: Between case and AC line: 1500 VAC for 1 min. Between case and signal ground: 500 VAC for 1 min.
- Insulation Resistance: Between case and AC line: 500 VDC, 50 M or more
- Ambient Temperature: 0 to 50 degrees C (without freezing)
- Ambient Humidity: 35 to 85% RH (No condensation)
- Noise Resistance: Square wave noise from a noise simulator (pulse duration 1 ?s) between power supply terminals ?1500 V, I/O line ?600 V
- Shock Resistance: Endurance 10 to 55 Hz; Amplitude 0.75 mm; X, Y, Z for 2 hours each
- Impact Resistance: Endurance 10 G; X, Y, Z directions, 3 times each
- Weight: 250 g or less
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Crack in enclosure/housing.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
