SMC D-A80 REED AUTO SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: D-A80
IMS Product Code: 1215963
Packaging: Sold Individually
Description:

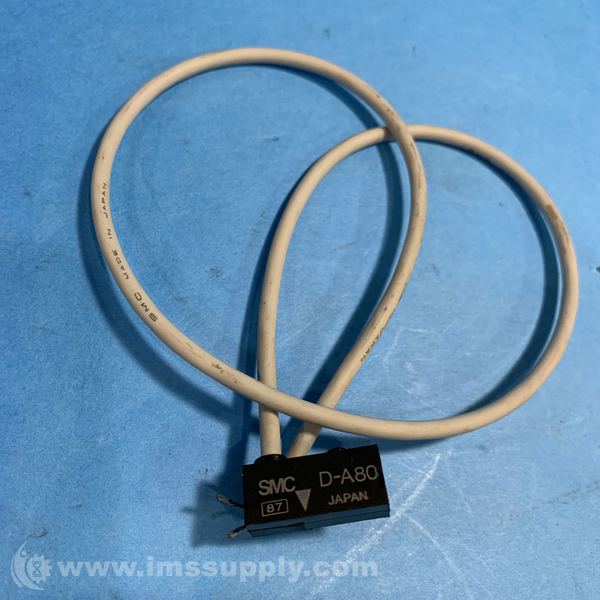

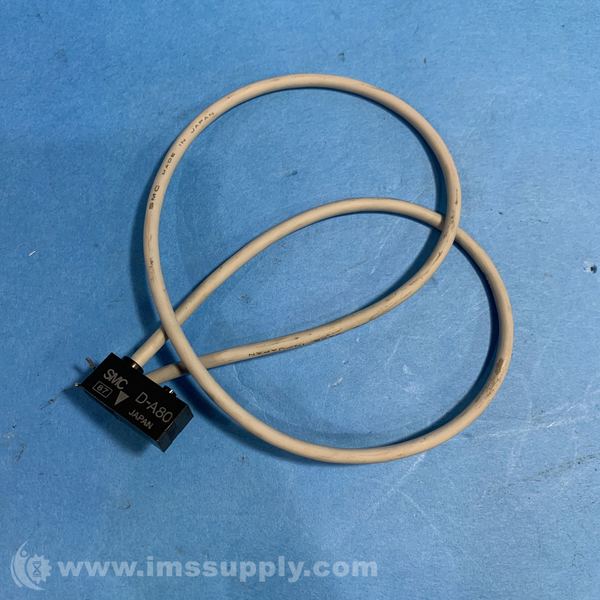

SMC D-A80 Reed Auto Switch
Reed auto switch for detecting magnetic field changes in air cylinders. Suitable for high temperature environments.
Specifications
- Applicable Load: IC Circuit, PLC, Relay
- Electrical Connection: 0.5m Lead Wire
- Maximum Load Current: 20 mA
- Maximum Load Voltage: 100 V ac/dc
- Mounting Type: Band
- Operating Temperature Range: -10 to +60 degrees C
- Overall Height: 11.5 mm
- Overall Length: 23 mm
- Overall Width: 15 mm
- Series: D-
- Standards Met: CE, IEC 529, IP67, JIS C 0920
- Switch Action: Reed
- Weight: 10 g
- Number of Wires: 2
- Minimum Cycle Time: 1.2 ms
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
