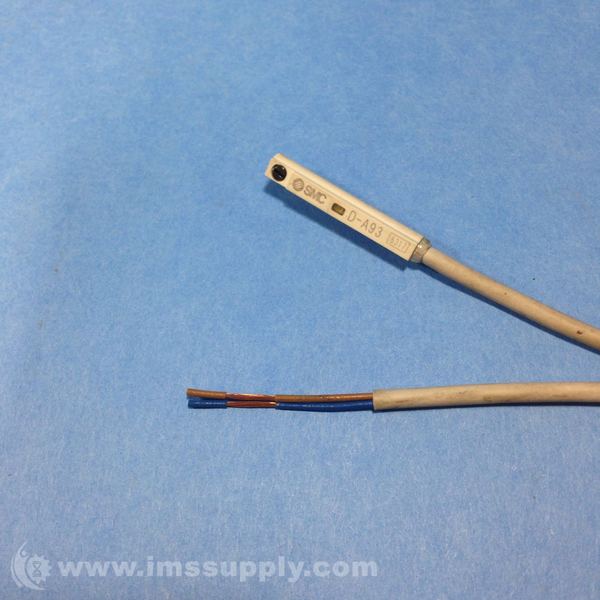

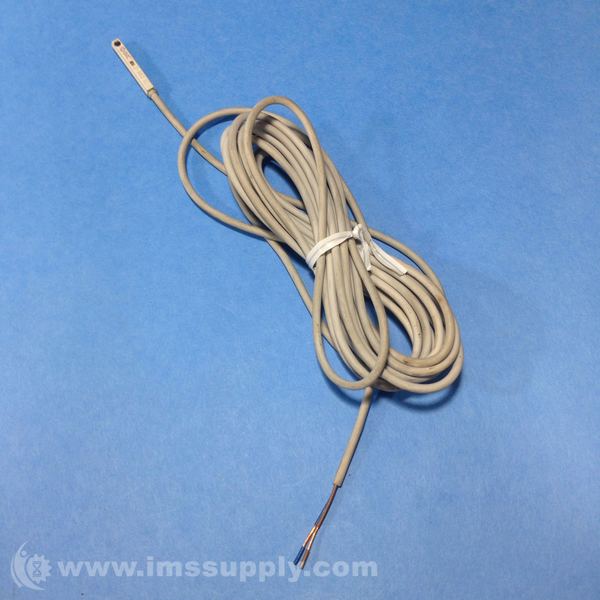

SMC D-A93 REED SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: D-A93
IMS Product Code: 1215967
Packaging: Sold Individually
Sold Individually
Bag of 2
Description:
SMC D-A93 Reed Switch
Direct mounting style reed auto switch sensor for SMC cylinders.
Specifications
- Applicable Load: PLC, Relay
- Electrical Connection: 0.5m Lead Wire
- Fluid Comp: Air
- Maximum Load Current: 20 @ 100 V ac mA, 40 @ 24 V dc mA
- Maximum Load Voltage: 100 V ac, 24 V dc
- Mounting Type: Direct
- Operating Temperature Range: -10 to +60 degrees C
- Overall Height: 4.5 mm
- Overall Length: 24.5 mm
- Overall Width: 4 mm
- Series: D-
- Standards Met: CE, IEC 529, IP67, JIS C 0920
- Switch Action: Reed
- Weight: 6 g
- Sensor Type: Contacting
- Wiring Method: 2-Wire
- Lead wire length: 0.5, 3, 6 m
- Configuration: SPST-NO
- Current Rating: 5 to 40mA
- Voltage Rating (DC): 24 V
- Indicator: Red LED
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, November 10, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 5 In Stock
Ships on Monday, November 10, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
