SMC D-F79 AUTO SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: D-F79
IMS Product Code: 1216009
Packaging: Sold Individually
Description:

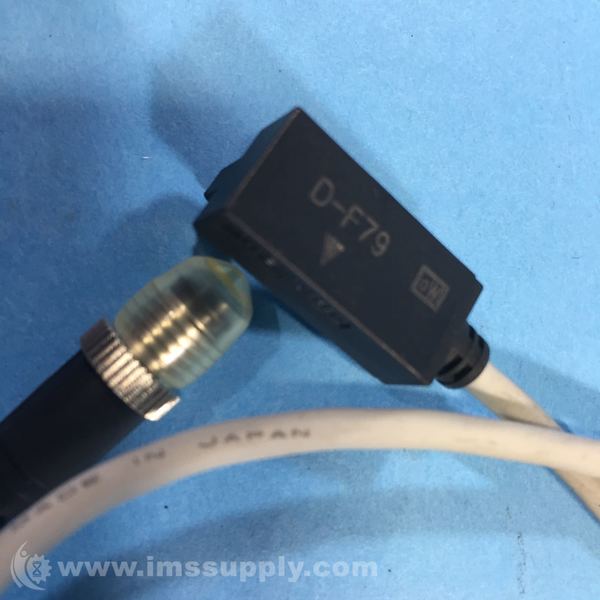

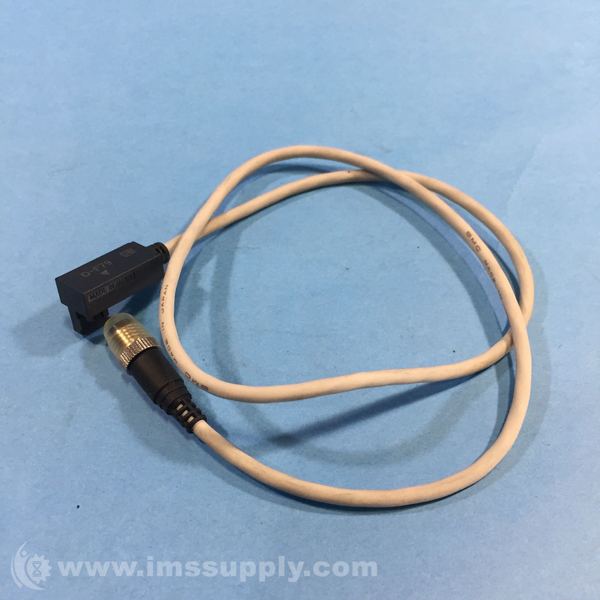

SMC D-F79 Auto Switch
Solid state auto switch, NPN output, 3-wire, rail mount
Specifications
- Type: 3 Wire Solid State NPN
- Operating Voltage: 28VDC or less
- Maximum Current: 150mA or less
- Switch Action: NPN (3-Wire)
- Electrical Connection: 0.5m Lead Wire
- Applicable Load: IC Circuit, PLC, Relay
- Standards Met: CE, IEC 529, JIS C 0920
- Maximum Load Current: 40 mA
- Maximum Load Voltage: 28 V dc
- Fluid Comp: Air
- Operating Temperature Range: -10 to +60 degrees C
- Overall Width: 15 mm
- Overall Height: 11 mm
- Overall Length: 27.6 mm
- Mounting Type: Rail
- Series: D-
- Weight: 13 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 32 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 6 hours and 32 minutes.
Used (Special):
The cable on this part is much longer than some other parts with the same part number.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 32 minutes.
