SMC D-F7NV SOLID STATE AUTO SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: D-F7NV
IMS Product Code: 1216048
Packaging: Sold Individually
Description:

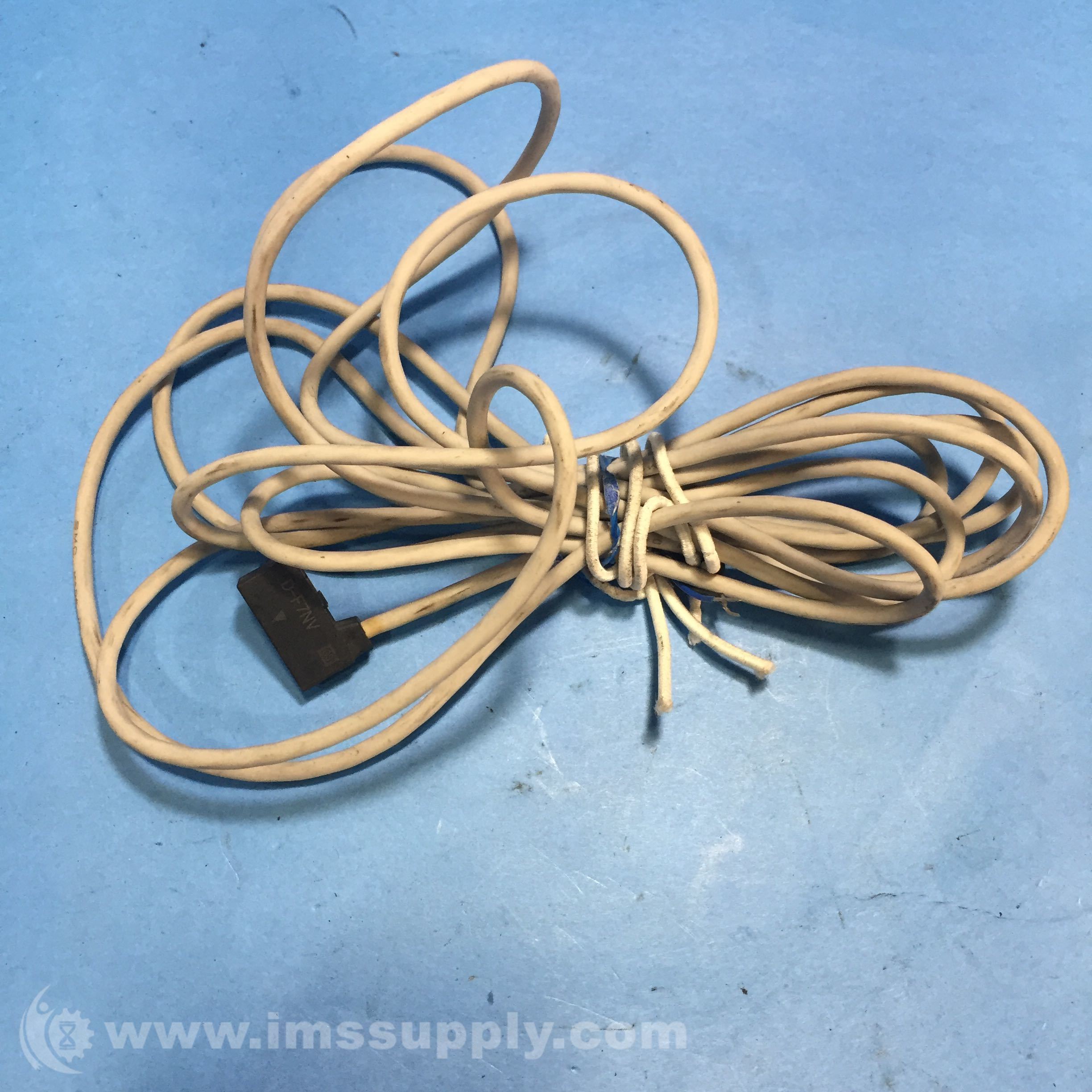

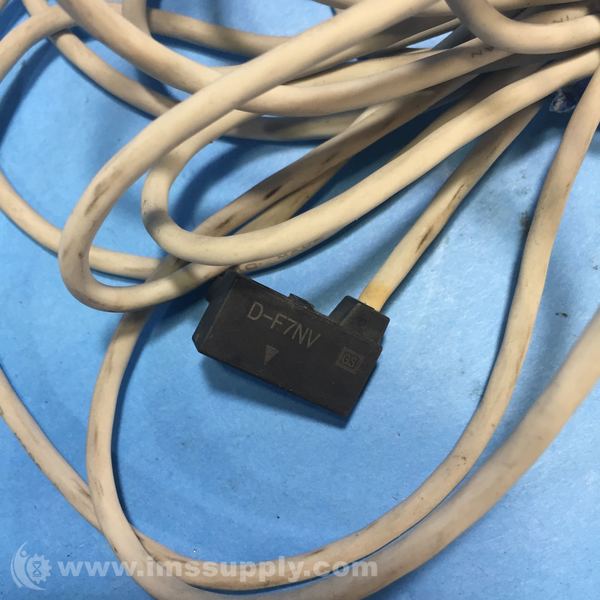

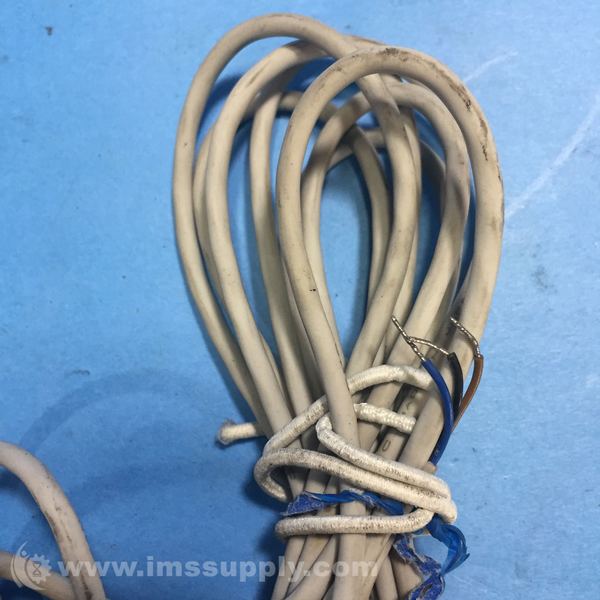

SMC D-F7NV Solid State Auto Switch
Solid state auto switch for actuators and air grippers, NPN output, 3-wire leads, rail mounting.
Specifications
- type: 3 Wire Solid State NPN
- operating voltage: 28CVDC or less
- maximum current: 150mA or less
- switch action: NPN (3-Wire)
- electrical connection: 0.5m Lead Wire
- applicable load: IC Circuit, PLC, Relay
- standards met: CE, IEC 529, JIS C 0920
- maximum load current: 40 mA
- maximum load voltage: 28 V dc
- fluid comp: Air
- operating temperature range: -10 to +60 degrees C
- overall width: 15 mm
- overall height: 15 mm
- overall length: 23 mm
- mounting type: Rail
- series: D-
- weight: 13 g
- lead wire or prewired connector: 0.5m (Or None - See Series Catalog)
- mounting style: Rail mount
- model description: F7NV--Solid State, Gen. Purpose, 3 Wire NPN, Vertical
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
