SMC D-Z73 REED AUTO SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: D-Z73
IMS Product Code: 1216260
Variation: Unspecified
Unspecified
Length: 21 in
Packaging: Sold Individually
Description:

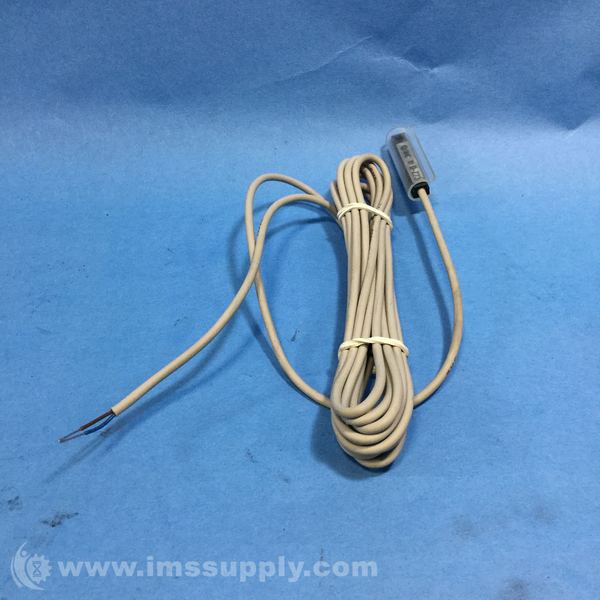

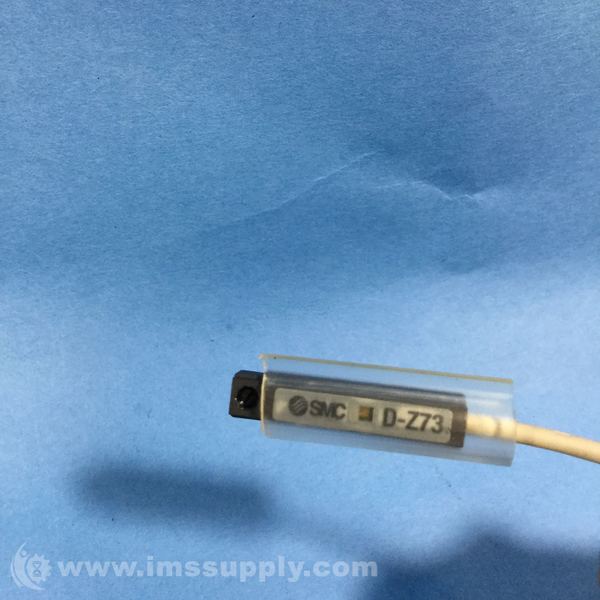

SMC D-Z73 Reed Auto Switch
Reed type auto switch for direct mounting with 0.5m lead wire and 2-wire connection. Compatible with PLC and relay loads. Meets CE, IEC 529, IP67, and JIS C 0920 standards.
Specifications
- Switch Action: Reed
- Electrical Connection: 0.5m Lead Wire
- Applicable Load: PLC, Relay
- Standards Met: CE, IEC 529, IP67, JIS C 0920
- Maximum Load Current: 20 @ 100 V ac mA, 40 @ 24 V dc mA
- Maximum Load Voltage: 100 V ac, 24 V dc
- Fluid Compatibility: Air
- Operating Temperature Range: -10 to +60 degrees C
- Overall Width: 6.2 mm
- Overall Height: 5.5 mm
- Overall Length: 30.5 mm
- Mounting Type: Direct
- Series: D-
- Weight: 7 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 19 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 11 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
The wire on these parts is considerably shorter than on other parts with the same part number.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
This part is missing a co-ax.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
with HTP connector attached
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
