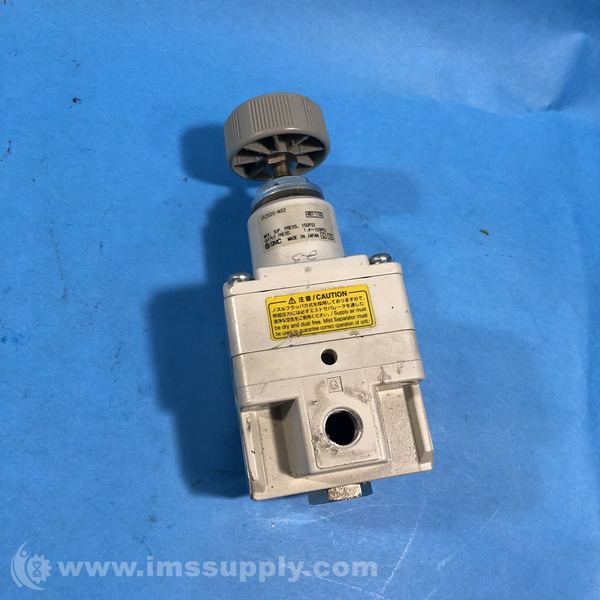

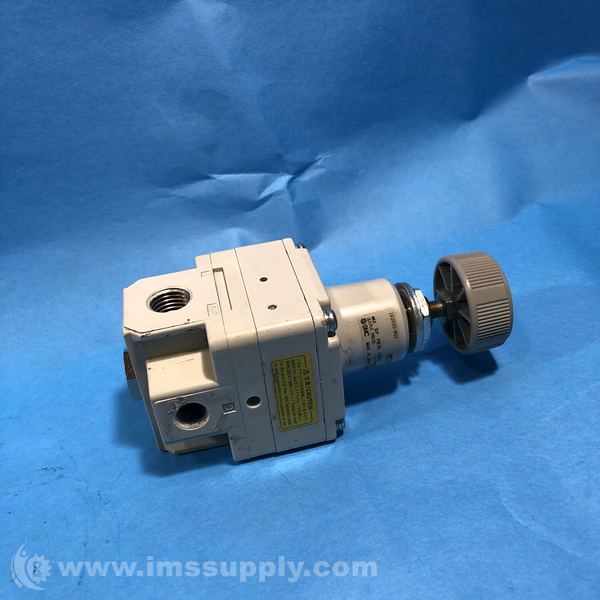

SMC IR2020-N02 PRECISION REGULATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: IR2020-N02
IMS Product Code: 1910944
Packaging: Sold Individually
Description:
SMC IR2020-N02 Precision Regulator
Pneumatic precision regulator with 1/4 NPT ports, relief valve type, rising knob, 1.45-116 psi set pressure range
Specifications
- Series: IR PRECISION REGULATOR
- Size: 1/4INCH MODULAR (NPT)
- Weight: 0.81 lbs
- Maximum Air Flow: 0.16 scfm
- Maximum Set Pressure: 116 psi
- Set Pressure Range: 1.45 to 116 psi
- Pressure Control Type: Relief Valve
- Knob Type: Rising
- Standards Met: JIS
- Operating Temperature Range: -5 to 60 degrees C
- Overall Length: 124 mm
- Overall Width: 50 mm
- Overall Height: 50 mm
- Maximum Operating Pressure: 145 psi
- Body Size: IR2000
- Port Gender: Female
- Minimum Set Pressure: 1.45 psi
- Inlet Port Size: 1/4 in
- Inlet Port Type: Straight
- Mounting Type: Without Mounting Option
- Outlet Port Size: 1/4 in
- Outlet Port Type: Straight
- Pressure Gauge Included: Without Pressure Gauge
- Type: Pneumatic
- Country of Origin: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
