SMC IS3010-02L5 PRESSURE SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: IS3010-02L5
IMS Product Code: 1811249
Packaging: Sold Individually
Description:

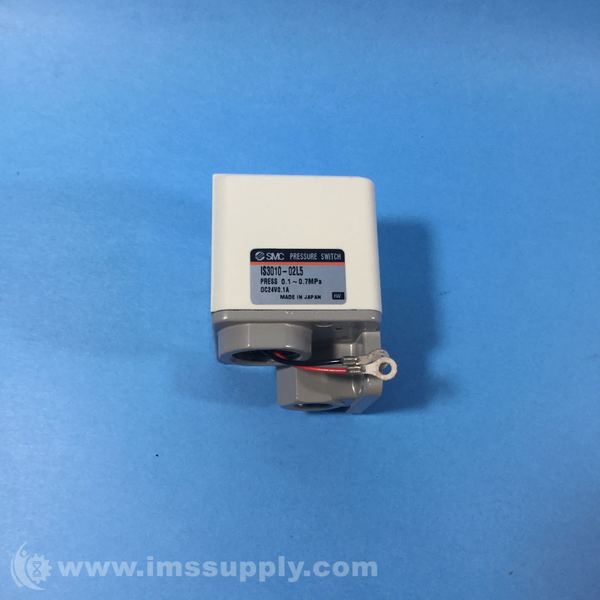

SMC IS3010-02L5 Pressure Switch
Pneumatic pressure switch with Rc 1/4 thread piping, micro load type switch, and LED indicator. Rated for 10 million cycles with set pressure range of 0.1 to 0.7 MPa.
Specifications
- Piping Method: Rc1/4 Thread
- Micro Switch Type: Micro load
- Min. Applicable Load: 5 VDC 1 mA
- Weight: 150 g
- Port Size: Rc1/4
- Indicator Light: LED/24 VDC
- Pressure Display: MPa
- Piping Type: Body Ported
- Display: Fixed SI Unit
- Proof Pressure: +1 MPa
- Operating Pressure Range: Maximum of +0.8 MPa
- Operating Temperature Range: -5 to +60 degrees C
- Standards Met: CE, JIS
- Hysteresis: 0.05 MPa
- Overall Width: 58 mm
- Overall Height: 48 mm
- Fluid Compatibility: Air, Inert Gases
- Overall Length: 70 mm
- Port 1 Size/Type: 1/4 BSPT
- Series: IS3000
