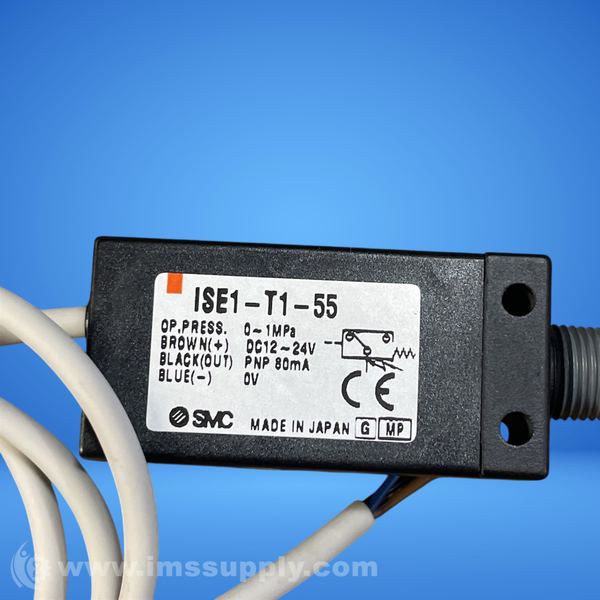

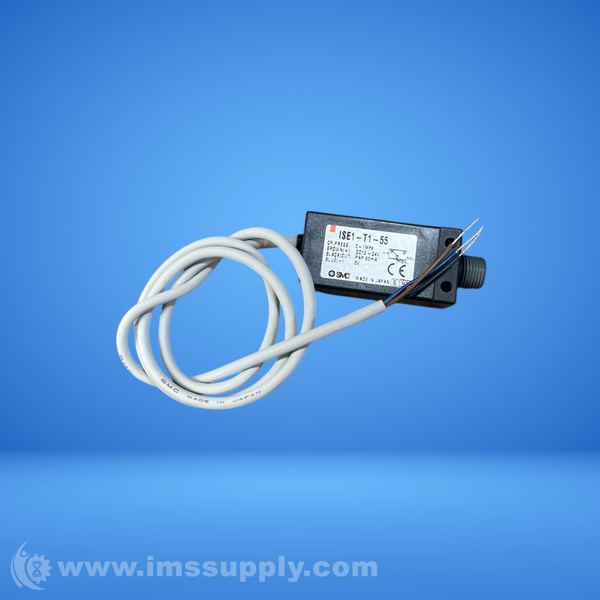

SMC ISE1-T1-55 PRESSURE SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ISE1-T1-55
IMS Product Code: 2169422
Packaging: Sold Individually
Description:
SMC ISE1-T1-55 Pressure Switch
Digital pressure switch for monitoring non-corrosive, non-flammable gas pressure with digital output and optional analog voltage output.
Specifications
- Rated pressure range/Set pressure range: 0 to 1 MPa, -0.1 to 0 MPa
- Proof pressure: 1.5 MPa
- Fluid: Air/Non-corrosive, non-flammable gas
- Power supply voltage: 12 to 24 VDC �10%, Ripple (P-P)10% or less (With power supply polarity protection)
- Current consumption: 1 output: 17 mA or less at 24 VDC, 2 output: 25 mA or less at 24 VDC
- Response time: 5 ms or less
- Repeatability: �1% F.S. or less
- Resistance: IP40
- Temperature characteristics (Based on 25C): Operating: 0 to 60C, Stored: -10 to 60C (With no condensation and no freezing)
- Port size: NPTF 1/8, M5 x 0.8
- Mass: 40 g (Including 0.6 m-Long lead wire)
- Lead wire: Oil-resistant vinyl cabtire code 3 cores, �3.4, Cross section: 0.2 mm�, Insulator O.D.: 1.1 mm
- Output specification: PNP open collector 1 output, w/o analog output
- Wiring specification: Grommet Lead Wire 0.6m

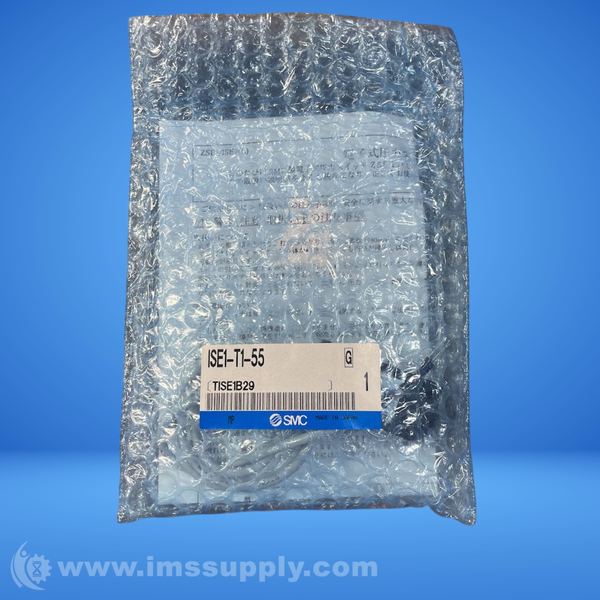

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
