SMC ISE3-T1-21 NPN PRESSURE SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ISE3-T1-21
IMS Product Code: 2123867
Packaging: Sold Individually
Description:

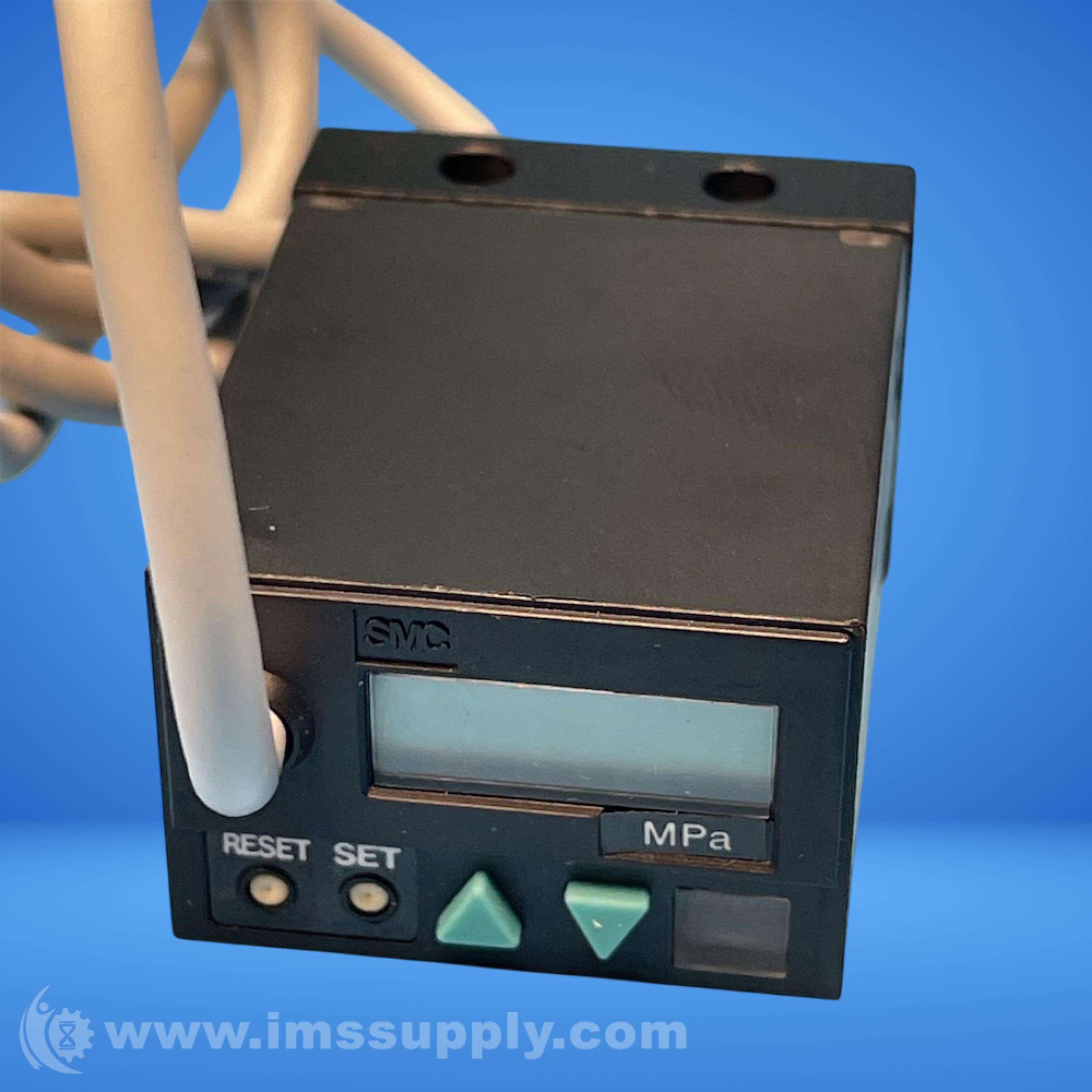

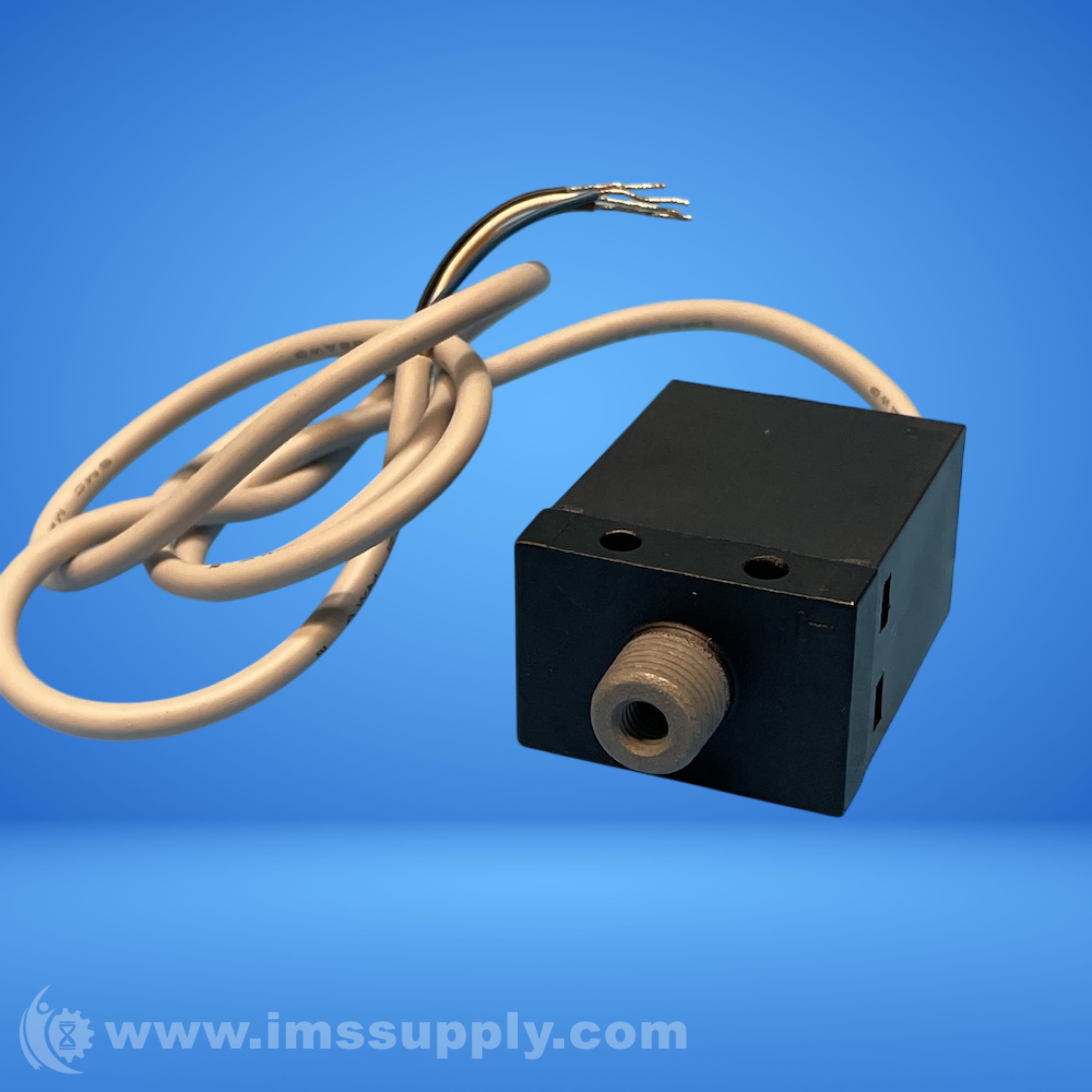

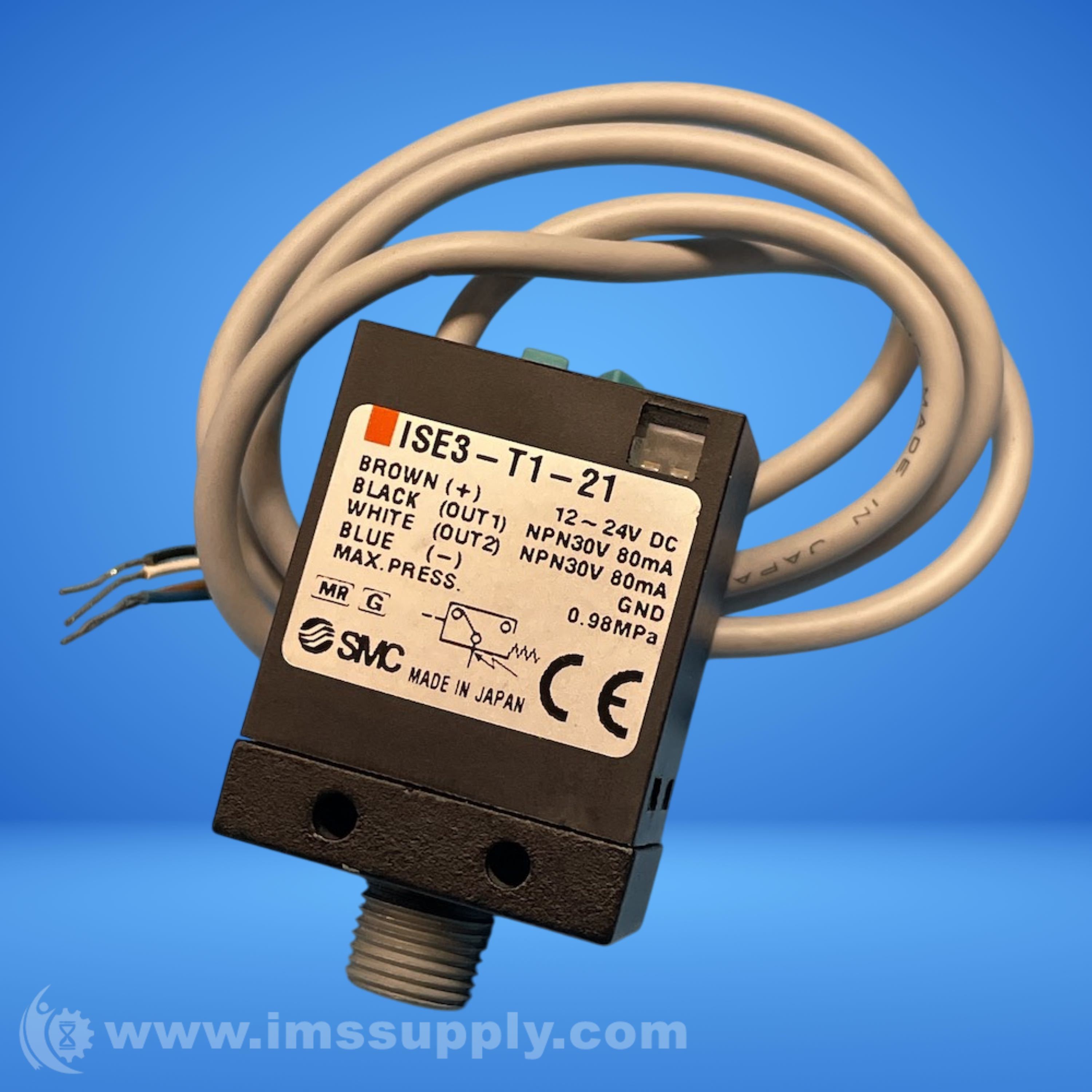

SMC ISE3-T1-21 NPN Pressure Switch
Digital pressure switch with LCD readout for positive pressure applications.
Specifications
- Series: ISE3
- Switch Action: NPN (2 Output)
- Piping Type: Body Ported
- Electrical Connection: Free Cable Ends
- Maximum Load Current: 80 mA
- Maximum Load Voltage: 30 V
- Operating Pressure Range: 0 to +0.98 MPa
- Operating Temperature Range: 0 to +60 degrees C
- Standards Met: CE
- Overall Width: 30 mm
- Overall Height: 20.5 mm
- Overall Length: 49 mm
- Fluid Compatibility: Air, Non-Corrosive Gas
- Port 1 Size/Type: 1/8 NPT w/ M5 x 0.8 Female
- Port 2 Size/Type: M5x0.8 Female ISO Threaded
- Weight: 0.44092 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
