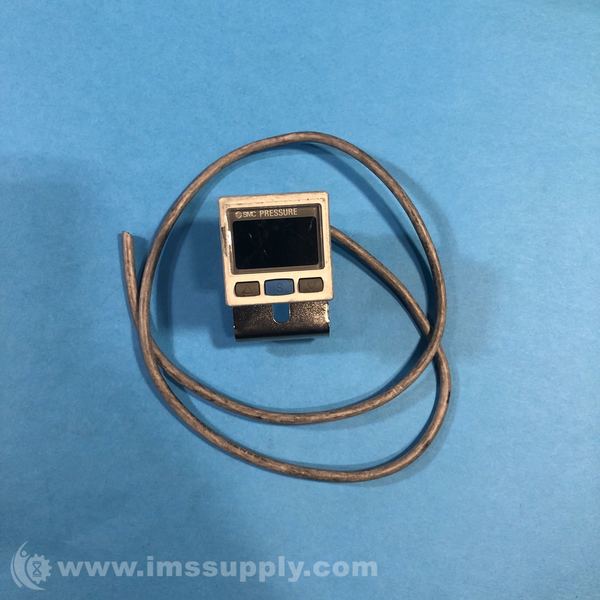

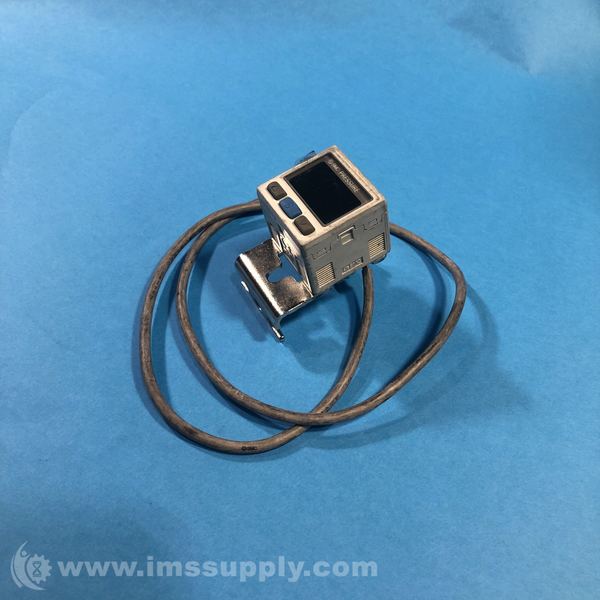

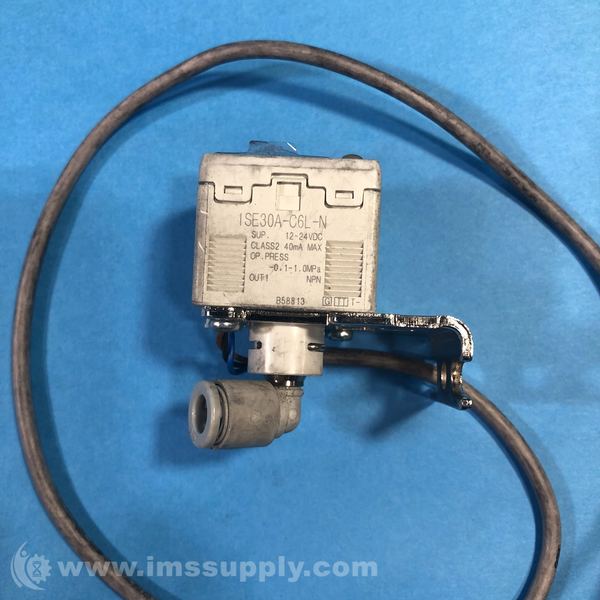

SMC ISE30A-C6L-N DIGITAL PRESSURE SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ISE30A-C6L-N
IMS Product Code: 1904149
Packaging: Sold Individually
Description:
SMC ISE30A-C6L-N Digital Pressure Switch
NPN open collector digital pressure switch with One-touch fitting ø6mm and operating pressure range -0.1 to 1.0MPa.
Specifications
- Rated pressure range: -0.100 to 1.000 MPa
- Set pressure range: -0.105 to 1.050 MPa
- Withstand pressure: 1.5 MPa
- Minimum unit setting: 0.001 MPa
- Voltage: 12-24 VDC
- Current Consumption: 40mA or less
- Output: NPN open collector, 1 output
- Switch Voltage: 28V Max, 80mA Max
- Piping: Elbow Type, One-touch fitting ø6mm
- Operating Pressure: -0.1 to 1.0MPa
Used (Special):
Mounting bracket attached.
