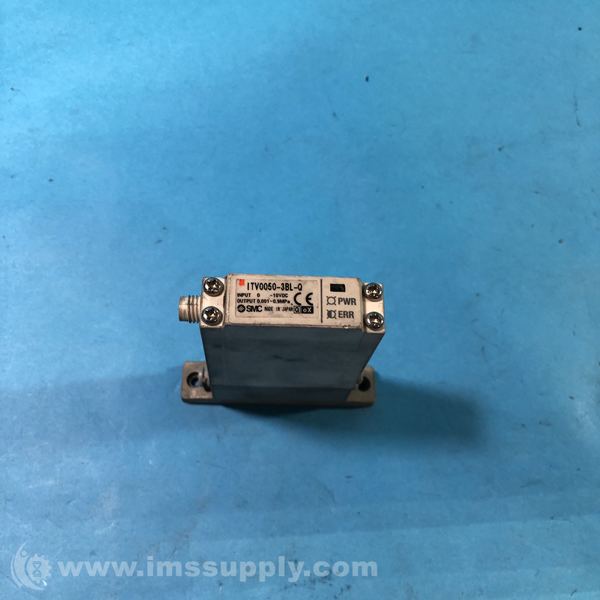

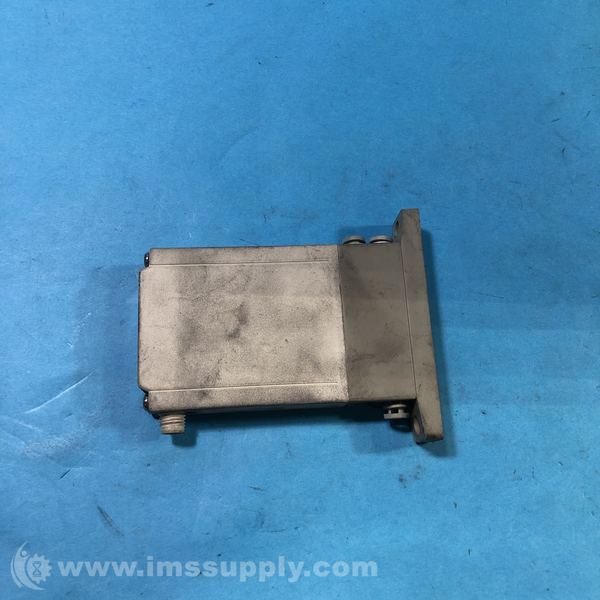

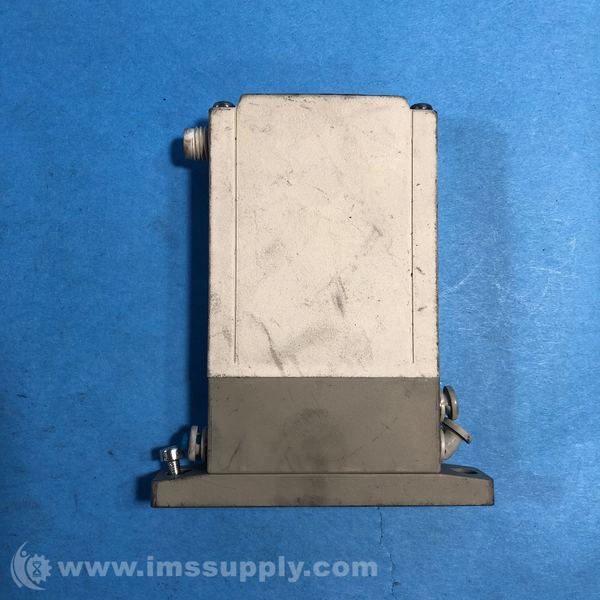

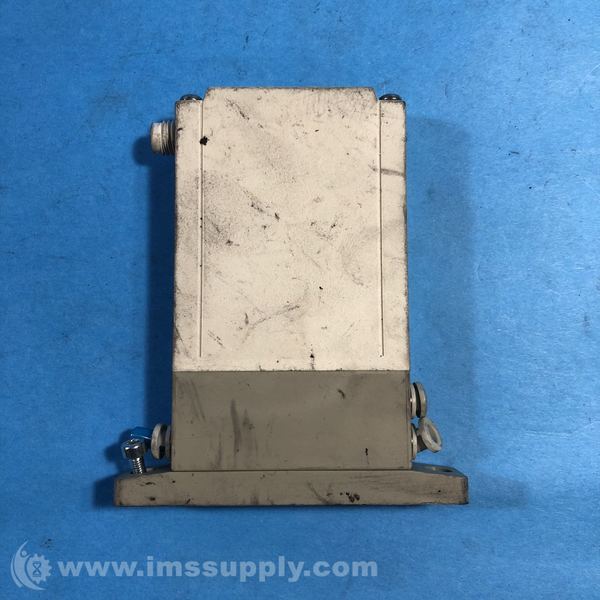

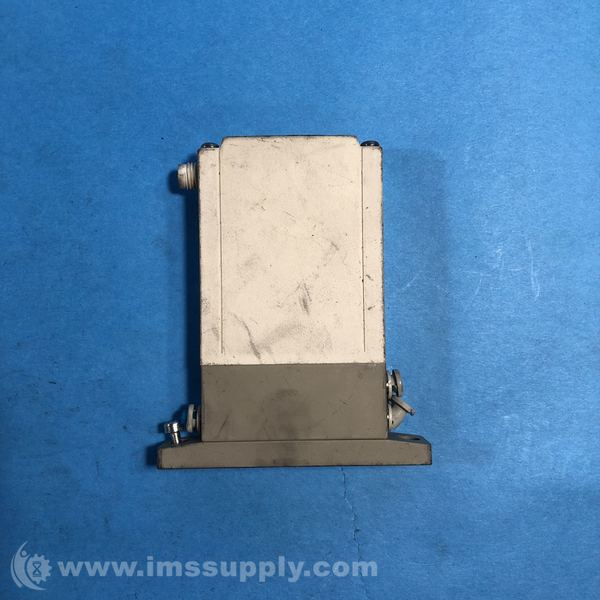

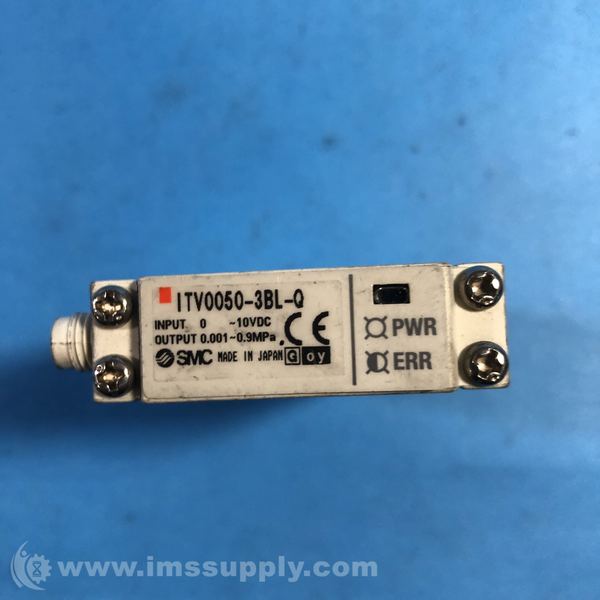

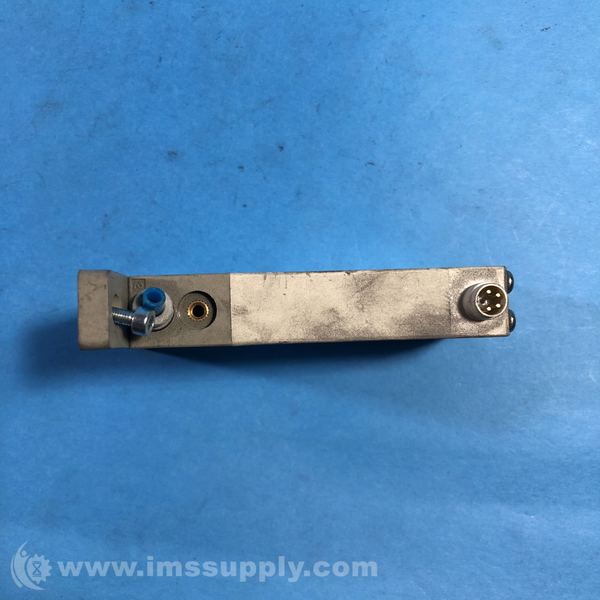

SMC ITV0050-3BL-Q ELECTRO-PNEUMATIC REGULATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ITV0050-3BL-Q
IMS Product Code: 1903717
Packaging: Sold Individually
Description:
SMC ITV0050-3BL-Q Electro-Pneumatic Regulator
Electro-Pneumatic Regulator
Specifications
- Model: ITV0050-3BL-Q
- Minimum supply pressure: Set pressure +0.1 MPa
- Maximum supply pressure: 1.0 MPa
- Set pressure range: 0.001 to 0.9 MPa
- Maximum flow rate: 6 l/min(ANR) (Supply pressure: 0.6 MPa)
- Power supply: 24 VDC ±10%, 12 to 15 VDC
- Input signal: 0 to 5 VDC, 0 to 10 VDC, 4 to 20 mA DC, 0 to 20 mA DC
- Input impedance: Approximately 10 kO
- Output signal: 1 to 5 VDC (Load impedance: 1 kO or more)
- Linearity: Within ±1% (Full span)
- Hysteresis: Within 0.5% (Full span)
- Repeatability: Within 0.2% (Full span)
- Sensitivity: Within ±0.5% (Full span)
- Temperature characteristics: Within ±0.12% (Full span)/degrees C
- Operating temperature range: 0 to 50 degrees C (No condensation)
- Enclosure: Equivalent to IP65
- Connection type: Built-in One-touch fittings
- Connection size: ø4, ø5/32", ø6, ø1/4"
- Weight: 100 g or less (without option)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 13 In Stock
