SMC ITV0050-3BS ELECTRO-PNEUMATIC REGULATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ITV0050-3BS
IMS Product Code: 1903701
Packaging: Sold Individually
Description:

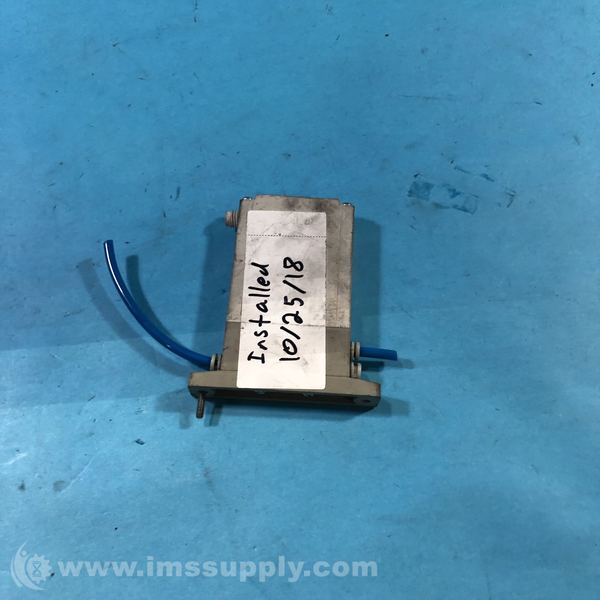

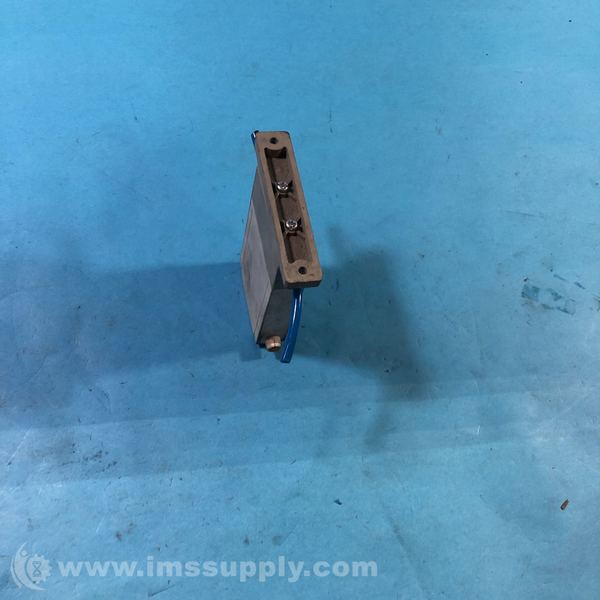

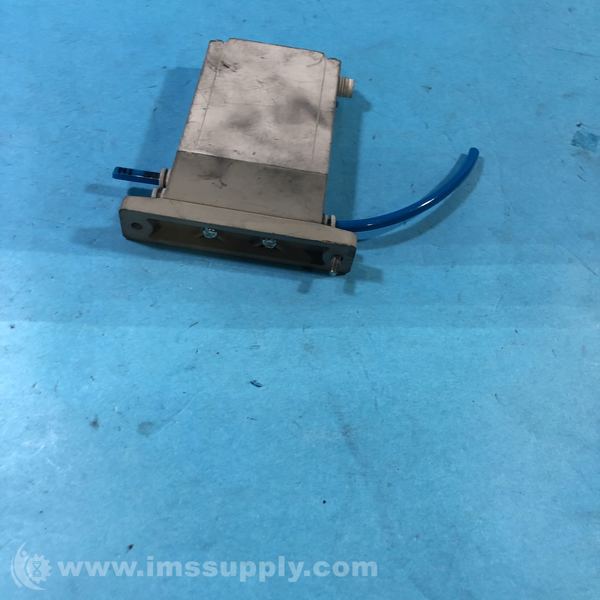

SMC ITV0050-3BS Electro-Pneumatic Regulator
Electro-pneumatic regulator controlling air pressure proportionally to an electrical signal. Compact and lightweight design with LED display and IP65 equivalent enclosure.
Specifications
- Series: ITV
- Type: Electro-Pneumatic Regulator
- Power Supply: 24 VDC ±10%, 12 to 15 VDC
- Input Signal: 0 to 5 VDC, 0 to 10 VDC, 4 to 20 mA DC, 0 to 20 mA DC
- Output Signal: 1 to 5 VDC (Load impedance: 1 k or more)
- Set Pressure Range: 0.001 to 0.9 MPa
- Maximum Supply Pressure: 1.0 MPa
- Maximum Flow Rate: 6 l/min(ANR) (Supply pressure: 0.6 MPa)
- Linearity: Within ±1% (Full span)
- Repeatability: Within 0.2% (Full span)
- Operating Temperature Range: 0 to 50°C (No condensation)
- Enclosure: Equivalent to IP65
- Connection Type: Built-in One-touch fittings
- Connection Size: ø4, ø5/32", ø6, ø1/4"
- Weight: 100 g or less (without option), 360 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
