SMC JA10-4-070 FLOATING JOINT
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: JA10-4-070
IMS Product Code: 1926578
Packaging: Sold Individually
Description:

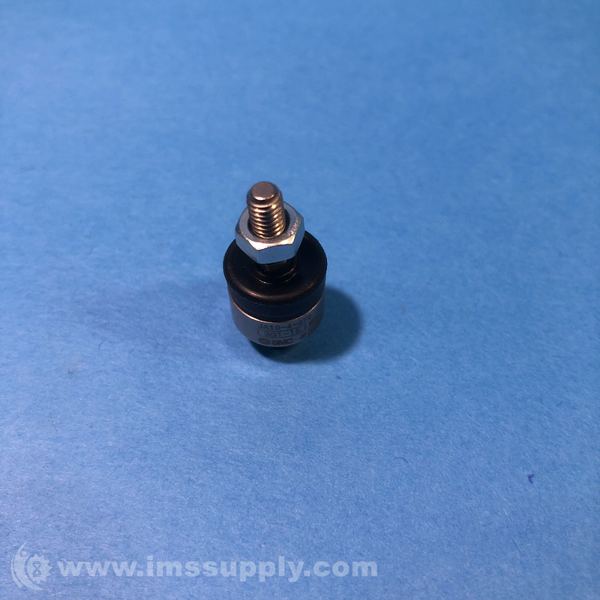

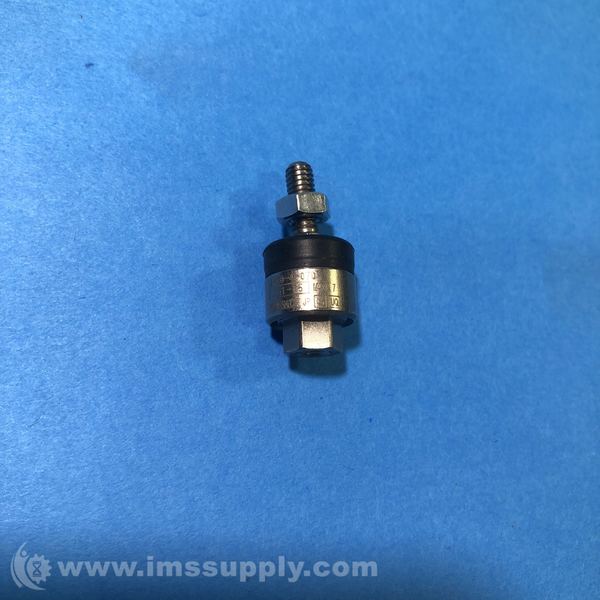

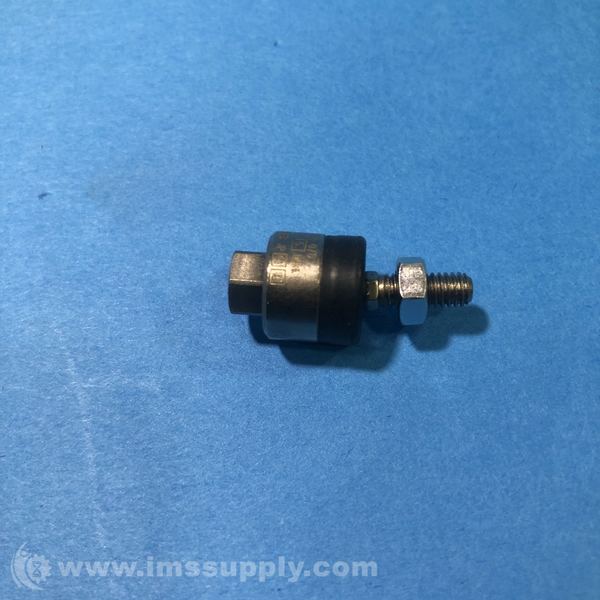

SMC JA10-4-070 Floating Joint
Pneumatic actuator floating joint compensating for angular, lateral, or parallel misalignment. Made of brass with M4 x 0.7 thread size, fitting 10 mm bore diameter.
Specifications
- Body Material: Brass
- Thread Size: M4 x 0.7
- Fits Bore Diameter: 10 mm
- Overall Width: 12 mm
- Overall Height: 26 mm
- Weight: 0.01 kg
- Rotation Angle: ±5 degrees
- Series: JA
- System of Measurement: Metric
- Includes: Rod End Nut
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 50 minutes.
