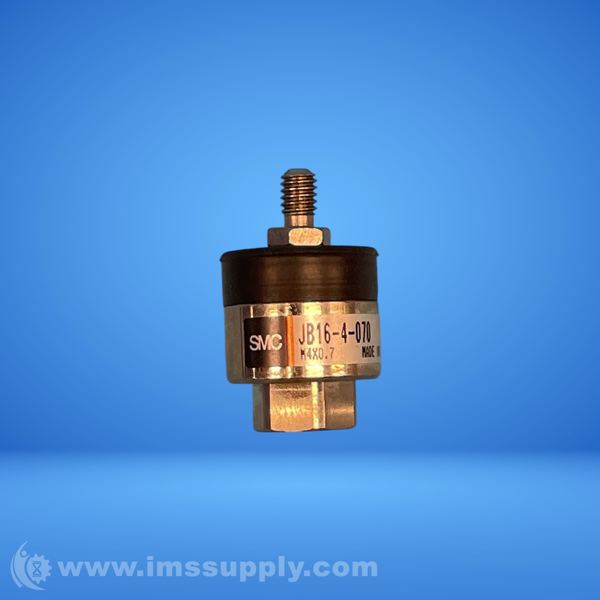

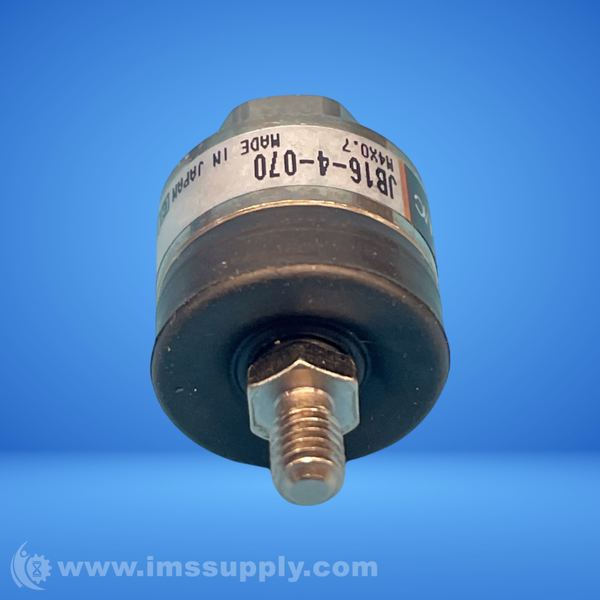

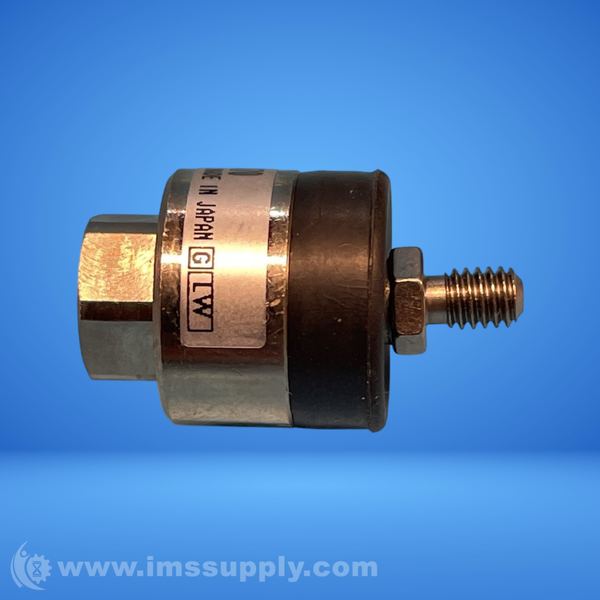

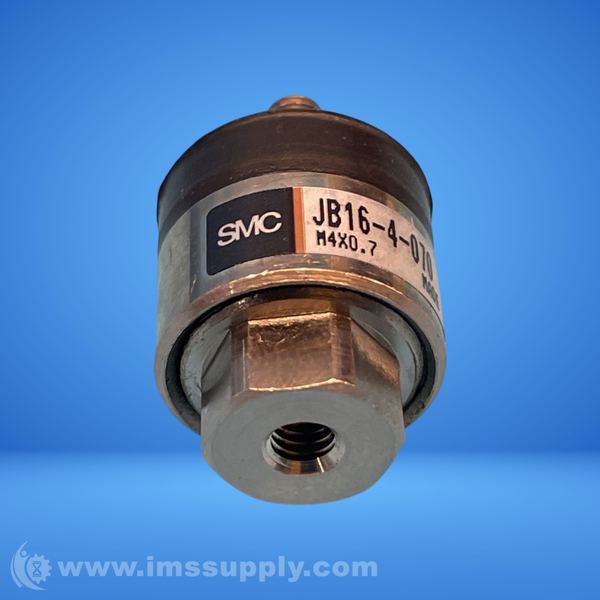

SMC JB16-4-070 FLOATING JOINT
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: JB16-4-070
IMS Product Code: 1217576
Packaging: Sold Individually
Description:
SMC JB16-4-070 Floating Joint
Pneumatic actuator floating joints compensate for angular, lateral, or parallel misalignment of air cylinders in automated systems. They reduce the need for centering or a high level of machining accuracy during assembly and installation.
Specifications
- Connecting Thread Nominal M: 16
- Connecting Thread Nominal p: 4
- Body Material: Brass
- Thread Size: M4 x 0.7
- Fits Bore Diameter: 16 mm
- Overall Width: 16 mm
- Overall Height: 26.5 mm
- Weight: 0.02 kg
- System of Measurement: Metric
- Country of Origin: Japan
- Series: JB
- Allowable Misalignment U: 0.70
- Applicable cylinder bore size: 16
- Applicable cylinder nominal thread: M16×1.5
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
