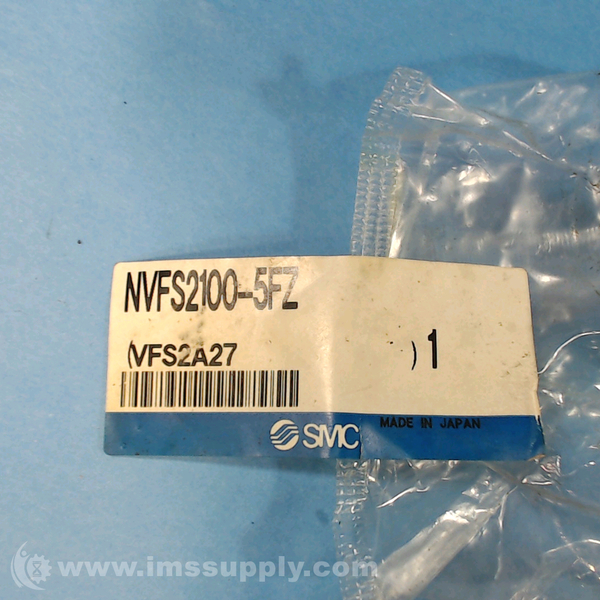

SMC NVFS2100-5FZ SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NVFS2100-5FZ
IMS Product Code: 1730492
Packaging: Sold Individually
Description:
SMC NVFS2100-5FZ Solenoid Valve
SMC NVFS2100-5FZ is a solenoid valve from the VFS2000 series. It is a body-ported, 5-port, 2-position valve with a single solenoid and piloted solenoid actuation. The valve is made of aluminum and has a non-locking push manual operation type.
Specifications
- Series: VFS2000
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Flow Coefficient Cv: 0.83 Cv
- Flow Direction: 4-Way
- Manual Operation Type: Non-Locking Push
- Maximum Operating Pressure: 101 psi
- Number Of Solenoids: Single
- Operating Medium: Air, Inert Gas
- Operating Temperature Range: 14 to 140 degrees F
- Overall Height: 73 mm
- Overall Length: 117.5 mm
- Overall Width: 43 mm
- Piping Type: Body Ported
- Port Sizes: 1/4 NPT
- Response Time: 15 ms
- Seal Material: Metal
- Solenoid Allowable Voltage Fluct: -15 to +10 percent
- Solenoid Coil Insulation: Class B
- Solenoid Electrical Entry: Plug-in Conduit Terminal
- Solenoid Power Consumption: 2.04 W
- Solenoid Supply Voltage: 24 V dc
- Standards Met: ISO VG32, JIS B 8375, JIS B 8375-1981, JIS C 0920, JIS C 4003
- Valve Function: Spool
- Country/Region of Manufacture: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
