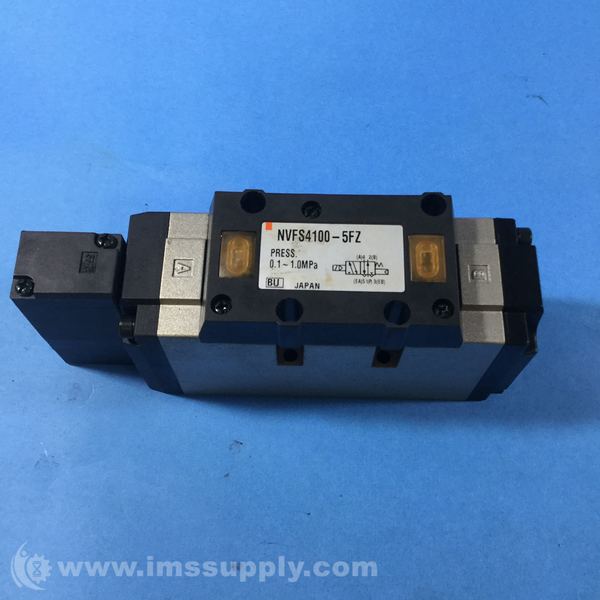

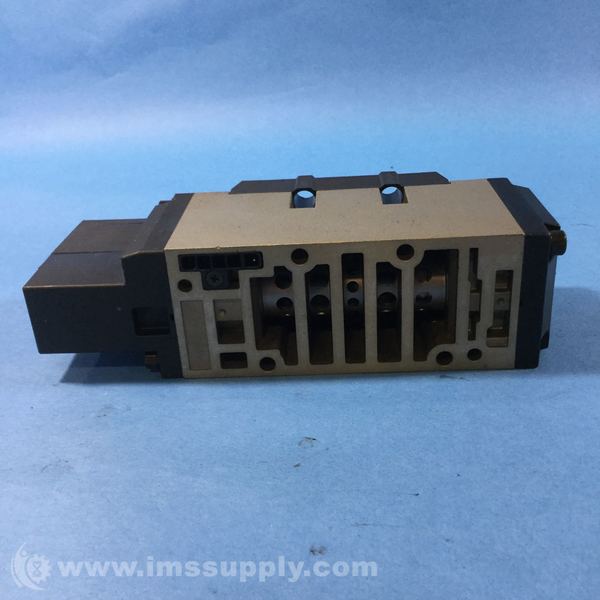

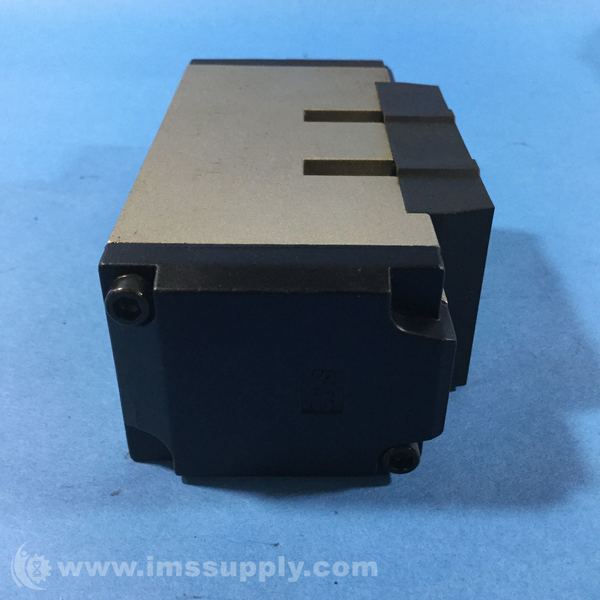

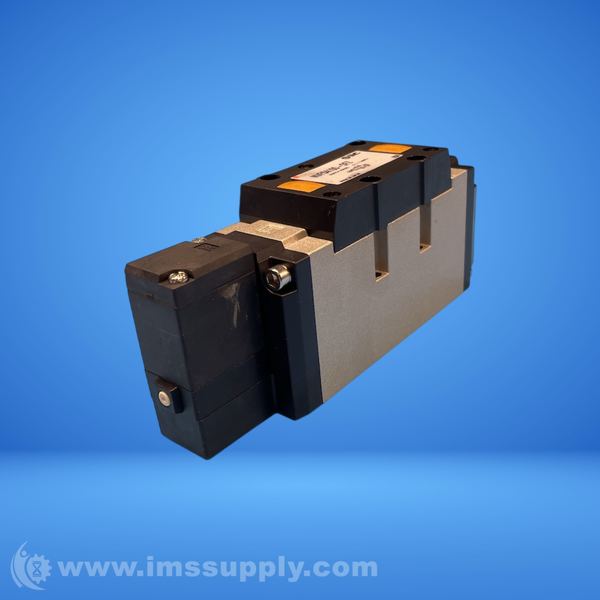

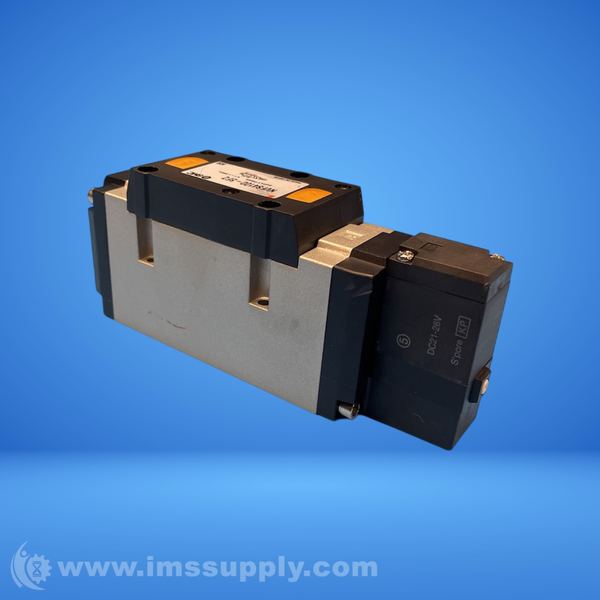

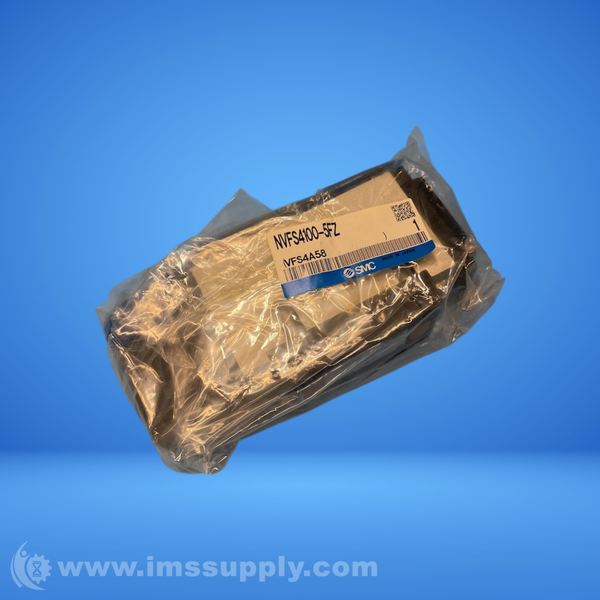

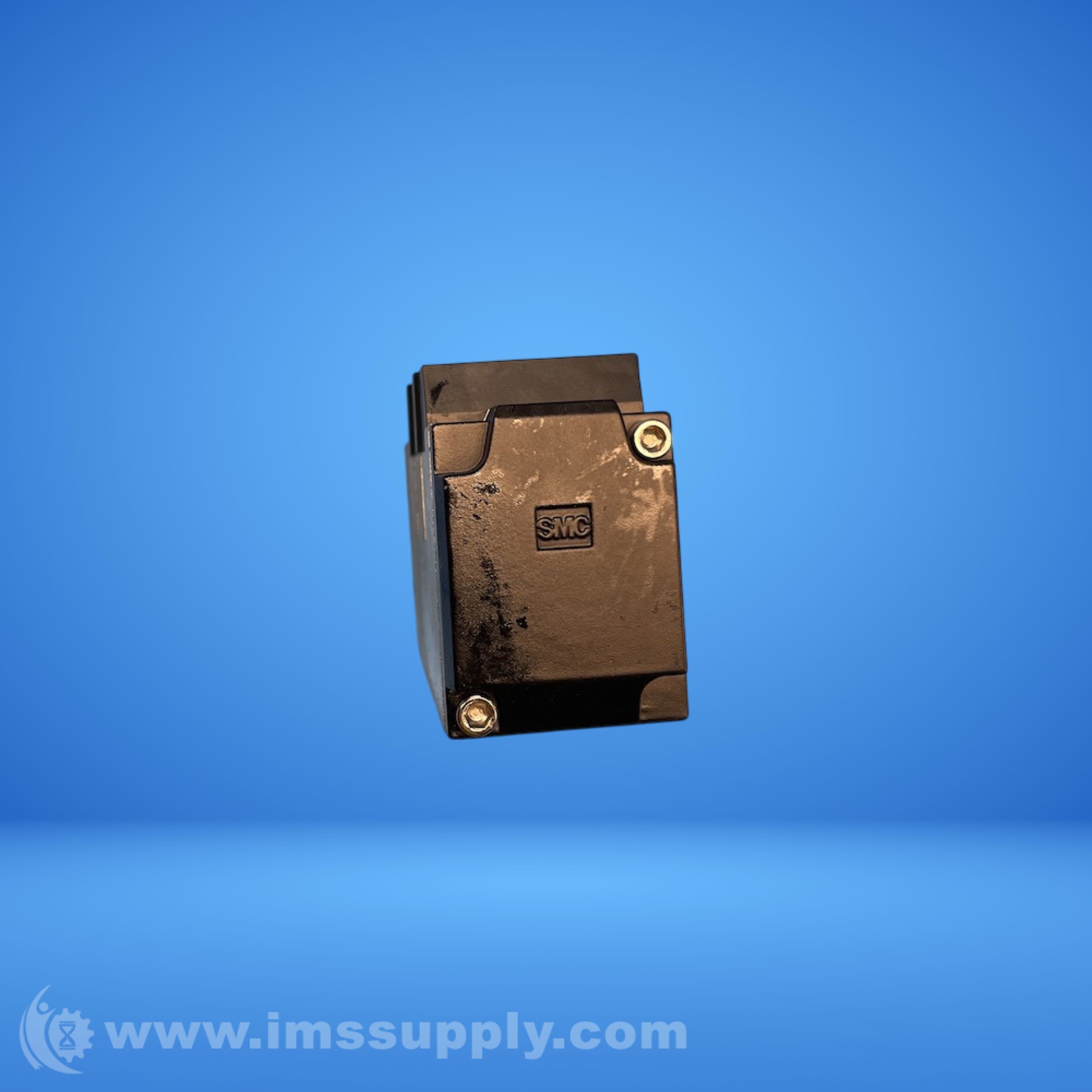

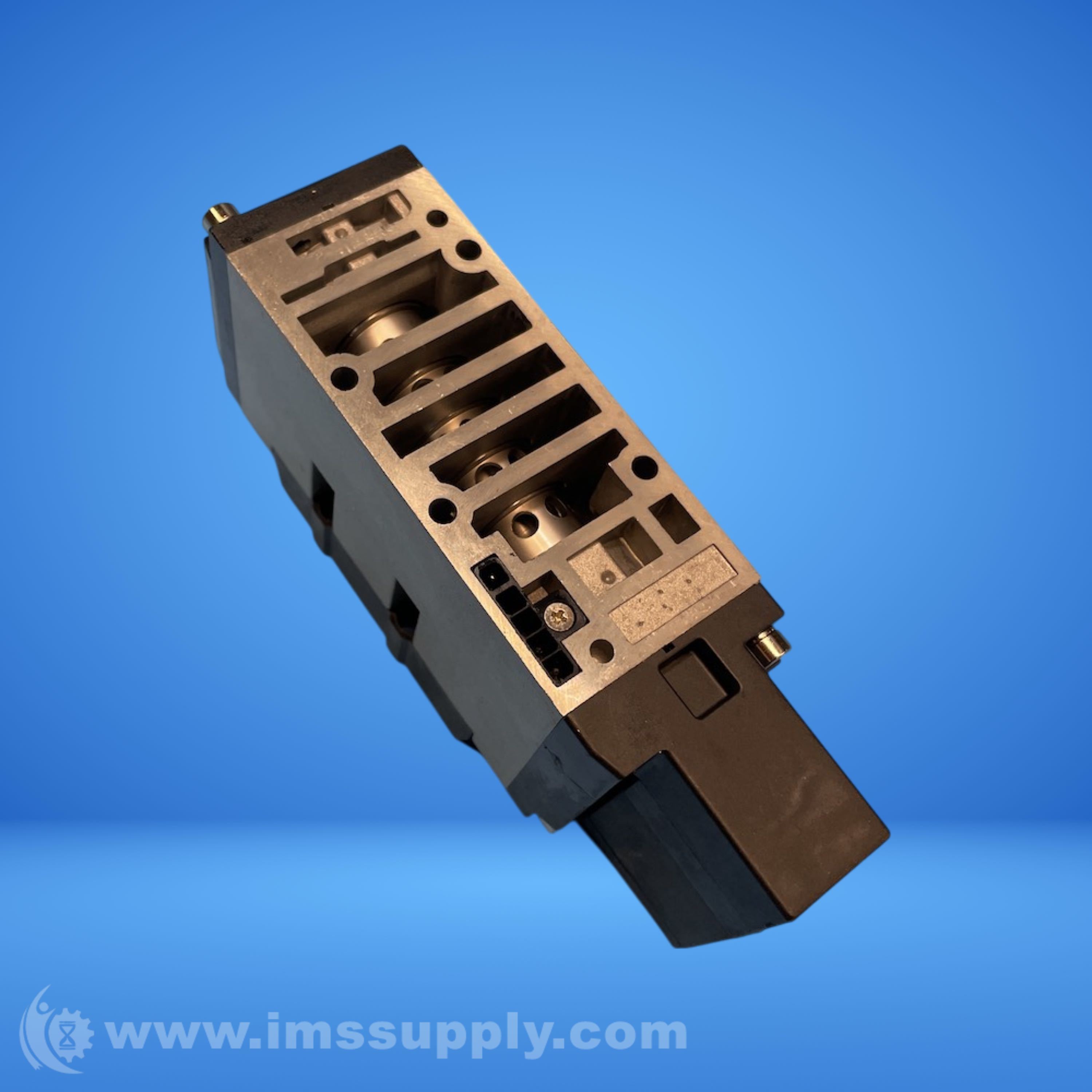

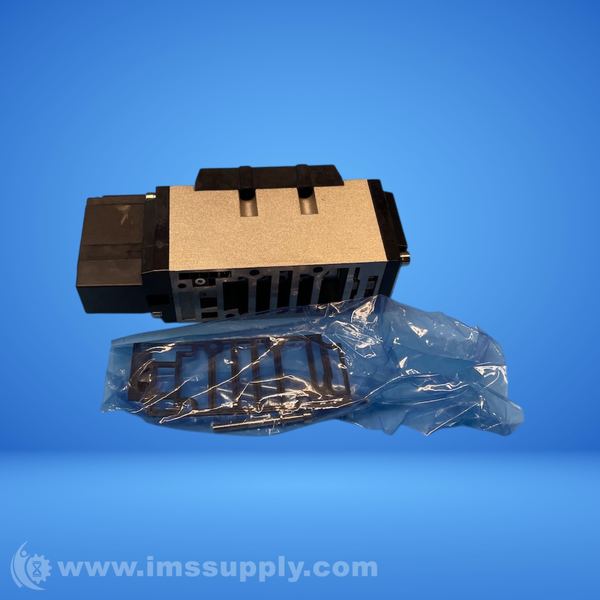

SMC NVFS4100-5FZ 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NVFS4100-5FZ
IMS Product Code: 1787619
Packaging: Sold Individually
Description:
SMC NVFS4100-5FZ 5-Port Solenoid Valve
5-port pilot solenoid valve with metal seals, base mounted or body ported type manifolds. Operates on 24VDC.
Specifications
- Series: VFS4000
- Weight: 1.41095 lb
- Valve Operation: Solenoid
- Fluid: air and inert gas
- Operating Pressure: 0.1MPa to 1.0MPa
- Effective Area (Cv): 1.7 to 3.6
- Coil Rated Voltage: 24VDC
- Response Time: 55 or less ms
- Ambient/Fluid Temp: -10 to 60 C
- Power: 24 VDC
- Pressure: 0.1-1 MPa
- Additional Information: 2 Position
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
