SMC NVSA4244-01N AIR PILOTED VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NVSA4244-01N
IMS Product Code: 1431143
Packaging: Sold Individually
Description:

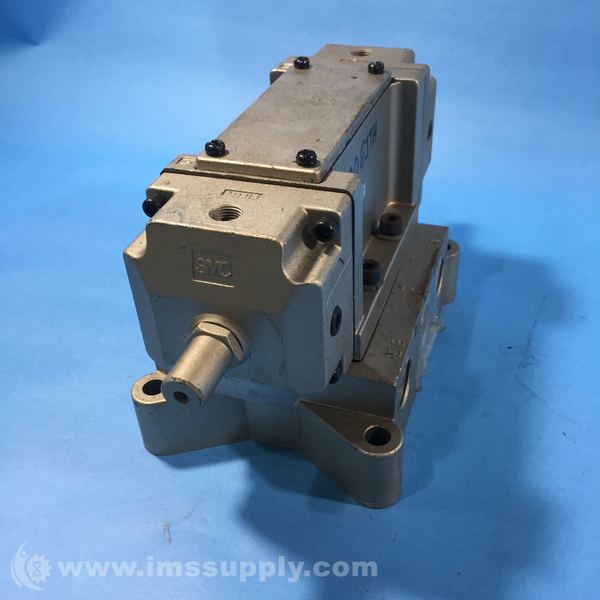

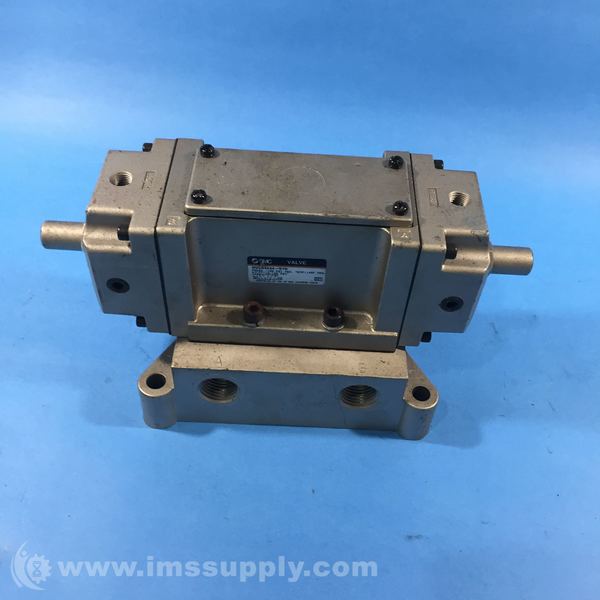

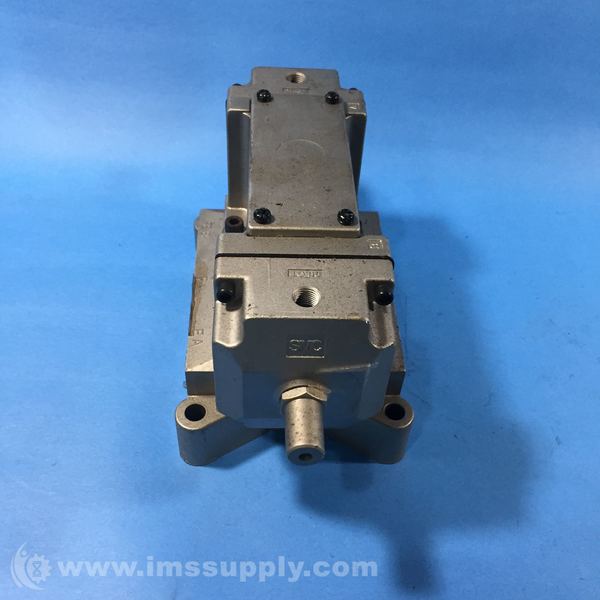

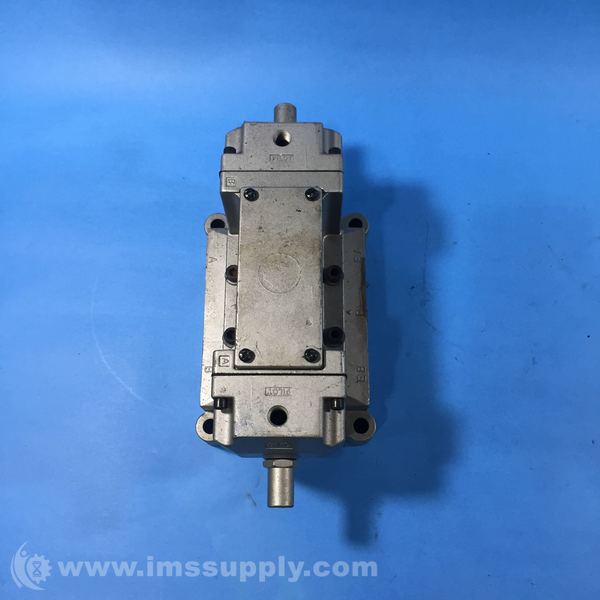

SMC NVSA4244-01N Air Piloted Valve
Air Piloted Valve - Body Ported, 5 Port, 2 Position, Double Pilot
Specifications
- Series: VSA AIR OPERATED VALVE
- Piping Type: Body Ported
- Flow Direction: 4-Way
- Number of Pilots: Double Pilot
- Flow Coefficient Cv Flow Factor Kv: 3.78 Cv
- Operating Medium: Air
- Operating Pressure Range: Maximum of +300 psig
- Maximum Operating Pressure: +300 psig
- Port 1 Size/Type: 1/2 NPTF
- Seal Material: Nitrile
- Body Material: Aluminum
- Overall Length: 188 mm
- Overall Height: 183 mm
- Weight: 1.18186 lb
- Valve Operation: Air-Operated
- Suitable Media: Air
- Actuation: Double Pilot, Detented

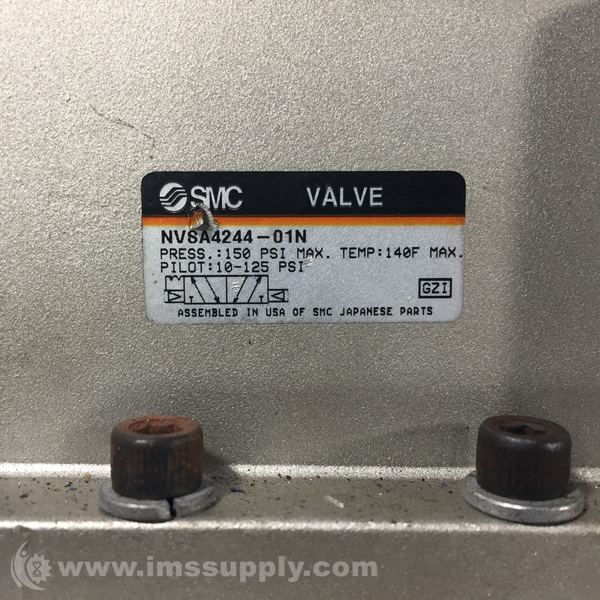

- Supply Pressure: 150PSI Max
- Pilot Pressure: 10-125PSI
- Ports:Sub-Plate: 1/2in NPT
- Ports:Pilot: 1/8in NPT
