SMC PF2A311-A DIGITAL FLOW SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: PF2A311-A
IMS Product Code: 2122235
Packaging: Sold Individually
Description:

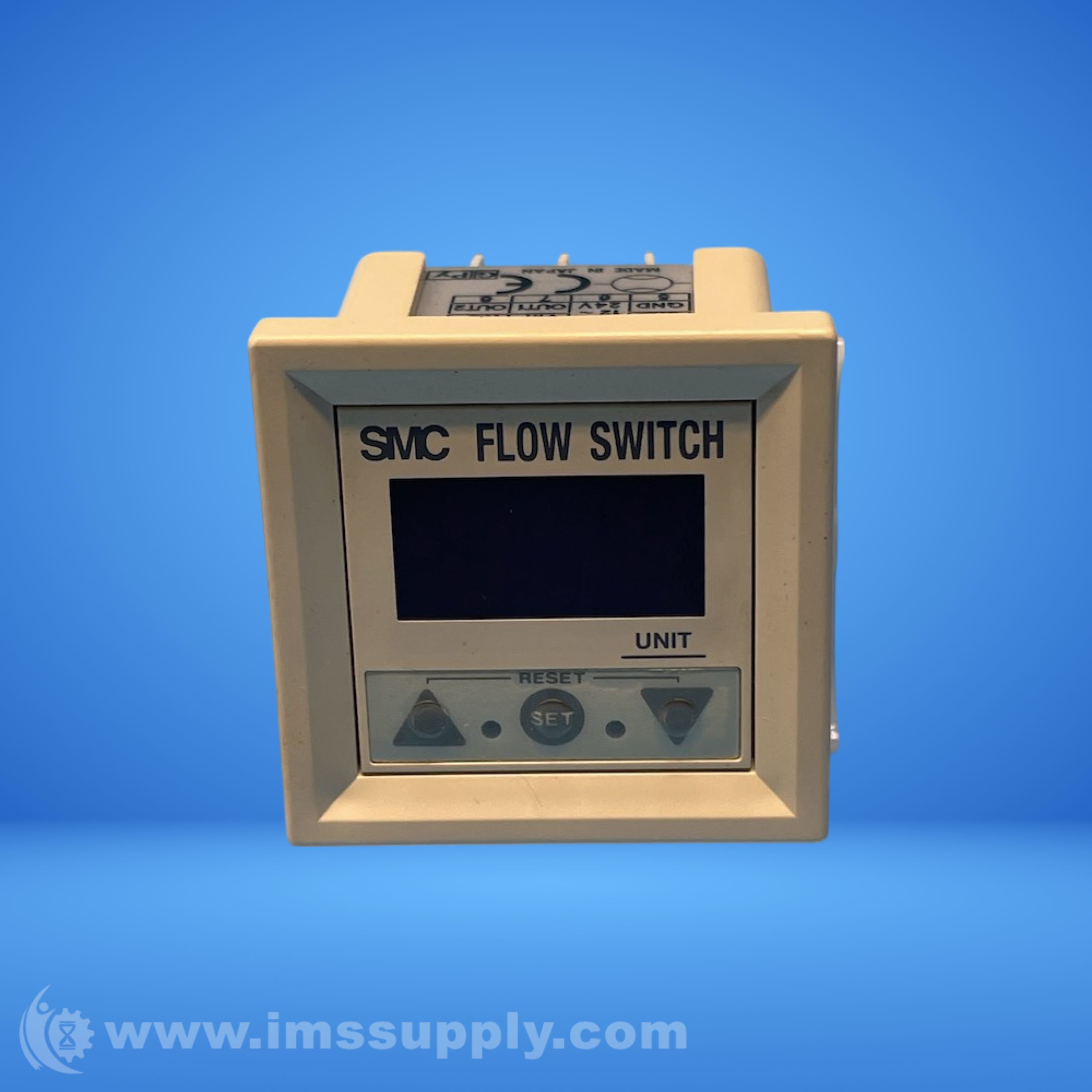

SMC PF2A311-A Digital Flow Switch
SMC PF2A311-A is a digital flow switch with remote display capability, designed for monitoring air flow. It features PNP open collector output, 3-digit 7-segment LED display, and operates within a temperature range of 0 to 50 degrees Celsius.
Specifications
- Flow Rate Measurement Range: 5 to 105 l/min
- Set Flow Rate Range: 5 to 105 l/min
- Minimum Set Unit: 1 l/min
- Display Units: l/min, CFM x 10^-1
- Accumulated Flow Range: 0 to 999999 l
- Linearity: ±5% F.S. or less
- Repeatability: ±1% F.S. or less
- Temperature Characteristics: ±1% F.S. or less (15 to 35°C, based on 25°C), ±2% F.S. or less (0 to 50°C, based on 25°C)
- Current Consumption: 60 mA or less
- Weight: 45 g

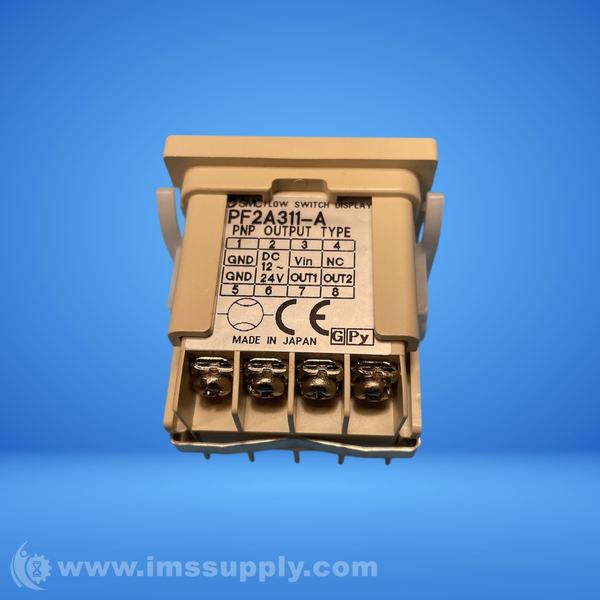

- Output: PNP open collector
- Power Supply Voltage: 12 to 24 VDC
- Response Time: 1 sec. or less
- Operating Temperature: 0 to 50°C
- Series: PF2A
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
