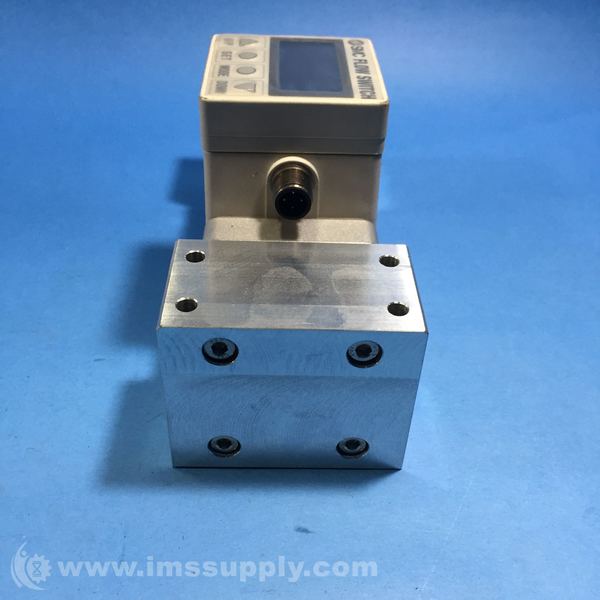

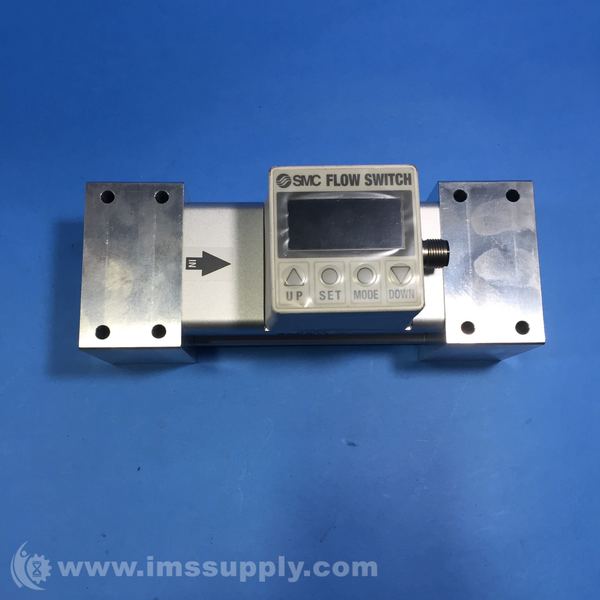

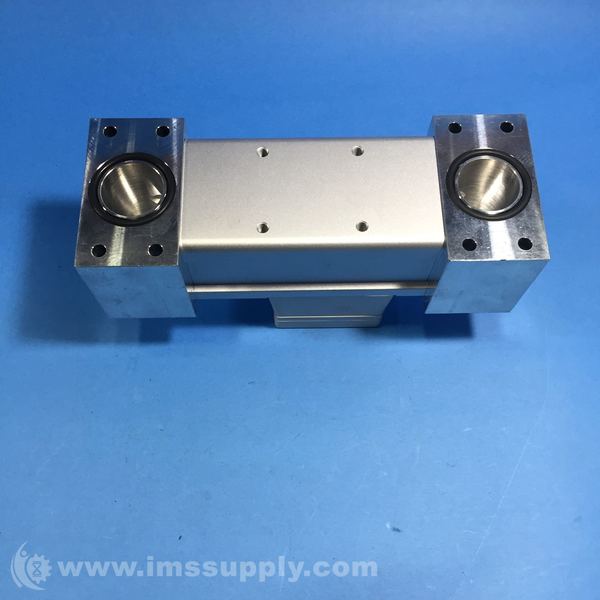

SMC PF2A703H-10-68-M DIGITAL FLOW SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: PF2A703H-10-68-M
IMS Product Code: 1440126
Packaging: Sold Individually
Description:
SMC PF2A703H-10-68-M Digital Flow Switch
Digital flow switch with integrated sensor, high flow rate, and integrated display type.
Specifications
- Measured fluid: Dry air, Nitrogen
- Detection type: Heater type
- Rated flow range: 150 to 3000 l/min
- Minimum set unit: 5 l/min
- Display units: Real-time flow rate, Accumulated flow
- Operating pressure range: 0.1 to 1.5 MPa
- Proof pressure: 2.25 MPa
- Pressure loss: 20 kPa (at maximum flow rate)
- Accumulated flow range: 0 to 9,999,999,999 l
- Linearity: ±1.5% F.S. or less (0.7 MPa, at 20C)
- Repeatability: ±1.0% F.S. or less (0.7 MPa, at 20C), ±3.0% of F.S. or less in case of analog output
- Pressure characteristics: ±1.5% F.S. or less (0.1 to 1.5 MPa, based on 0.7 MPa)
- Temperature characteristics: ±2.0% F.S. or less (0 to 50C, based on 25C)
- Output specifications: Switch output, Accumulated pulse output, Analog output
- Response time: 1 sec. or less
- Hysteresis: Hysteresis mode: Variable (can be set from 0); Window comparator mode: (can be set from 0 to 3% F.S.)
- Power supply voltage: 24 VDC (ripple ±10% or less)
- Current consumption: 150 mA or less
- Weight: 1.1 kg (without lead wire)
- Port size: 1"
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
