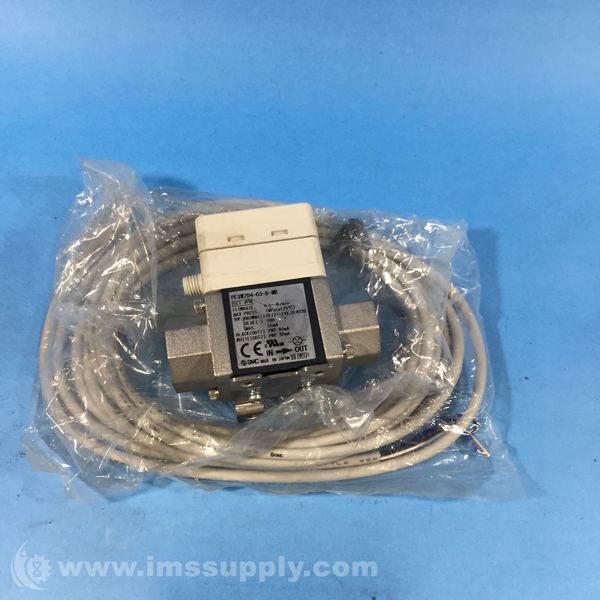

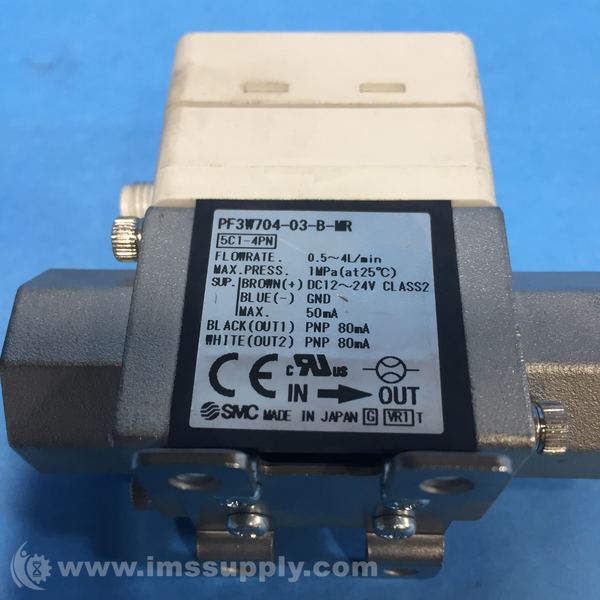

SMC PF3W704-03-B-MR DIGITAL FLOW SWITCH
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: PF3W704-03-B-MR
IMS Product Code: 1441198
Packaging: Sold Individually
Description:
SMC PF3W704-03-B-MR Digital Flow Switch
Digital flow switch for monitoring cooling or cleaning water flow. 3/8" Rc connection, 0.5-4L/min flow range, dual PNP output, M8 connector.
Specifications
- Series: IFW/PFW FLOW SWITCH
- Size: 3/8INCH PT VERSION
- Weight: 0.95532 lb
- Rated Flow Range: 04 (0.5 to 4L/min)
- Flow Adjustment Valve: None
- Thread: Rc
- Port Size: 03 (3/8)
- Output Specification: B (OUT1: PNP; OUT2: PNP)
- Temperature sensor: None
- Lead Wire: Lead Wire w/M8 Connector, 3m
- Unit Specification: M (Instantaneous Flow Rate: L/min; Accumulated Flow: L; Temp: degrees C)
- Bracket: R (Bracket)
- Calibration Certificate: None
- Made to Order: None
- Applicable fluid: deionized water, chemical, etc.
- Flow rate range: 0.5 to 4L/min
- Max Pressure: 1MPa (at 25 degrees C)
- Power Supply: DC12~24V CLASS2
- Max Current: 50mA
- Output1: PNP 80mA
- Output2: PNP 80mA
- Made In: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
