SMC PSE303-MLBC DIGITAL PRESSURE SENSOR CONTROLLER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: PSE303-MLBC
IMS Product Code: 1826166
Packaging: Sold Individually
Description:

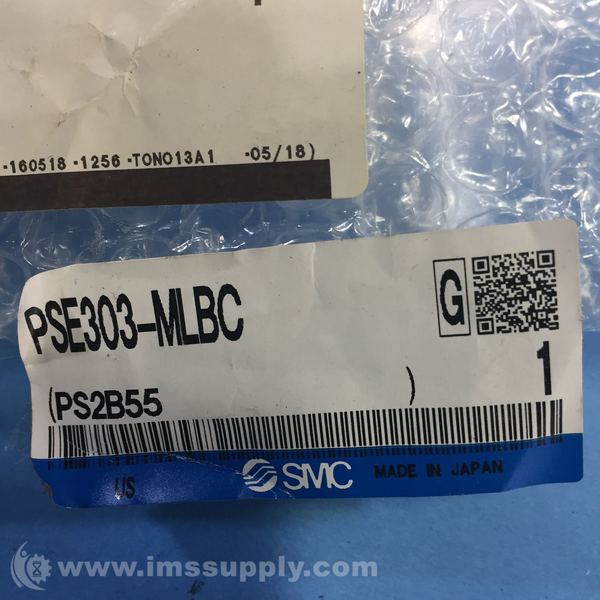

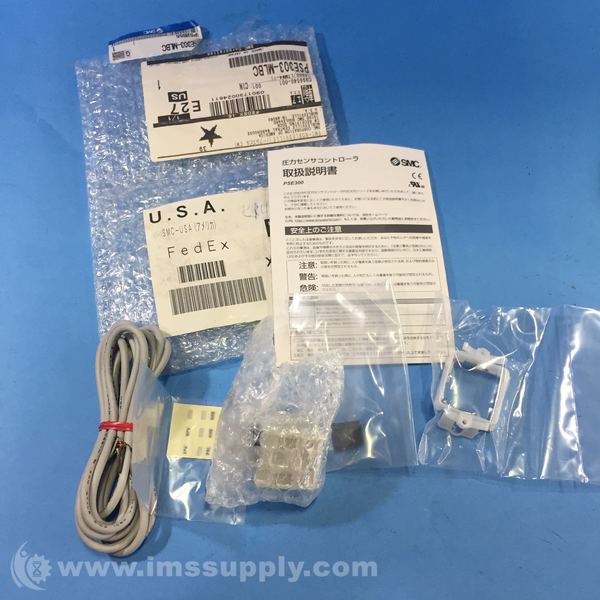

SMC PSE303-MLBC Digital Pressure Sensor Controller
The SMC PSE303-MLBC is a digital pressure sensor controller from the PSE300 series, featuring a remote display capability. It is designed for precise pressure control in various applications.
Specifications
- Series: PSE
- Response time: 1 ms or less
- Set pressure resolution: 1/1000
- Repeatability: ±0.1% F.S. or less
- Enclosure: IP40
- Display / Set pressure range: -101 to 101 kPa, -10 to 101 kPa, -0.1 to 1 MPa, -50 to 500 kPa, -0.2 to 2 kPa
- Power supply voltage: 12 to 24 V DC ±10%
- Current Consumption: 50 mA or less
- Switch output: NPN or PNP open collector output, 2 outputs
- Max Load Current: 80 mA
- Operating temperature range: 0 to 50°C
- Weight: 85 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
